MSI has been steadily expanding its footprint in the high-end PC component space, and they recently unveiled what might be one of the most interesting power supplies we have seen in years. While building a massive, high-wattage power supply is nothing new, doing something genuinely innovative with the platform is rare. MSI aims to tackle the industry-wide anxiety surrounding modern high-power graphics cards and the controversial 12V-2x6 (and previously 12VHPWR) connectors.

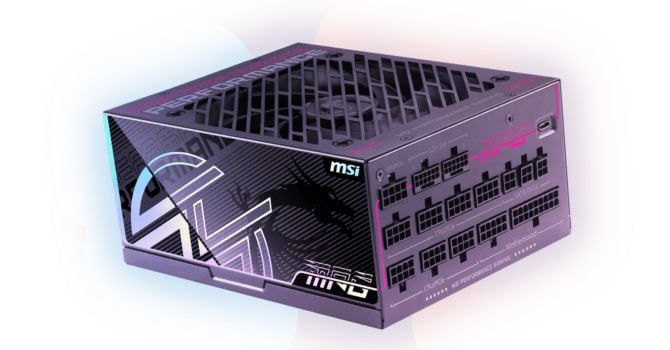

Today we are looking at their flagship offering, the MPG Ai1600TS. This is a 1600 W unit that carries an 80 Plus Titanium certification and features a heavy-duty C19 mains connector. Fully adhering to the ATX 3.1 and PCIe 5.1 standards, its main point of interest is GPU Safeguard+, which is an onboard MCU that monitors the current flowing through every individual pin of the two native 12V-2x6 connectors. Coming in a large 190 mm chassis, this unit is built for ultra high-end enthusiasts who demand immense, stable power and total peace of mind.
| Specifications | ||
|---|---|---|
| Model | MPG Ai1600TS PCIE5 | |
| AC Input | 100-240 V~, 15-10 A | |
| Frequency | 50-60 Hz | |
| +5V | 22.0 A | |
| +3.3 V | 22.0 A | |
| +5 V & +3.3 V Combined | 120 W | |
| +12V1 | 133.3 A | |
| Power Factor | Active | |
| -12 V | Not listed | |
| +5VSB | 3.0 A/15 W | |
| Maximum Power | 1600 W (115-240 V~)/1200 W (100-115 V~) | |
| Features | ||
|---|---|---|
| ATX12V Version | ATX 3.1 | |
| Efficiency | 80 Plus TITANIUM | |
| Dimensions | 150 × 190 × 86 mm | |
| PFC | Active | |
| Fan | 135 mm FDB | |
| Safety Features | OVP OCP OTP OPP SCP UVP SIP NLO | |
| Warranty | 12 Years | |
