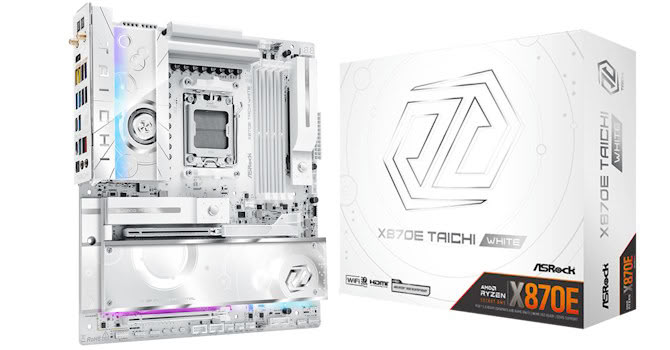

ASRock's Taichi motherboards have consistently offered great value, including premium features into a competitively-priced product and even stretching to EATX dimensions on occasions, still with a packed PCB. It's great to see a refreshed model and as far as we know, the ASRock X870E Taichi White is the first all-white Taichi board too.
Even more impressive is that the launch price is the same as its predecessor that we reviewed back in October 2024 at $450. Inflation aside, the new board comes with new features too including 10 Gbps Ethernet, a 512 Mbit/64 MB BIOS and of course one of the most extensive white color schemes we've seen on a motherboard.
As we've seen with other refresh motherboards recently, though, the fact the older models still exist, and for often significantly lower price tags, can be problematic when it comes to recommendations. That's likely to be the case here too with the original X870E Taichi currently available with change from $300. Let's dig a little deeper and see what the new Taichi board has to offer and how it performs.
| Specifications | |
|---|---|
| CPU Support: | AMD Socket AM5 Ryzen 7000, 9000 |
| Power Design: | CPU Power: 24-phase/Renesas R2209004/110 A SOC Power: 2-phase/Renesas R2209004/110 A MISC Power: 1-phase/Vishay SiC431A/80 A |
| Chipset: | AMD X870E |
| Integrated Graphics: | Supported 2 DisplayPort 1.4 via Type-C Alt Mode 1× HDMI 2.1 |
| Memory: | 4× DIMM, Support up to 256 GB DDR5-8200 (OC) |
| BIOS: | 512 Mbit (64 MB) AMI UEFI |
| Expansion Slots: | 1× PCIe Gen 5 x16 slot (x16, x8/x8, x8/x4/x4, x4/x4/x4/x4) 1× PCIe Gen 5 x16 slot (x8) |
| Storage: | 3× SATA 6 Gb/s 1× M.2 (PCIe Gen 5 x4) 3× M.2 (PCIe Gen 4 x4) |
| Networking: | 1× Marvell Aquantia AQC113 10 Gbps Ethernet 1× MediaTek MT7927 Wi-Fi 7 |
| Rear Ports: | BIOS Flashback button CMOS clear button 1× 10 Gbps Ethernet 1× HDMI 2.1 2× USB4 40 Gbps (Type-C) 5× USB 3.2 Gen 2 10 Gbps (Type-A) 3× USB 3.0 (Type-A) 2× USB 2.0 (Type-A) 2× Wi-Fi antenna connectors 2× Audio jacks 1× Optical S/PDIF Out port |
| Audio: | 1× Realtek ALC4082 Codec + ESS SABRE9219 DAC |
| Fan / Thermistor headers: | 8× 4-pin/3× 2-pin |
| Form Factor: | EATX Form Factor 12.0 × 10.5 in./30.5 × 26.7 cm |
| Exclusive Features: |
|
