ASRock is a household name in the motherboard and GPU markets, and they have recently expanded their "Steel Legend" ecosystem into the power supply space. Known for balancing rugged aesthetics with high-performance features, the Steel Legend series aims to offer enthusiast-grade power delivery without the premium tax often seen in the flagship market.

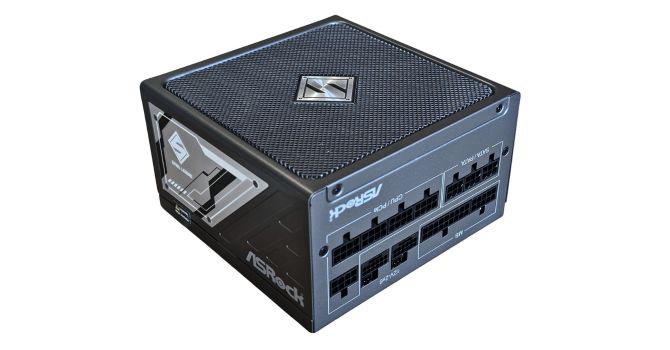

Today we are looking at their high-capacity offering, the Steel Legend SL-1200P. This is a 1200 W unit that carries an 80 Plus Platinum certification. It fully adheres to the ATX 3.1 and PCIe 5.1 standards, featuring the updated 12V-2x6 power connector. With a fully modular design and a compact 150 mm chassis, ASRock is clearly targeting users who need massive power for modern GPUs, without sacrificing case compatibility.
| Specifications | ||
|---|---|---|
| Model | SL-1200P | |
| Article no. | 90-UXS120-GFGABA | |
| EAN code | 4711581492745 | |
| Weight | 1.58 kg | |
| AC Input | 100-240 V~/15-7.5 A | |
| Frequency | 50–60 Hz | |
| +5V | 25 A | |
| +3.3 V | 25 A | |
| +5 V & +3.3 V Combined | 150 W | |
| +12V1 | 100 A | |
| Power Factor | Active ≥ 0.9 | |
| -12 V | 0.3 A/3.6 W | |
| +5VSB | 3.0 A/15 W | |
| Maximum Power | 1200 W | |
| Features | ||
|---|---|---|
| ATX12V Version | ATX 3.1 | |
| Efficiency | 80 Plus Platinum | |
| Dimensions | 150 × 150 × 86 mm (D × W × H) | |
| PFC | Active PFC (≥ 0.9) | |
| Fan | 135 mm Striped Axial FDB fan | |
| Safety Features | OCP (Over-Current Protection) OVP (Overvoltage Protection) SCP (Short-Circuit Protection) OPP (Overload Protection) UVP (Under Voltage Protection) OTP (Over Temperature Protection) | |
| Warranty | Ten years | |
