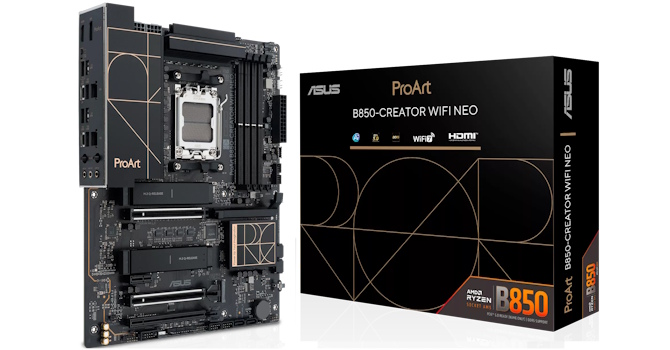

If you love the design of the ProArt range of ASUS products but can't justify the outlay for the X870E or Z890 options, the company finally has a more affordable option with a lower end 800-series chipset. The ProArt B850-Creator Wi-Fi Neo is one of ASUS's latest refresh Socket AM5 models for 800-series chipsets, that comes with new features as well as the striking ProArt design.
Unlike most previous B850 motherboards, we now have dual PCIe Gen 5 M.2 ports and these have dedicated lanes that aren't shared with other devices. The BIOS size has doubled from 256 Mbit (32 MB) to 512 Mbit (64 MB) to allow for driver integration, future features and potentially CPU support, and the list of upgrades from the B650 predecessor is even more extensive.
At $300, it's on the higher side for a B850 motherboard, so the questions to ask are what if anything the ProArt Creator name brings to the table other than its attractive design. Enhanced connectivity has often been the answer here with other boards in this range, so the question is whether it's still only worth considering if you need those extra features or whether the snazzy design alone warrants you reaching for your wallet.
| Specifications | |
|---|---|
| CPU Support: | AMD Socket AM5 Ryzen 7000, 9000 |
| Power Design: | CPU Power: 14-phase/OnSemi NCP 302155R/80 A SOC Power: 2-phase/OnSemi NCP 302155R/80 A MISC Power: 1-phase/OnSemi NCP 302155R/80 A |
| Chipset: | AMD B850 |
| Integrated Graphics: | Supported 1× DisplayPort 1.4 1× DisplayPort 1.4 via Type-C 1× HDMI 2.1 |
| Memory: | 4× DIMM, Support up to 256 GB DDR5-9000 (OC) |
| BIOS: | 512 Mbit (64 MB) AMI UEFI |
| Expansion Slots: | 1× PCIe Gen 5 x16 slot (x16, x8/x8, x8/x4/x4, x4/x4/x4/x4) 1× PCIe Gen 5 x16 slots (x8) 1× PCIe Gen 4 x16 slots (x4) 1× PCIe Gen 4 x1 slots (x1) |
| Storage: | 4× SATA 6 Gb/s 2× M.2 (PCIe Gen 5 x4) 1× M.2 (PCIe Gen 4 x4) |
| Networking: | 2× Realtek 8126 5 Gbps Ethernet 1× Realtek ALC8922 Wi-Fi 7 |
| Rear Ports: | BIOS Flashback button 2× 5 Gbps Ethernet 1× HDMI 2.1 1x DisplayPort 1.4 2× USB 3.2 Gen 2 10 Gbps (Type-C) 2× USB 3.2 Gen 2 10 Gbps (Type-A) 4× USB 2.0 (Type-A) 2× Wi-Fi antenna connectors 3× Audio jacks |
| Audio: | 1× Realtek ALC1220 Codec |
| Fan / Thermistor headers: | 7× 4-pin/1 |
| Form Factor: | ATX Form Factor 12.0 × 9.6 in./30.5 × 24.4 cm |
| Exclusive Features: |
|
