乌龟自动喂食器再次升级

Harry · 2026-02-20 · via 不吐不快

去年我升级了乌龟的自动喂食器：乌龟自动喂食器2.0升级，基于 Arduino cloud 的 APP 来远程管理，就发现有时候连不上，控制按钮免费版也最多使用五个，还有不知道是不是 ESP8266 模块问题，连 Wi-Fi 有时也断。趁着春节假期，换 ESP32，远程也改用 Cloudflare workers 来控制。

主控换成了 ESP32 开发板。这板我也不知道啥时候买的了。不用模块一个是因为省钱，一个是比较方便我升级和调试固件，直接拔出来连到电脑就好了，以前还得把连接线拔了拆整个板。
另外把继电器换成了 PMOS，水位监测，喂食电机驱动和之前一样。

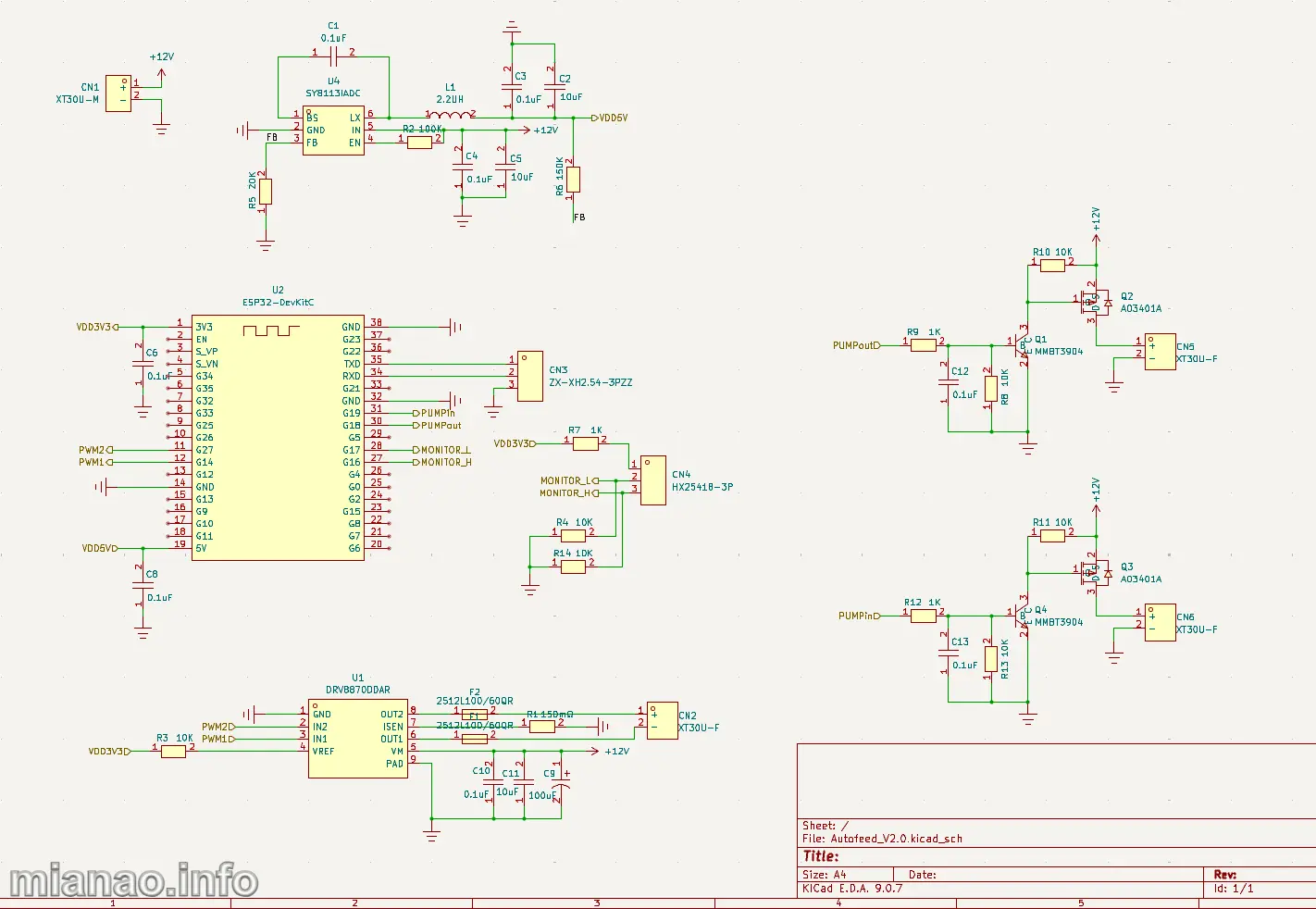

sch_V2
电路设计我使用 KiCAD 9 了，3D 库也一起打包了。
Autofeed_V2

软件设计还是用的 Arduino 框架，通过 Cloudflare Workers 远程控制，使用免费的 MQTT 服务通信（HiveMQ）,国内也可以选用 EMQX，同样有免费额度。

推荐一下 Google antigravity，opus 4.6,gemini 3.0 都有免费额度，今天已经有 gemini 3.1pro 了。
这种简单的软件设计很容易就搞定，bug 修复只要告诉 AI 详细信息，很快就修复了。










#include <ArduinoJson.h>
#include <Preferences.h>
#include <PubSubClient.h>
#include <WiFi.h>
#include <WiFiClientSecure.h>
#include <time.h>



#define MQTT_BROKER "xxx.hivemq.cloud"
#define MQTT_PORT 8883
#define MQTT_USER "name"
#define MQTT_PASS "password"
#define MQTT_CLIENT "autofeed-esp32"


#define TOPIC_CMD "autofeed/cmd"
#define TOPIC_STATUS "autofeed/status"


#define PWM1_PIN 14
#define PWM2_PIN 27
#define PUMP_IN_PIN 19
#define PUMP_OUT_PIN 18
#define WATER_LOW_PIN 17
#define WATER_HIGH_PIN 16


#define NTP_SERVER "pool.ntp.org"
#define GMT_OFFSET 28800
#define DST_OFFSET 0


WiFiClientSecure espClient;
PubSubClient mqtt(espClient);
Preferences prefs;


struct MotorConfig {
  bool enabled;
  int runSeconds;
  int intervalDays;
  String times[10];
  int timeCount;
} motorCfg = {false, 30, 1, {}, 0};


struct PumpInConfig {
  bool enabled;
} pumpInCfg = {false};


struct PumpOutConfig {
  bool enabled;
  int onSeconds;
  int offSeconds;
} pumpOutCfg = {false, 30, 30};


bool motorRunning = false;
unsigned long motorStartTime = 0;

bool pumpInRunning = false;
unsigned long pumpInStartTime = 0;
bool pumpOutRunning = false;
unsigned long pumpOutCycleStart = 0;
bool pumpOutCycleState = false;

bool waterLow = false;
bool waterHigh = false;


unsigned long lastStatusReport = 0;
const unsigned long STATUS_INTERVAL = 10000;

unsigned long lastScheduleCheck = 0;
const unsigned long SCHEDULE_INTERVAL = 30000;

unsigned long lastMqttReconnect = 0;
const unsigned long MQTT_RECONNECT_INTERVAL = 5000;


bool scheduledToday[10] = {false};
int lastCheckedDay = -1;


void setupWiFi();
void setupMQTT();
void mqttCallback(char *topic, byte *payload, unsigned int length);
void reconnectMQTT();
void handleMotorSchedule();
void updateMotor();
void updatePumpIn();
void updatePumpOut();
void reportStatus();
void applyCommand(const char *json);
void saveConfig();
void loadConfig();
void stopMotor();
void startMotor();


void setup() {
  Serial.begin(115200);
  Serial.println("\n=== Autofeed 2.2 启动 ===");


  pinMode(PWM1_PIN, OUTPUT);
  pinMode(PWM2_PIN, OUTPUT);
  pinMode(PUMP_IN_PIN, OUTPUT);
  pinMode(PUMP_OUT_PIN, OUTPUT);
  pinMode(WATER_LOW_PIN, INPUT);
  pinMode(WATER_HIGH_PIN, INPUT);


  digitalWrite(PWM1_PIN, LOW);
  digitalWrite(PWM2_PIN, LOW);
  digitalWrite(PUMP_IN_PIN, LOW);
  digitalWrite(PUMP_OUT_PIN, LOW);


  loadConfig();


  setupWiFi();


  configTime(GMT_OFFSET, DST_OFFSET, NTP_SERVER);
  Serial.println("等待 NTP 时间同步...");
  struct tm timeinfo;
  int retries = 0;
  while (!getLocalTime(&timeinfo) && retries < 20) {
    delay(500);
    Serial.print(".");
    retries++;
  }
  if (retries < 20) {
    Serial.println("\nNTP 同步成功!");
    Serial.printf("当前时间: %04d-%02d-%02d %02d:%02d:%02d\n",
                  timeinfo.tm_year + 1900, timeinfo.tm_mon + 1,
                  timeinfo.tm_mday, timeinfo.tm_hour, timeinfo.tm_min,
                  timeinfo.tm_sec);
  } else {
    Serial.println("\nNTP 同步失败, 将持续重试");
  }


  setupMQTT();
}


void loop() {

  if (WiFi.status() != WL_CONNECTED) {
    Serial.println("WiFi 断开, 重新连接...");
    WiFi.reconnect();
    delay(5000);
    return;
  }


  if (!mqtt.connected()) {
    unsigned long now = millis();
    if (now - lastMqttReconnect > MQTT_RECONNECT_INTERVAL) {
      lastMqttReconnect = now;
      reconnectMQTT();
    }
  }
  mqtt.loop();


  waterLow = digitalRead(WATER_LOW_PIN) == HIGH;
  waterHigh = digitalRead(WATER_HIGH_PIN) == HIGH;


  handleMotorSchedule();
  updateMotor();
  updatePumpIn();
  updatePumpOut();


  unsigned long now = millis();
  if (now - lastStatusReport >= STATUS_INTERVAL) {
    lastStatusReport = now;
    reportStatus();
  }
}


void setupWiFi() {
  prefs.begin("wifi", true);
  String ssid = prefs.getString("ssid", "");
  String pass = prefs.getString("pass", "");
  prefs.end();

  if (ssid.length() > 0) {
    Serial.printf("尝试连接已保存的 WiFi: %s\n", ssid.c_str());
    WiFi.begin(ssid.c_str(), pass.c_str());

    int timeout = 0;
    while (WiFi.status() != WL_CONNECTED && timeout < 20) {
      delay(500);
      Serial.print(".");
      timeout++;
    }

    if (WiFi.status() == WL_CONNECTED) {
      Serial.printf("\nWiFi 已连接! IP: %s\n",
                    WiFi.localIP().toString().c_str());
      return;
    }
    Serial.println("\n已保存的 WiFi 连接失败, 启动 SmartConfig...");
  }


  WiFi.mode(WIFI_STA);
  WiFi.beginSmartConfig(SC_TYPE_ESPTOUCH_V2);
  Serial.println("等待 SmartConfig 配网... (请使用 ESPTouch App)");

  while (!WiFi.smartConfigDone()) {
    delay(500);
    Serial.print(".");
  }
  Serial.println("\nSmartConfig 配网完成!");


  while (WiFi.status() != WL_CONNECTED) {
    delay(500);
    Serial.print(".");
  }
  Serial.printf("\nWiFi 已连接! IP: %s\n", WiFi.localIP().toString().c_str());


  prefs.begin("wifi", false);
  prefs.putString("ssid", WiFi.SSID());
  prefs.putString("pass", WiFi.psk());
  prefs.end();
  Serial.println("WiFi 凭据已保存");
}


void setupMQTT() {
  espClient.setInsecure();
  mqtt.setServer(MQTT_BROKER, MQTT_PORT);
  mqtt.setCallback(mqttCallback);
  mqtt.setBufferSize(1024);
  reconnectMQTT();
}

void reconnectMQTT() {
  if (mqtt.connected())
    return;

  Serial.print("连接 MQTT...");
  if (mqtt.connect(MQTT_CLIENT, MQTT_USER, MQTT_PASS)) {
    Serial.println("成功!");
    mqtt.subscribe(TOPIC_CMD);
    Serial.printf("已订阅: %s\n", TOPIC_CMD);

    reportStatus();
  } else {
    Serial.printf("失败, rc=%d\n", mqtt.state());
  }
}


void mqttCallback(char *topic, byte *payload, unsigned int length) {
  char json[1024];
  if (length >= sizeof(json))
    length = sizeof(json) - 1;
  memcpy(json, payload, length);
  json[length] = '\0';

  Serial.printf("收到 [%s]: %s\n", topic, json);

  if (String(topic) == TOPIC_CMD) {
    applyCommand(json);
  }
}


void applyCommand(const char *json) {
  JsonDocument doc;
  DeserializationError err = deserializeJson(doc, json);
  if (err) {
    Serial.printf("JSON 解析失败: %s\n", err.c_str());
    return;
  }


  if (doc.containsKey("motor")) {
    JsonObject motor = doc["motor"];
    if (motor.containsKey("enabled")) {
      motorCfg.enabled = motor["enabled"].as<bool>();
      if (!motorCfg.enabled) {
        stopMotor();
      }
    }
    if (motor.containsKey("runSeconds")) {
      motorCfg.runSeconds = motor["runSeconds"].as<int>();
    }
    if (motor.containsKey("schedule")) {
      JsonObject schedule = motor["schedule"];
      if (schedule.containsKey("intervalDays")) {
        motorCfg.intervalDays = schedule["intervalDays"].as<int>();
        if (motorCfg.intervalDays < 1)
          motorCfg.intervalDays = 1;
      }
      if (schedule.containsKey("times")) {
        JsonArray times = schedule["times"];
        motorCfg.timeCount = 0;
        for (int i = 0; i < times.size() && i < 10; i++) {
          motorCfg.times[i] = times[i].as<String>();
          motorCfg.timeCount++;
        }

        for (int i = 0; i < 10; i++) {
          scheduledToday[i] = false;
        }
      }
    }
  }


  if (doc.containsKey("pumpIn")) {
    JsonObject pumpIn = doc["pumpIn"];
    if (pumpIn.containsKey("enabled")) {
      pumpInCfg.enabled = pumpIn["enabled"].as<bool>();
      if (!pumpInCfg.enabled) {
        digitalWrite(PUMP_IN_PIN, LOW);
        pumpInRunning = false;
      }
    }
  }


  if (doc.containsKey("pumpOut")) {
    JsonObject pumpOut = doc["pumpOut"];
    if (pumpOut.containsKey("enabled")) {
      pumpOutCfg.enabled = pumpOut["enabled"].as<bool>();
      if (!pumpOutCfg.enabled) {
        digitalWrite(PUMP_OUT_PIN, LOW);
        pumpOutRunning = false;
      } else {

        pumpOutCycleStart = millis();
        pumpOutCycleState = true;
        digitalWrite(PUMP_OUT_PIN, HIGH);
        pumpOutRunning = true;
      }
    }
    if (pumpOut.containsKey("onSeconds")) {
      pumpOutCfg.onSeconds = pumpOut["onSeconds"].as<int>();
    }
    if (pumpOut.containsKey("offSeconds")) {
      pumpOutCfg.offSeconds = pumpOut["offSeconds"].as<int>();
    }
  }


  saveConfig();
  Serial.println("配置已更新并保存");


  reportStatus();
}


void handleMotorSchedule() {
  if (!motorCfg.enabled || motorCfg.timeCount == 0)
    return;
  if (motorRunning)
    return;

  unsigned long now = millis();
  if (now - lastScheduleCheck < SCHEDULE_INTERVAL)
    return;
  lastScheduleCheck = now;

  struct tm timeinfo;
  if (!getLocalTime(&timeinfo))
    return;

  int today = timeinfo.tm_yday;


  if (today != lastCheckedDay) {
    lastCheckedDay = today;
    for (int i = 0; i < 10; i++) {
      scheduledToday[i] = false;
    }
  }



  if (today % motorCfg.intervalDays != 0)
    return;


  char currentTime[6];
  snprintf(currentTime, sizeof(currentTime), "%02d:%02d", timeinfo.tm_hour,
           timeinfo.tm_min);

  for (int i = 0; i < motorCfg.timeCount; i++) {
    if (scheduledToday[i])
      continue;

    if (motorCfg.times[i] == String(currentTime)) {
      Serial.printf("调度触发: %s\n", currentTime);
      scheduledToday[i] = true;
      startMotor();
      break;
    }
  }
}


void startMotor() {
  if (motorRunning)
    return;
  Serial.println("电机启动 (正转)");
  digitalWrite(PWM1_PIN, HIGH);
  digitalWrite(PWM2_PIN, LOW);
  motorRunning = true;
  motorStartTime = millis();
}

void stopMotor() {
  Serial.println("电机停止");
  digitalWrite(PWM1_PIN, LOW);
  digitalWrite(PWM2_PIN, LOW);
  motorRunning = false;
}

void updateMotor() {
  if (!motorRunning)
    return;

  unsigned long elapsed = millis() - motorStartTime;
  if (elapsed >= (unsigned long)motorCfg.runSeconds * 1000UL) {
    stopMotor();
    reportStatus();
  }
}


void updatePumpIn() {
  if (!pumpInCfg.enabled) {
    if (pumpInRunning) {
      digitalWrite(PUMP_IN_PIN, LOW);
      pumpInRunning = false;
    }
    return;
  }




  if (waterHigh) {

    if (pumpInRunning) {
      Serial.println("水位已满, 进水泵停止");
      digitalWrite(PUMP_IN_PIN, LOW);
      pumpInRunning = false;
    }
  } else if (waterLow) {

    if (!pumpInRunning) {
      Serial.println("水位低, 进水泵启动");
      digitalWrite(PUMP_IN_PIN, HIGH);
      pumpInRunning = true;
      pumpInStartTime = millis();
    }
  }


  if (pumpInRunning) {
    if (millis() - pumpInStartTime > 180000UL) {
      Serial.println(
          "!!! 警告: 进水超时(3分钟), 自动关闭并禁用[所有]水泵系统 !!!");


      digitalWrite(PUMP_IN_PIN, LOW);
      pumpInRunning = false;
      pumpInCfg.enabled = false;


      digitalWrite(PUMP_OUT_PIN, LOW);
      pumpOutRunning = false;
      pumpOutCfg.enabled = false;

      saveConfig();
      reportStatus();
    }
  }
}


void updatePumpOut() {
  if (!pumpOutCfg.enabled) {
    if (pumpOutRunning) {
      digitalWrite(PUMP_OUT_PIN, LOW);
      pumpOutRunning = false;
    }
    return;
  }

  unsigned long now = millis();
  unsigned long elapsed = now - pumpOutCycleStart;

  if (pumpOutCycleState) {

    if (elapsed >= (unsigned long)pumpOutCfg.onSeconds * 1000UL) {

      pumpOutCycleState = false;
      pumpOutCycleStart = now;
      digitalWrite(PUMP_OUT_PIN, LOW);
      pumpOutRunning = false;
      Serial.println("循环泵: 关闭");
    }
  } else {

    if (elapsed >= (unsigned long)pumpOutCfg.offSeconds * 1000UL) {

      pumpOutCycleState = true;
      pumpOutCycleStart = now;
      digitalWrite(PUMP_OUT_PIN, HIGH);
      pumpOutRunning = true;
      Serial.println("循环泵: 开启");
    }
  }
}


void reportStatus() {
  if (!mqtt.connected())
    return;

  struct tm timeinfo;
  char timeStr[30] = "N/A";
  if (getLocalTime(&timeinfo)) {
    strftime(timeStr, sizeof(timeStr), "%Y-%m-%dT%H:%M:%S+08:00", &timeinfo);
  }

  JsonDocument doc;

  JsonObject motor = doc["motor"].to<JsonObject>();
  motor["enabled"] = motorCfg.enabled;
  motor["running"] = motorRunning;
  motor["runSeconds"] = motorCfg.runSeconds;
  JsonObject schedule = motor["schedule"].to<JsonObject>();
  schedule["intervalDays"] = motorCfg.intervalDays;
  JsonArray times = schedule["times"].to<JsonArray>();
  for (int i = 0; i < motorCfg.timeCount; i++) {
    times.add(motorCfg.times[i]);
  }

  JsonObject pumpIn = doc["pumpIn"].to<JsonObject>();
  pumpIn["enabled"] = pumpInCfg.enabled;
  pumpIn["running"] = pumpInRunning;

  JsonObject pumpOut = doc["pumpOut"].to<JsonObject>();
  pumpOut["enabled"] = pumpOutCfg.enabled;
  pumpOut["running"] = pumpOutRunning;
  pumpOut["onSeconds"] = pumpOutCfg.onSeconds;
  pumpOut["offSeconds"] = pumpOutCfg.offSeconds;

  doc["waterLow"] = waterLow;
  doc["waterHigh"] = waterHigh;
  doc["time"] = timeStr;
  doc["wifi"] = (WiFi.status() == WL_CONNECTED);

  char buf[512];
  serializeJson(doc, buf, sizeof(buf));
  mqtt.publish(TOPIC_STATUS, buf);
}


void saveConfig() {
  prefs.begin("config", false);

  prefs.putBool("mEnabled", motorCfg.enabled);
  prefs.putInt("mRunSec", motorCfg.runSeconds);
  prefs.putInt("mIntDays", motorCfg.intervalDays);
  prefs.putInt("mTimeCnt", motorCfg.timeCount);
  for (int i = 0; i < motorCfg.timeCount; i++) {
    char key[8];
    snprintf(key, sizeof(key), "mT%d", i);
    prefs.putString(key, motorCfg.times[i]);
  }

  prefs.putBool("piEnabled", pumpInCfg.enabled);

  prefs.putBool("poEnabled", pumpOutCfg.enabled);
  prefs.putInt("poOnSec", pumpOutCfg.onSeconds);
  prefs.putInt("poOffSec", pumpOutCfg.offSeconds);

  prefs.end();
}

void loadConfig() {
  prefs.begin("config", true);

  motorCfg.enabled = prefs.getBool("mEnabled", false);
  motorCfg.runSeconds = prefs.getInt("mRunSec", 30);
  motorCfg.intervalDays = prefs.getInt("mIntDays", 1);
  motorCfg.timeCount = prefs.getInt("mTimeCnt", 0);
  for (int i = 0; i < motorCfg.timeCount && i < 10; i++) {
    char key[8];
    snprintf(key, sizeof(key), "mT%d", i);
    motorCfg.times[i] = prefs.getString(key, "");
  }

  pumpInCfg.enabled = prefs.getBool("piEnabled", false);

  pumpOutCfg.enabled = prefs.getBool("poEnabled", false);
  pumpOutCfg.onSeconds = prefs.getInt("poOnSec", 30);
  pumpOutCfg.offSeconds = prefs.getInt("poOffSec", 30);

  prefs.end();
  Serial.println("配置已从 Flash 加载");
}




export default {
  async fetch(request) {
    return new Response(HTML_CONTENT, {
      headers: { 'Content-Type': 'text/html; charset=utf-8' },
    });
  },
};

const HTML_CONTENT = `<!DOCTYPE html>
<html lang="zh-CN">
<head>
<meta charset="UTF-8">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<link rel="icon" href="https://fav.farm/🐢" />
<title>Autofeed 控制面板</title>
<meta name="description" content="ESP32 远程控制面板">
<link rel="preconnect" href="https://googlefonts.mirrors.sjtug.sjtu.edu.cn">
<link href="https://googlefonts.mirrors.sjtug.sjtu.edu.cn/css2?family=Inter:wght@400;500;600;700&display=swap" rel="stylesheet">
<script src="https://unpkg.com/mqtt@5/dist/mqtt.min.js"></script>
<style>
  :root {
    --bg: #0f1117;
    --surface: #1a1d27;
    --surface2: #242836;
    --border: #2e3348;
    --text: #e4e6f0;
    --text2: #8b8fa8;
    --accent: #6c5ce7;
    --accent-glow: rgba(108,92,231,0.3);
    --green: #00b894;
    --green-glow: rgba(0,184,148,0.3);
    --red: #e17055;
    --red-glow: rgba(225,112,85,0.3);
    --blue: #0984e3;
    --blue-glow: rgba(9,132,227,0.3);
    --yellow: #fdcb6e;
    --radius: 16px;
    --radius-sm: 10px;
  }

  * { margin: 0; padding: 0; box-sizing: border-box; }

  body {
    font-family: 'Inter', -apple-system, sans-serif;
    background: var(--bg);
    color: var(--text);
    min-height: 100vh;
    padding: 20px;
  }

  .container {
    max-width: 680px;
    margin: 0 auto;
  }

  /* Header */
  .header {
    text-align: center;
    padding: 30px 0 20px;
  }
  .header h1 {
    font-size: 1.8rem;
    font-weight: 700;
    margin-bottom: 8px;
    display: flex;
    align-items: center;
    justify-content: center;
    gap: 8px;
  }
  .header h1 span {
    background: linear-gradient(135deg, #6c5ce7, #a29bfe);
    -webkit-background-clip: text;
    -webkit-text-fill-color: transparent;
  }
  .status-badge {
    display: inline-flex;
    align-items: center;
    gap: 6px;
    padding: 6px 14px;
    border-radius: 20px;
    font-size: 0.8rem;
    font-weight: 500;
    background: var(--surface);
    border: 1px solid var(--border);
    transition: all 0.3s;
  }
  .status-badge.connected {
    border-color: var(--green);
    box-shadow: 0 0 12px var(--green-glow);
  }
  .status-badge.disconnected {
    border-color: var(--red);
    box-shadow: 0 0 12px var(--red-glow);
  }
  .status-dot {
    width: 8px; height: 8px;
    border-radius: 50%;
    background: var(--red);
    transition: background 0.3s;
  }
  .status-badge.connected .status-dot { background: var(--green); }

  /* Cards */
  .card {
    background: var(--surface);
    border: 1px solid var(--border);
    border-radius: var(--radius);
    padding: 24px;
    margin-bottom: 16px;
    transition: border-color 0.3s, box-shadow 0.3s;
  }
  .card:hover {
    border-color: rgba(108,92,231,0.4);
    box-shadow: 0 4px 24px rgba(0,0,0,0.3);
  }
  .card-header {
    display: flex;
    justify-content: space-between;
    align-items: center;
    margin-bottom: 18px;
  }
  .card-title {
    display: flex;
    align-items: center;
    gap: 10px;
    font-size: 1.05rem;
    font-weight: 600;
  }
  .card-icon {
    font-size: 1.3rem;
  }
  .running-badge {
    font-size: 0.7rem;
    padding: 3px 10px;
    border-radius: 12px;
    font-weight: 600;
    background: var(--green-glow);
    color: var(--green);
    display: none;
  }
  .running-badge.active { display: inline-block; }

  /* Toggle */
  .toggle {
    position: relative;
    width: 52px; height: 28px;
    cursor: pointer;
  }
  .toggle input { display: none; }
  .toggle .slider {
    position: absolute;
    inset: 0;
    background: var(--surface2);
    border: 2px solid var(--border);
    border-radius: 14px;
    transition: all 0.3s;
  }
  .toggle .slider::before {
    content: '';
    position: absolute;
    width: 20px; height: 20px;
    left: 2px; top: 2px;
    background: var(--text2);
    border-radius: 50%;
    transition: all 0.3s;
  }
  .toggle input:checked + .slider {
    background: var(--accent);
    border-color: var(--accent);
    box-shadow: 0 0 12px var(--accent-glow);
  }
  .toggle input:checked + .slider::before {
    transform: translateX(24px);
    background: white;
  }

  /* Form controls */
  .field-group {
    display: grid;
    grid-template-columns: 1fr 1fr;
    gap: 12px;
    margin-top: 14px;
  }
  .field {
    display: flex;
    flex-direction: column;
    gap: 6px;
  }
  .field.full { grid-column: 1 / -1; }
  .field label {
    font-size: 0.78rem;
    color: var(--text2);
    font-weight: 500;
  }
  .field input, .field select {
    background: var(--surface2);
    border: 1px solid var(--border);
    border-radius: var(--radius-sm);
    padding: 10px 14px;
    color: var(--text);
    font-size: 0.9rem;
    font-family: inherit;
    outline: none;
    transition: border-color 0.2s;
  }
  .field input:focus, .field select:focus {
    border-color: var(--accent);
  }
  .field input[type="number"] {
    -moz-appearance: textfield;
  }

  /* Time list */
  .time-list {
    display: flex;
    flex-wrap: wrap;
    gap: 8px;
    margin-top: 8px;
  }
  .time-tag {
    display: inline-flex;
    align-items: center;
    gap: 6px;
    padding: 6px 12px;
    background: var(--surface2);
    border: 1px solid var(--border);
    border-radius: 8px;
    font-size: 0.85rem;
    font-weight: 500;
  }
  .time-tag .remove {
    cursor: pointer;
    color: var(--red);
    font-size: 1rem;
    line-height: 1;
    opacity: 0.7;
    transition: opacity 0.2s;
  }
  .time-tag .remove:hover { opacity: 1; }

  .add-time-row {
    display: flex;
    gap: 8px;
    margin-top: 10px;
  }
  .add-time-row input {
    flex: 1;
    background: var(--surface2);
    border: 1px solid var(--border);
    border-radius: var(--radius-sm);
    padding: 8px 12px;
    color: var(--text);
    font-family: inherit;
    outline: none;
  }
  .btn-add {
    background: var(--accent);
    border: none;
    border-radius: var(--radius-sm);
    padding: 8px 16px;
    color: white;
    font-weight: 600;
    cursor: pointer;
    font-size: 0.85rem;
    transition: opacity 0.2s;
  }
  .btn-add:hover { opacity: 0.85; }

  /* Send button */
  .btn-send {
    width: 100%;
    padding: 14px;
    background: linear-gradient(135deg, #6c5ce7, #a29bfe);
    border: none;
    border-radius: var(--radius-sm);
    color: white;
    font-size: 1rem;
    font-weight: 600;
    font-family: inherit;
    cursor: pointer;
    margin-top: 20px;
    transition: opacity 0.2s, transform 0.1s;
  }
  .btn-send:hover { opacity: 0.9; }
  .btn-send:active { transform: scale(0.98); }

  /* Status panel */
  .status-grid {
    display: grid;
    grid-template-columns: 1fr 1fr;
    gap: 10px;
  }
  .status-item {
    background: var(--surface2);
    border-radius: var(--radius-sm);
    padding: 14px;
  }
  .status-item .label {
    font-size: 0.75rem;
    color: var(--text2);
    margin-bottom: 4px;
  }
  .status-item .value {
    font-size: 0.95rem;
    font-weight: 600;
  }
  .status-item .value.on { color: var(--green); }
  .status-item .value.off { color: var(--text2); }
  .status-item .value.warn { color: var(--yellow); }
  .status-item.full { grid-column: 1 / -1; }

  /* Toast */
  .toast {
    position: fixed;
    bottom: 30px;
    left: 50%;
    transform: translateX(-50%) translateY(100px);
    background: var(--surface);
    border: 1px solid var(--accent);
    color: var(--text);
    padding: 12px 24px;
    border-radius: var(--radius-sm);
    font-size: 0.85rem;
    font-weight: 500;
    box-shadow: 0 8px 32px rgba(0,0,0,0.4);
    opacity: 0;
    transition: all 0.3s;
    z-index: 100;
  }
  .toast.show {
    opacity: 1;
    transform: translateX(-50%) translateY(0);
  }

  /* Responsive */
  @media (max-width: 500px) {
    body { padding: 12px; }
    .header h1 { font-size: 1.5rem; }
    .field-group { grid-template-columns: 1fr; }
    .status-grid { grid-template-columns: 1fr; }
  }
</style>
</head>
<body>
<div class="container">

  <!-- Header -->
  <div class="header">
    <h1>🐢 <span>Autofeed 控制面板</span></h1>
    <div class="status-badge disconnected" id="mqttBadge">
      <span class="status-dot"></span>
      <span id="mqttStatusText">未连接</span>
    </div>
  </div>

  <!-- 电机控制 -->
  <div class="card" id="motorCard">
    <div class="card-header">
      <div class="card-title">
        <span class="card-icon">⚙️</span> 电机控制
        <span class="running-badge" id="motorRunBadge">运行中</span>
      </div>
      <label class="toggle">
        <input type="checkbox" id="motorEnabled">
        <span class="slider"></span>
      </label>
    </div>
    <div class="field-group">
      <div class="field">
        <label>每次运行时长 (秒)</label>
        <input type="number" id="motorRunSeconds" value="30" min="1" max="3600">
      </div>
      <div class="field">
        <label>间隔天数</label>
        <select id="motorIntervalDays">
          <option value="1">每天</option>
          <option value="2">隔天 (每2天)</option>
          <option value="3">每3天</option>
          <option value="4">每4天</option>
          <option value="5">每5天</option>
        </select>
      </div>
      <div class="field full">
        <label>定时启动时间</label>
        <div class="time-list" id="timeList"></div>
        <div class="add-time-row">
          <input type="time" id="newTime" value="08:00">
          <button class="btn-add" onclick="addTime()">添加</button>
        </div>
      </div>
    </div>
  </div>

  <!-- 进水泵控制 -->
  <div class="card">
    <div class="card-header">
      <div class="card-title">
        <span class="card-icon">💧</span> 进水泵
        <span class="running-badge" id="pumpInRunBadge">运行中</span>
      </div>
      <label class="toggle">
        <input type="checkbox" id="pumpInEnabled">
        <span class="slider"></span>
      </label>
    </div>
    <p style="color:var(--text2);font-size:0.85rem;">开启后由水位传感器自动控制进水泵工作</p>
  </div>

  <!-- 循环泵控制 -->
  <div class="card">
    <div class="card-header">
      <div class="card-title">
        <span class="card-icon">🔄</span> 循环泵
        <span class="running-badge" id="pumpOutRunBadge">运行中</span>
      </div>
      <label class="toggle">
        <input type="checkbox" id="pumpOutEnabled">
        <span class="slider"></span>
      </label>
    </div>
    <div class="field-group">
      <div class="field">
        <label>开启时间 (秒)</label>
        <input type="number" id="pumpOutOn" value="30" min="1" max="3600">
      </div>
      <div class="field">
        <label>关闭时间 (秒)</label>
        <input type="number" id="pumpOutOff" value="30" min="1" max="3600">
      </div>
    </div>
  </div>

  <!-- 发送按钮 -->
  <button class="btn-send" onclick="sendCommand()">📡 发送配置</button>

  <!-- 设备状态 -->
  <div class="card" style="margin-top: 16px;">
    <div class="card-header">
      <div class="card-title">
        <span class="card-icon">📊</span> 设备状态
      </div>
    </div>
    <div class="status-grid">
      <div class="status-item">
        <div class="label">电机</div>
        <div class="value off" id="stMotor">--</div>
      </div>
      <div class="status-item">
        <div class="label">进水泵</div>
        <div class="value off" id="stPumpIn">--</div>
      </div>
      <div class="status-item">
        <div class="label">循环泵</div>
        <div class="value off" id="stPumpOut">--</div>
      </div>
      <div class="status-item">
        <div class="label">WiFi</div>
        <div class="value off" id="stWifi">--</div>
      </div>
      <div class="status-item">
        <div class="label">低水位报警</div>
        <div class="value off" id="stWaterLow">--</div>
      </div>
      <div class="status-item">
        <div class="label">水位已满</div>
        <div class="value off" id="stWaterHigh">--</div>
      </div>
      <div class="status-item full">
        <div class="label">设备时间</div>
        <div class="value" id="stTime">--</div>
      </div>
    </div>
  </div>

</div>

<!-- Toast -->
<div class="toast" id="toast"></div>

<script>
// ==================== HiveMQ 配置 (请填写) ====================
const MQTT_CONFIG = {
  broker: 'wss://xxx.hivemq.cloud:8884/mqtt',   // HiveMQ WebSocket 地址
  username: 'name',                               // HiveMQ 项目中新建用户，用户名
  password: 'password',                               // HiveMQ 密码
  clientId: 'autofeed-web-' + Math.random().toString(16).slice(2, 8),
};

const TOPIC_CMD = 'autofeed/cmd';
const TOPIC_STATUS = 'autofeed/status';

// ==================== 全局状态 ====================
let client = null;
let scheduleTimes = [];
let lastInteraction = 0; // 上次用户操作时间

// ==================== MQTT 连接 ====================
function connectMQTT() {
  const badge = document.getElementById('mqttBadge');
  const statusText = document.getElementById('mqttStatusText');

  statusText.textContent = '连接中...';

  client = mqtt.connect(MQTT_CONFIG.broker, {
    username: MQTT_CONFIG.username,
    password: MQTT_CONFIG.password,
    clientId: MQTT_CONFIG.clientId,
    protocolVersion: 4,
    clean: true,
    reconnectPeriod: 5000,
  });

  client.on('connect', () => {
    badge.className = 'status-badge connected';
    statusText.textContent = '已连接';
    client.subscribe(TOPIC_STATUS);
    showToast('✅ MQTT 已连接');
  });

  client.on('error', (err) => {
    badge.className = 'status-badge disconnected';
    statusText.textContent = '连接失败';
    console.error('MQTT error:', err);
  });

  client.on('offline', () => {
    badge.className = 'status-badge disconnected';
    statusText.textContent = '已断开';
  });

  client.on('reconnect', () => {
    statusText.textContent = '重连中...';
  });

  client.on('message', (topic, message) => {
    if (topic === TOPIC_STATUS) {
      try {
        const data = JSON.parse(message.toString());
        updateStatusPanel(data);
      } catch (e) {
        console.error('Parse error:', e);
      }
    }
  });
}

// ==================== 更新状态面板 ====================
function updateStatusPanel(data) {
  setStatus('stMotor', data.motor?.running, data.motor?.enabled ? '已启用' : '已禁用');
  setStatus('stPumpIn', data.pumpIn?.running, data.pumpIn?.enabled ? '已启用' : '已禁用');
  setStatus('stPumpOut', data.pumpOut?.running, data.pumpOut?.enabled ? '已启用' : '已禁用');
  setStatus('stWifi', data.wifi, '');
  setStatusWarn('stWaterLow', data.waterLow);
  setStatusWarn('stWaterHigh', data.waterHigh);

  document.getElementById('stTime').textContent = data.time || '--';

  // 更新运行徽章
  toggleBadge('motorRunBadge', data.motor?.running);
  toggleBadge('pumpInRunBadge', data.pumpIn?.running);
  toggleBadge('pumpOutRunBadge', data.pumpOut?.running);

  // 同步控制面板与设备状态 (如果用户最近没有操作)
  if (Date.now() - lastInteraction > 30000) {
    syncUI(data);
  }
}

function setStatus(id, running, fallback) {
  const el = document.getElementById(id);
  if (running) {
    el.textContent = '运行中';
    el.className = 'value on';
  } else {
    el.textContent = fallback || '关闭';
    el.className = 'value off';
  }
}

function setStatusWarn(id, active) {
  const el = document.getElementById(id);
  if (active) {
    el.textContent = '是';
    el.className = 'value warn';
  } else {
    el.textContent = '否';
    el.className = 'value off';
  }
}

function toggleBadge(id, active) {
  const el = document.getElementById(id);
  el.className = active ? 'running-badge active' : 'running-badge';
}

// 将设备状态同步到 UI 控件
function syncUI(data) {
  if (data.motor) {
    document.getElementById('motorEnabled').checked = data.motor.enabled;
    document.getElementById('motorRunSeconds').value = data.motor.runSeconds || 30;
    if (data.motor.schedule) {
      document.getElementById('motorIntervalDays').value = data.motor.schedule.intervalDays || 1;
      if (data.motor.schedule.times) {
        scheduleTimes = [...data.motor.schedule.times];
        renderTimes();
      }
    }
  }
  if (data.pumpIn) {
    document.getElementById('pumpInEnabled').checked = data.pumpIn.enabled;
  }
  if (data.pumpOut) {
    document.getElementById('pumpOutEnabled').checked = data.pumpOut.enabled;
    document.getElementById('pumpOutOn').value = data.pumpOut.onSeconds || 30;
    document.getElementById('pumpOutOff').value = data.pumpOut.offSeconds || 30;
  }
}

// ==================== 时间管理 ====================
function addTime() {
  const input = document.getElementById('newTime');
  const time = input.value;
  if (!time) return;
  const formatted = time.substring(0, 5);  // "HH:MM"
  if (scheduleTimes.includes(formatted)) {
    showToast('⚠️ 该时间已存在');
    return;
  }
  scheduleTimes.push(formatted);
  scheduleTimes.sort();
  renderTimes();
  recordInteraction();
}

function removeTime(index) {
  scheduleTimes.splice(index, 1);
  renderTimes();
  recordInteraction();
}

function renderTimes() {
  const container = document.getElementById('timeList');
  container.innerHTML = scheduleTimes.map((t, i) =>
    '<span class="time-tag">' + t +
    ' <span class="remove" onclick="removeTime(' + i + ')">×</span></span>'
  ).join('');
}

// ==================== 发送命令 ====================
function sendCommand() {
  if (!client || !client.connected) {
    showToast('❌ MQTT 未连接');
    return;
  }

  const cmd = {
    motor: {
      enabled: document.getElementById('motorEnabled').checked,
      runSeconds: parseInt(document.getElementById('motorRunSeconds').value) || 30,
      schedule: {
        intervalDays: parseInt(document.getElementById('motorIntervalDays').value) || 1,
        times: [...scheduleTimes],
      },
    },
    pumpIn: {
      enabled: document.getElementById('pumpInEnabled').checked,
    },
    pumpOut: {
      enabled: document.getElementById('pumpOutEnabled').checked,
      onSeconds: parseInt(document.getElementById('pumpOutOn').value) || 30,
      offSeconds: parseInt(document.getElementById('pumpOutOff').value) || 30,
    },
  };

  client.publish(TOPIC_CMD, JSON.stringify(cmd));
  showToast('✅ 配置已发送');
}

// ==================== Toast ====================
function showToast(msg) {
  const toast = document.getElementById('toast');
  toast.textContent = msg;
  toast.classList.add('show');
  setTimeout(() => toast.classList.remove('show'), 2500);
}

// ==================== 交互检测 ====================
function recordInteraction() {
  lastInteraction = Date.now();
  console.log('User interaction detected, pausing sync for 30s');
}

function initInteractionListeners() {
  document.querySelectorAll('input, select').forEach(el => {
    el.addEventListener('input', recordInteraction);
    el.addEventListener('change', recordInteraction);
  });
}

// ==================== 初始化 ====================
renderTimes();
initInteractionListeners();
connectMQTT();
</script>
</body>
</html>`;

目前页面使用的是 Emoji 图标，可以根据喜好自行更换：
比如主标题图标 (第 352 行左右)：
<h1>🐢 <span>Autofeed 2.2</span></h1>
可以将 🐢 换成其他 Emoji。

功能卡片图标：
电机控制: ⚙️ (第 363 行左右)
进水泵: 💧 (第 401 行左右)
循环泵: 🔄 (第 416 行左右)
设备状态: 📊 (第 443 行左右)

由于 Cloudflare Worker 是单文件部署，最简单的方法是使用 Emoji Favicon。所以我在 <head> 标签内添加一行代码作为网站的 Favicon：
<link rel="icon" href="https://fav.farm/🐢" />
注：fav.farm 是一个直接把 Emoji 变成图标的开源服务，也可以使用 Base64 图片代码

我使用的是 HiveMQ，国内的有 EMQX，设置都一样。
注册账号后新建一个 Cloud Clusters，可以获得 URL 了。再添加一个 credentials，设置用户名和密码，权限选择 publish and subscribe。
免费版可以支持 100 个设备，流量 10G/month。发布者，订阅者都算设备，所以 worker 也算一台。

此内容由惯性聚合(RSS阅读器)自动聚合整理，仅供阅读参考。原文来自 — 版权归原作者所有。

推荐订阅源

不吐不快
