上次用 SK150 模块改装了一台电源：变废为宝-将淘汰的PC电源改装成直流稳压源，一直想升级一下。为什么呢，一个原因是之前打印的是白色，和灰色的模块不搭，另一个原因是想增加 USB 接口，直接输出 5V，还有一个是电源按钮忘记把指示灯接上了。然后就是在使用时，发现要是加个语音识别功能就最好了，两只手在测量时，嘴里叫一声打开电源，关闭电源，就非常方便了。趁着年前有点时间，功能全都加上。
语音识别
语音模块淘宝一搜就有很多，我买的是 ASR-PRO 核心板 4M 版本，花了 9.5。

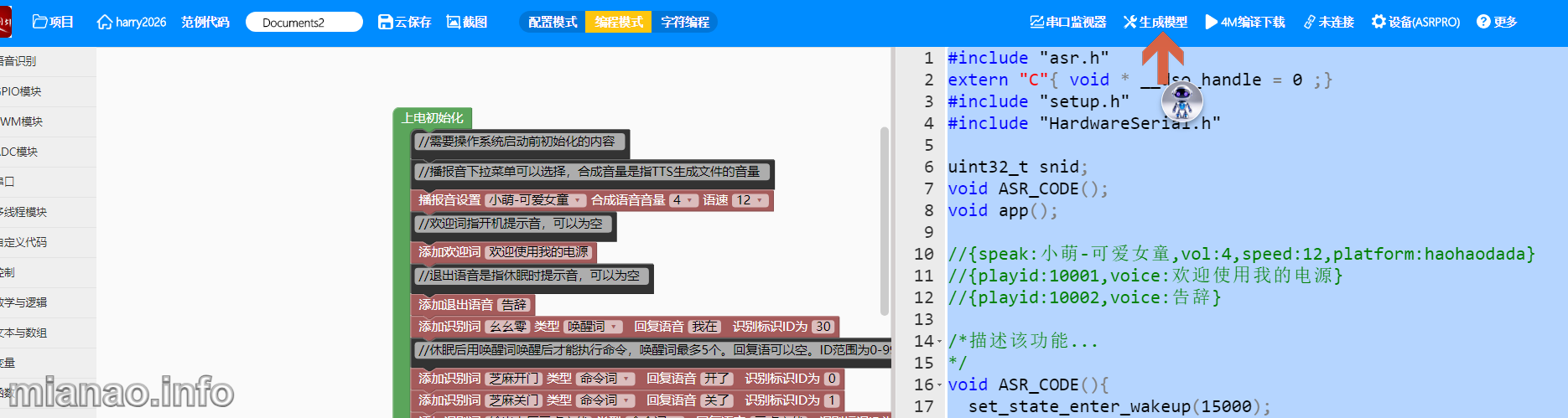

模块问题不大，但配套的开发软件就是垃圾，说明文档也很烂，搞的我重新写了几次，就因为开发软件逻辑混乱，自动保存不知道保存的啥，另存为后自动保存又自己改名字，什么配置模式，编程模式，字符编程随便点一下，之前的工作就废了。反正就是乱七八糟的，就这样的玩意儿居然还拿出来商用，太业余了。
还有一个就是固件下载之前一定要先生成模型，也就是安装固件里的文字生成语音模型。这个必须用手机号实名注册才行。

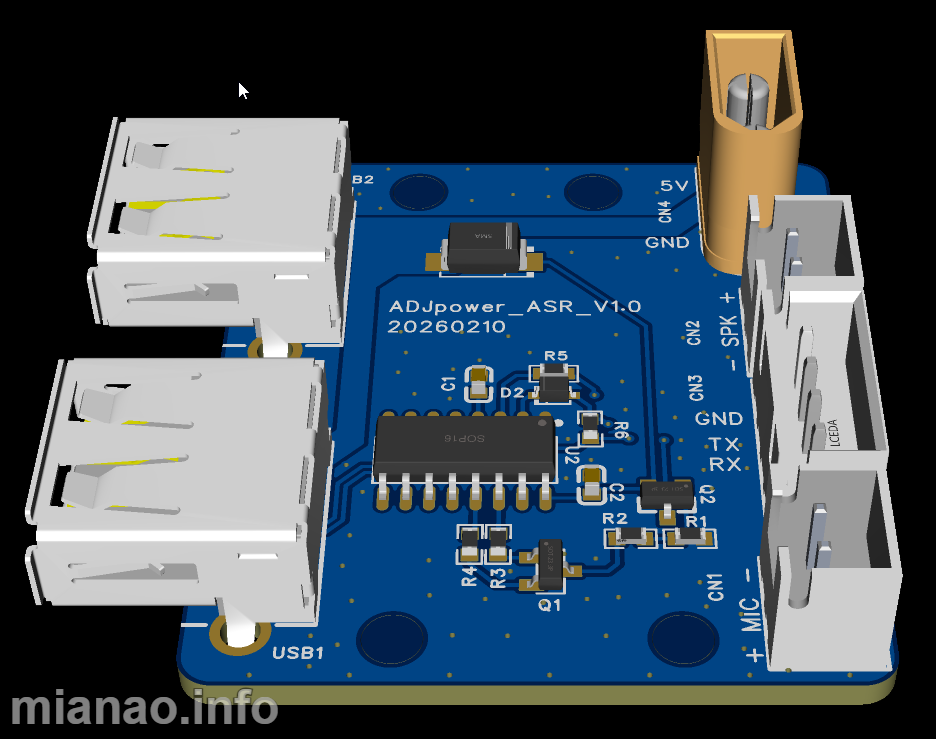

按照模块的开发板设计的：
源文件使用嘉立创专业版，没用 KiCAD 是因为板子很简单又小，方便免费打板：
ADJpower_ASR_V1.0 链接: https://pan.baidu.com/s/18X4nqUIlhQyUX2NETzVrwA?pwd=s7fu 提取码: s7fu
SK150 模块有标准的 Modbus-RTU (CRC-16/MODBUS) 协议，见SK150 模块产品说明书：
链接：https://pan.quark.cn/s/a023f8d13edf 提取码：AX8x
但是，这个说明书里有问题，电压值是 x100 后转换成十六进制，电流值是 x1000 再转换成十六进制。 不然按照说明书来电流调整都会小 10倍。
语音模块的代码如下，我只加了开关输出，一些我常用的电压电流值：
输出开启 (ON)：01 06 00 12 00 01 E8 0F
输出关闭 (OFF)：01 06 00 12 00 00 29 CF
| 电压 (V) |
值（单位：0.01V） |
十六进制指令 |
语音 ID |
| 3.6 |
360 |
01 06 00 00 01 68 89 B4 |
2 |
| 4.2 |
420 |
01 06 00 00 01 A4 89 E1 |
3 |
| 8.4 |
840 |
01 06 00 00 03 48 89 0C |
4 |
| 12.0 |
1200 |
01 06 00 00 04 B0 8A BE |
5 |
| 12.6 |
1260 |
01 06 00 00 04 EC 8A 87 |
6 |
| 16.8 |
1680 |
01 06 00 00 06 90 8A 06 |
7 |
| 20.0 |
2000 |
01 06 00 00 07 D0 8A 66 |
8 |
| 24.0 |
2400 |
01 06 00 00 09 60 8F B2 |
9 |
| 25.2 |
2520 |
01 06 00 00 09 D8 8F C0 |
10 |
| 29.4 |
2940 |
01 06 00 00 0B 7C 8F 1B |
11 |
| 30.0 |
3000 |
01 06 00 00 0B B8 8E 88 |
12 |
| 36.0 |
3600 |
01 06 00 00 0E 10 8C 66 |
13 |
| 电流 (A) |
值 (单位： 0.001A) |
十六进制指令 |
语音ID |
| 0.2 |
200 |
01 06 00 01 00 C8 D9 9C |
14 |
| 0.5 |
500 |
01 06 00 01 01 F4 D8 1D |
15 |
| 1.0 |
1000 |
01 06 00 01 03 E8 D8 B4 |
16 |
| 1.5 |
1500 |
01 06 00 01 05 DC DA C3 |
17 |
| 2.0 |
2000 |
01 06 00 01 07 D0 DB A6 |
18 |
| 2.5 |
2500 |
01 06 00 01 09 C4 DF C9 |
19 |
| 3.0 |
3000 |
01 06 00 01 0B B8 DF 48 |
20 |
| 3.5 |
3500 |
01 06 00 01 0D AC DC E7 |
21 |
| 4.0 |
4000 |
01 06 00 01 0F A0 DD 82 |
22 |
| 4.5 |
4500 |
01 06 00 01 11 94 D5 F5 |
23 |
| 5.0 |
5000 |
01 06 00 01 13 88 D5 5C |
24 |
| 6.0 |
6000 |
01 06 00 01 17 70 D6 1E |
25 |
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
| #include "asr.h"
extern "C"{ void * __dso_handle = 0 ;}
#include "setup.h"
#include "HardwareSerial.h"
uint32_t snid;
void ASR_CODE();
void app();
void ASR_CODE(){
set_state_enter_wakeup(15000);
switch (snid) {
case 0:
Serial1.write(0x01);
Serial1.write(0x06);
Serial1.write(0x00);
Serial1.write(0x12);
Serial1.write(0x00);
Serial1.write(0x01);
Serial1.write(0xE8);
Serial1.write(0x0F);
break;
case 1:
Serial1.write(0x01);
Serial1.write(0x06);
Serial1.write(0x00);
Serial1.write(0x12);
Serial1.write(0x00);
Serial1.write(0x00);
Serial1.write(0x29);
Serial1.write(0xCF);
break;
case 2:
Serial1.write(0x01);
Serial1.write(0x06);
Serial1.write(0x00);
Serial1.write(0x00);
Serial1.write(0x01);
Serial1.write(0x68);
Serial1.write(0x89);
Serial1.write(0xB4);
break;
case 3:
Serial1.write(0x01);
Serial1.write(0x06);
Serial1.write(0x00);
Serial1.write(0x00);
Serial1.write(0x01);
Serial1.write(0xA4);
Serial1.write(0x89);
Serial1.write(0xE1);
break;
case 4:
Serial1.write(0x01);
Serial1.write(0x06);
Serial1.write(0x00);
Serial1.write(0x00);
Serial1.write(0x03);
Serial1.write(0x48);
Serial1.write(0x89);
Serial1.write(0x0C);
break;
case 5:
Serial1.write(0x01);
Serial1.write(0x06);
Serial1.write(0x00);
Serial1.write(0x00);
Serial1.write(0x04);
Serial1.write(0xB0);
Serial1.write(0x8A);
Serial1.write(0xBE);
break;
case 6:
Serial1.write(0x01);
Serial1.write(0x06);
Serial1.write(0x00);
Serial1.write(0x00);
Serial1.write(0x04);
Serial1.write(0xEC);
Serial1.write(0x8A);
Serial1.write(0x87);
break;
case 7:
Serial1.write(0x01);
Serial1.write(0x06);
Serial1.write(0x00);
Serial1.write(0x00);
Serial1.write(0x06);
Serial1.write(0x90);
Serial1.write(0x8A);
Serial1.write(0x06);
break;
case 8:
Serial1.write(0x01);
Serial1.write(0x06);
Serial1.write(0x00);
Serial1.write(0x00);
Serial1.write(0x07);
Serial1.write(0xD0);
Serial1.write(0x8A);
Serial1.write(0x66);
break;
case 9:
Serial1.write(0x01);
Serial1.write(0x06);
Serial1.write(0x00);
Serial1.write(0x00);
Serial1.write(0x09);
Serial1.write(0x60);
Serial1.write(0x8F);
Serial1.write(0xB2);
break;
case 10:
Serial1.write(0x01);
Serial1.write(0x06);
Serial1.write(0x00);
Serial1.write(0x00);
Serial1.write(0x09);
Serial1.write(0xD8);
Serial1.write(0x8F);
Serial1.write(0xC0);
break;
case 11:
Serial1.write(0x01);
Serial1.write(0x06);
Serial1.write(0x00);
Serial1.write(0x00);
Serial1.write(0x0B);
Serial1.write(0x7C);
Serial1.write(0x8F);
Serial1.write(0x1B);
break;
case 12:
Serial1.write(0x01);
Serial1.write(0x06);
Serial1.write(0x00);
Serial1.write(0x00);
Serial1.write(0x0B);
Serial1.write(0xB8);
Serial1.write(0x8E);
Serial1.write(0x88);
break;
case 13:
Serial1.write(0x01);
Serial1.write(0x06);
Serial1.write(0x00);
Serial1.write(0x00);
Serial1.write(0x0E);
Serial1.write(0x10);
Serial1.write(0x8C);
Serial1.write(0x66);
break;
case 14:
Serial1.write(0x01);
Serial1.write(0x06);
Serial1.write(0x00);
Serial1.write(0x01);
Serial1.write(0x00);
Serial1.write(0xC8);
Serial1.write(0xD9);
Serial1.write(0x9C);
break;
case 15:
Serial1.write(0x01);
Serial1.write(0x06);
Serial1.write(0x00);
Serial1.write(0x01);
Serial1.write(0x01);
Serial1.write(0xF4);
Serial1.write(0xD8);
Serial1.write(0x1D);
break;
case 16:
Serial1.write(0x01);
Serial1.write(0x06);
Serial1.write(0x00);
Serial1.write(0x01);
Serial1.write(0x03);
Serial1.write(0xE8);
Serial1.write(0xD8);
Serial1.write(0xB4);
break;
case 17:
Serial1.write(0x01);
Serial1.write(0x06);
Serial1.write(0x00);
Serial1.write(0x01);
Serial1.write(0x05);
Serial1.write(0xDC);
Serial1.write(0xDA);
Serial1.write(0xC3);
break;
case 18:
Serial1.write(0x01);
Serial1.write(0x06);
Serial1.write(0x00);
Serial1.write(0x01);
Serial1.write(0x07);
Serial1.write(0xD0);
Serial1.write(0xDB);
Serial1.write(0xA6);
break;
case 19:
Serial1.write(0x01);
Serial1.write(0x06);
Serial1.write(0x00);
Serial1.write(0x01);
Serial1.write(0x09);
Serial1.write(0xC4);
Serial1.write(0xDF);
Serial1.write(0xC9);
break;
case 20:
Serial1.write(0x01);
Serial1.write(0x06);
Serial1.write(0x00);
Serial1.write(0x01);
Serial1.write(0x0B);
Serial1.write(0xB8);
Serial1.write(0xDF);
Serial1.write(0x48);
break;
case 21:
Serial1.write(0x01);
Serial1.write(0x06);
Serial1.write(0x00);
Serial1.write(0x01);
Serial1.write(0x0D);
Serial1.write(0xAC);
Serial1.write(0xDC);
Serial1.write(0xE7);
break;
case 22:
Serial1.write(0x01);
Serial1.write(0x06);
Serial1.write(0x00);
Serial1.write(0x01);
Serial1.write(0x0F);
Serial1.write(0xA0);
Serial1.write(0xDD);
Serial1.write(0x82);
break;
case 23:
Serial1.write(0x01);
Serial1.write(0x06);
Serial1.write(0x00);
Serial1.write(0x01);
Serial1.write(0x11);
Serial1.write(0x94);
Serial1.write(0xD5);
Serial1.write(0xF5);
break;
case 24:
Serial1.write(0x01);
Serial1.write(0x06);
Serial1.write(0x00);
Serial1.write(0x01);
Serial1.write(0x13);
Serial1.write(0x88);
Serial1.write(0xD5);
Serial1.write(0x5C);
break;
case 25:
Serial1.write(0x01);
Serial1.write(0x06);
Serial1.write(0x00);
Serial1.write(0x01);
Serial1.write(0x17);
Serial1.write(0x70);
Serial1.write(0xD6);
Serial1.write(0x1E);
break;
}
}
void app(){
while (1) {
delay(100);
}
vTaskDelete(NULL);
}
void hardware_init(){
vol_set(5);
setPinFun(2,FORTH_FUNCTION);
setPinFun(3,FORTH_FUNCTION);
Serial1.begin(115200);
xTaskCreate(app,"app",128,NULL,4,NULL);
vTaskDelete(NULL);
}
void setup()
{
}
|
结构

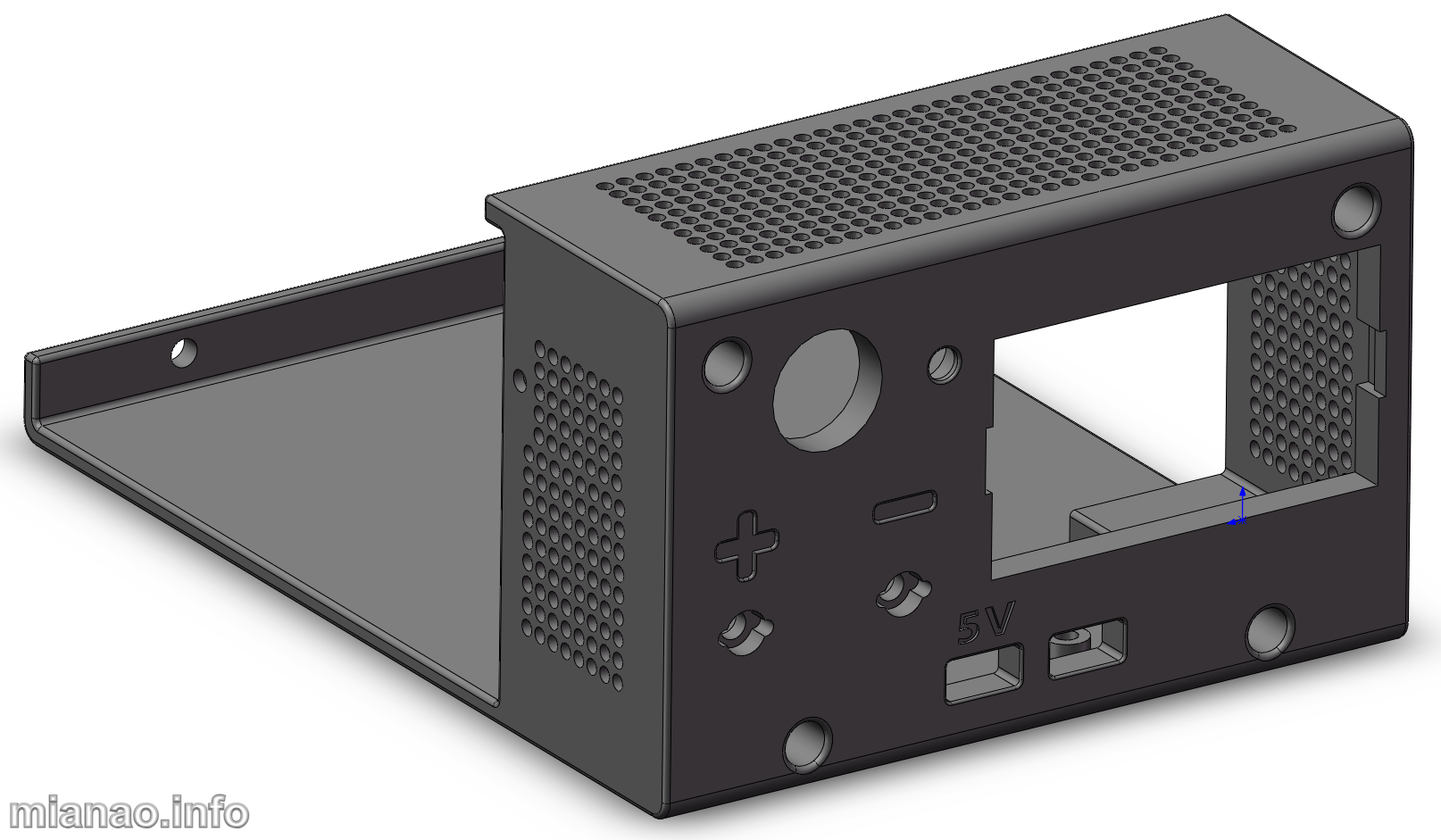

结构还是用的 Solidworks 我也尝试过用 freeCAD，但是易用性实在不好，我实在不想学了。
因为要增加一块小板，还有喇叭麦克风，所以在之前的基础上增加了长度，另外开始是想做一个喇叭腔体放左边的，后来发现声音已经够大了，所以就懒得折腾了，不过位置还是留着了。
源文件下载：
SK150.SLDPRT 链接: https://pan.baidu.com/s/1cP8gwmTejCkrd9v1A6fcKQ?pwd=tuu8 提取码: tuu8
SK150.STEP 链接: https://pan.baidu.com/s/1yjHJnCcTu9I7EgCVFSPhNw?pwd=2prk 提取码: 2prk
装配

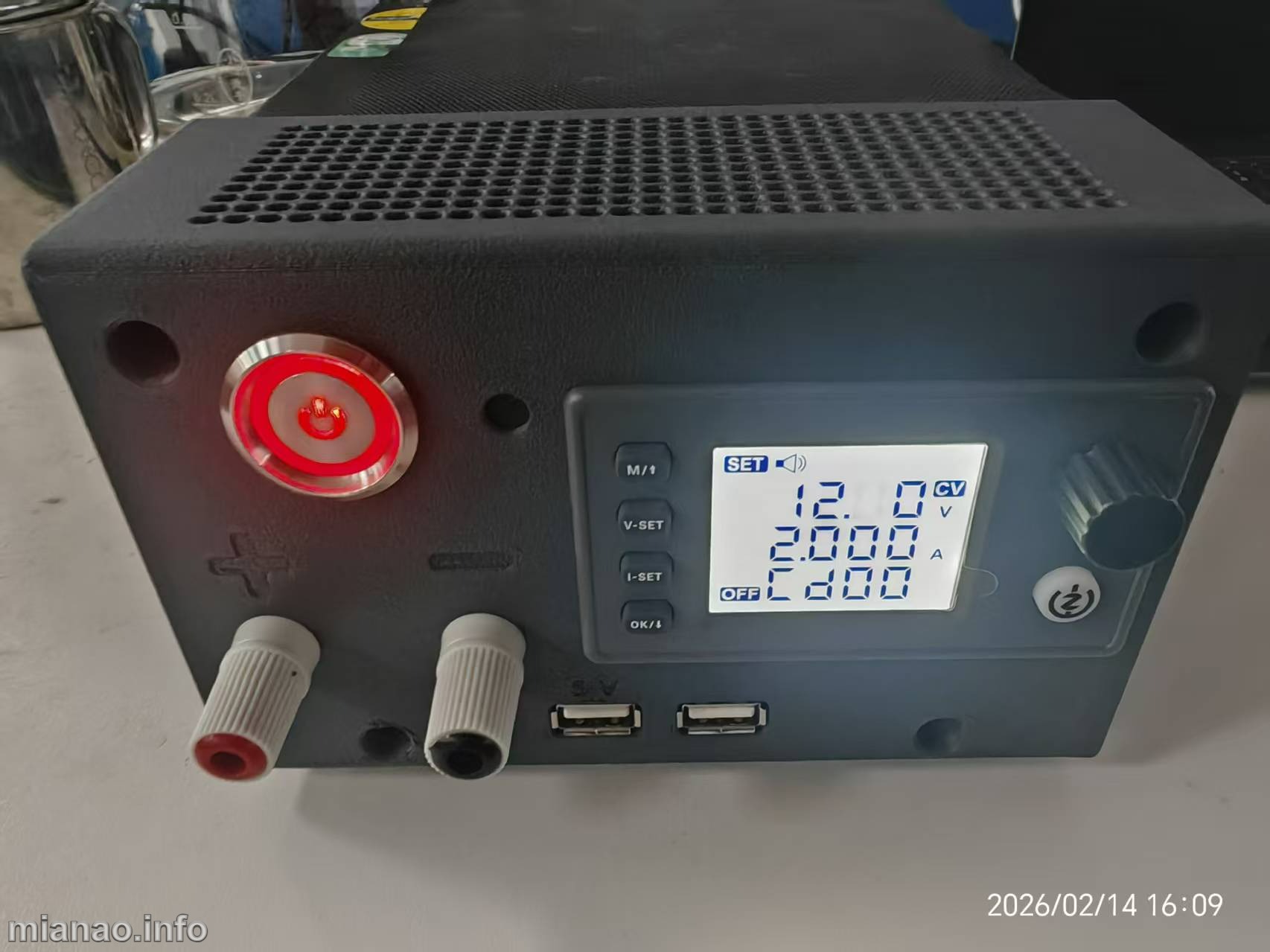

装配完成图片：
打印有点瑕疵，不过颜色搭得上了。语音功能正常，我也不录视频了，麻烦。
