There’s a lot of hype around GPUs and NVIDIA, but how much do you know about TPUs?

Article includes code examples you can find near the end

Rise of GPUs

Graphics Processing Units have been around for quite some time and their job is to render 2D and 3D graphics in to millions of pixels, calculating their colour, texture, lighting, in parallel to send to your monitor. For a 60Hz monitor that means producing rendered frames 60 times every second.

Rendering graphics is one thing, but developing code for handling GPUs was a little more difficult. That is, until NVIDIA launched CUDA (Compute Unified Device Architecture) in 2006, which allowed scientific researchers and developers who work in fields that require massive parallel math to take advantage of a GPU’s capabilities. With the rise of machine learning in the early 2010’s, it was discovered that the massive parallel math was exactly what ML engineers needed to train deep neural networks. Since then, the focus of CUDA has been shifting more towards optimizing for machine learning and AI workloads.

Because GPUs were commercially available and relatively inexpensive at the time, the barrier to entry was low. An ML engineer could train models on their NVIDIA graphics card during the day and jump into a game of League of Legends at night on the same hardware.

Honourable mention

AMD’s GPUs with Radeon Open Compute (ROCm) in an open-source software stack designed to compete in the AI ecosystem. Though it’s not as popular as CUDA, this gap is closing with Meta recently signing a deal to expand its existing partnership with AMD.

Tensor Processing Unit

In the early 2010s, Google projected that the growing demands of its AI workloads, particularly the rapid adoption of deep learning across products like Search and Photos, would require doubling its data center computing capacity roughly every year and a half. Rather than scale generic hardware indefinitely, Google sought a more efficient solution purpose-built for neural network computation, and thus the Tensor Processing Unit (TPU) was born. The TPU is a custom application-specific integrated circuit (ASIC) designed by Google specifically to accelerate AI workloads, deployed internally starting in 2015. By specializing the hardware for the dense matrix operations at the heart of neural networks, TPUs achieve dramatically better performance per watt than general-purpose CPUs or GPUs, reducing both energy consumption and cooling demands at data center scale.

Google has a tradition of making tools it uses internally available to the broader world, and TPUs are another example of this. The existence of TPUs was first publicly announced at Google I/O in 2016. In 2018, Cloud TPU v2 became available for external users through Google Cloud, marking the first time developers outside Google could harness the same accelerators powering Google’s own AI systems. TPUs also come in two performance flavours: efficiency and performance to meet different market needs.

NOTE: As of the 8th generation of TPUs announced during Google Next 2026, efficiency and performance TPUs will be renamed inference and training respectively in favour of a more descriptive, workload-based naming convention.

Architecture layout

From an architectural standpoint, GPUs can be thought of as being individual computers with accelerators (picture your home gaming PC). If you want to connect them into a cluster, it would be over network, but no matter how fast the network is, it still has to cross node boundaries, and bandwidth drops as a result.

TPUs are designed from the ground up to be interconnected at a massive scale with a physical layout that involves thousands of TPU chips in a torus topology which gives every chip 6 neighbours (two per axis, one on each side). Recognize that interconnect bandwidth would be the main bottleneck at this scale, Google designed their own proprietary Inter-Chip Interconnect (ICI) network which provides uniform, high-bandwidth, low-latency connections between all the chips in a slice regardless of physical location. With torus topology, there is no concept of crossing a node boundary. When you request TPUs, you do not get the entire TPU cluster or pod. Rather, you get only a small subset or slice. To make this possible, Google developed Optical Circuit Switch (OCS) to be able to rewire physical connections on the fly (entirely in software), allowing the same hardware to serve different workload shapes without any physical reconfiguration.

NOTE: Efficiency TPU versions use a 2D torus topology, while Performance TPUs leverage a 3D torus architecture to give you maximum performance with minimum latency.

Precision and range

A floating-point number consists of three parts:

• Sign: Positive or negative (represented by the first bit)
• Exponent: Determines the range of the number
• Mantissa: Significant digits of a floating-point number, which determines the accuracy

Traditionally, the standard for high-performance computing was FP32. When AI researchers moved to FP16 to save memory, they lost more than just accuracy: they also lost range. FP32 uses 8 bits for the exponent, while FP16 uses only 5. The 3-bit difference in the exponent bits amount to an almost 10³⁴ difference in range (FP32 has a range of 3.4 x 10³⁸, while FP16 only has a range of 6.5 x 10⁴). In deep learning, where gradients can be incredibly tiny, FP16 often suffers from underflow (meaning numbers are being rounded to 0 because it is too small for FP16’s range to represent), requiring a technical workaround called “loss scaling” to keep the math stable.

Google Brain (now part of Google DeepMind) solved this invented Brain Floating Point (bfloat16), which simply shifted 3 bits from the mantissa to exponents:

By sacrificing precision for range, bfloat offers the same massive range as FP32, but with the reduced memory and bandwidth of FP16. A huge reason for why this works is that deep learning models are surprisingly noise-tolerant and having more training stability is for more important than having a few extra decimal places of precision. Today, bfloat16 is the de facto standard for training modern LLMs on NVIDIA’s GPUs and Google’s TPUs.

Why XLA matters

Standard Python execution typically takes an eager approach. This means it executes each step as it is being encountered. This is great for debugging because you can insert print statements to inspect variables at any point.

XLA (Accelerated Linear Algebra), on the other hand, is a domain-specific JIT compiler. Instead of executing steps one by one, it analyzes the entire execution graph to optimize and fuse operations before they run. This lazy approach creates an initial warm-up delay, but once the training starts, it is significantly faster than standard methods. The tradeoff is transparency: your step-by-step Python code becomes an optimized “black box”, making traditional debugging strategies more difficult. This is why TPUs are powerhouses for massive enterprise training, while GPUs remain the flexible choice for quick experimentation.

NOTE: Though XLA was built for TPUs, it’s also made its way into the NVIIA GPU ecosystem via tools such as JAX and torch.compile since PyTorch 2.0.

TorchTPU

Google is engineering a TorchTPU stack that will provide native PyTorch support. This would allow you to run models in TPUs as they are with full support for native PyTorch features. TorchTPU is currently in preview, and once it becomes GA, you can be sure I’ll be diving deeper into it!

Code example

I’m including a couple of Jupyter notebooks that I ran via Antigravity + Colab plugin for you to try yourself:

• Fashion MNIST with GPU and CUDA
• Fashion MNIST with TPU and XLA

As you will see from the results below, TPU is indeed faster. However, my example isn’t large enough or complex enough to really showcase the true speeds that TPU can bring.

NOTE: I have a Colab Pro account which affords me access to additional GPUs and TPUs. The Colab free tier only includes NVIDIA T4 and TPU v5e-1

Interpreting training results

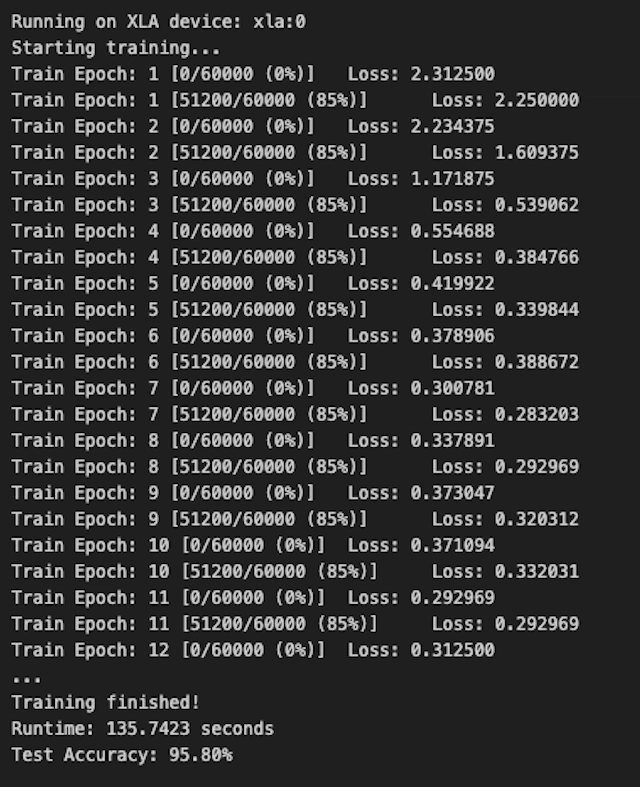

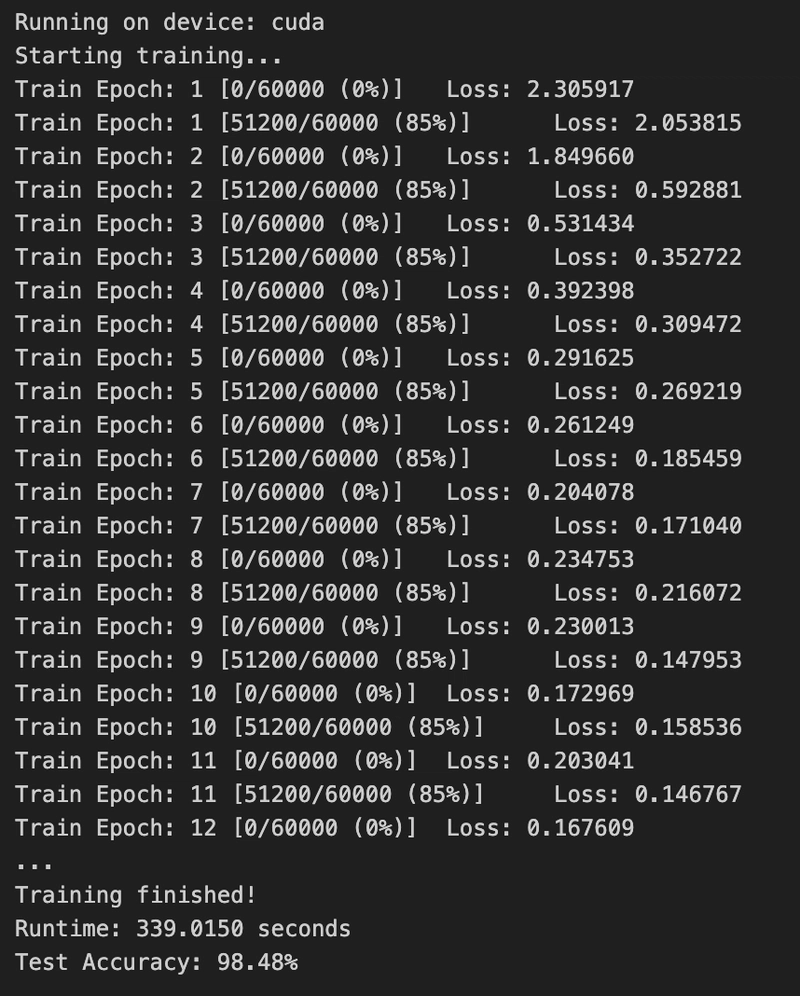

These are some benchmark trainings (epochs: 50, batch size: 512) in which I used a NVIDIA T4 GPU with (default) FP32 vs Google TPU v5e-1 (single chip TPU) with bfloat16. As expected, TPUs were faster but with lower precision:

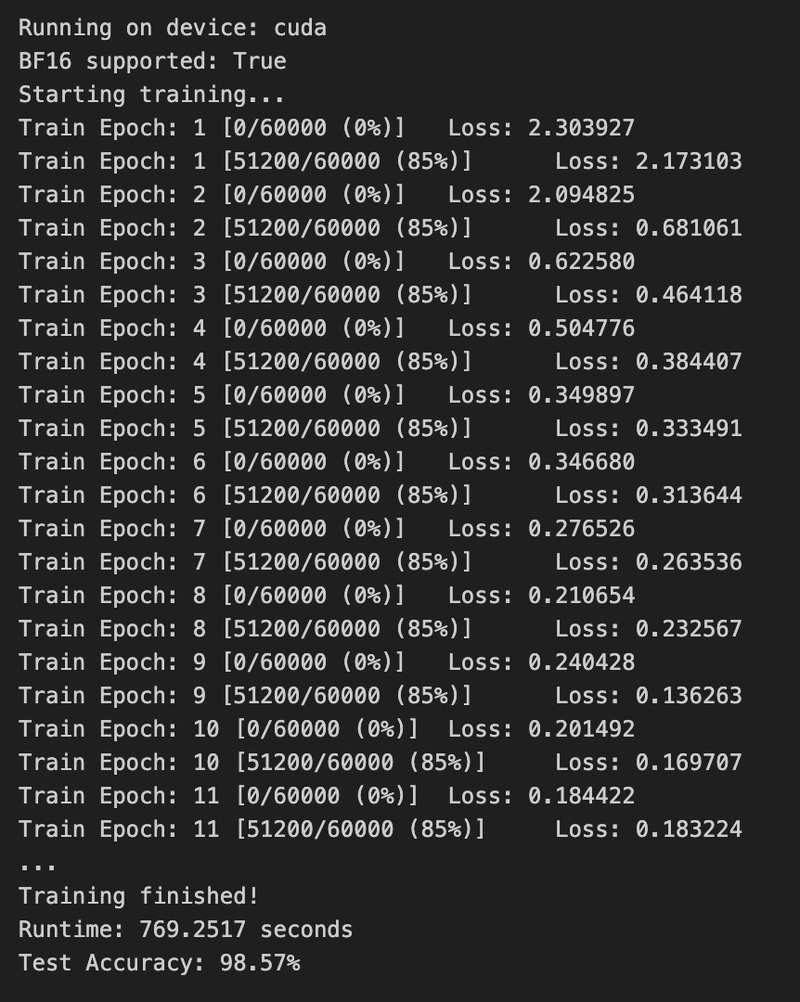

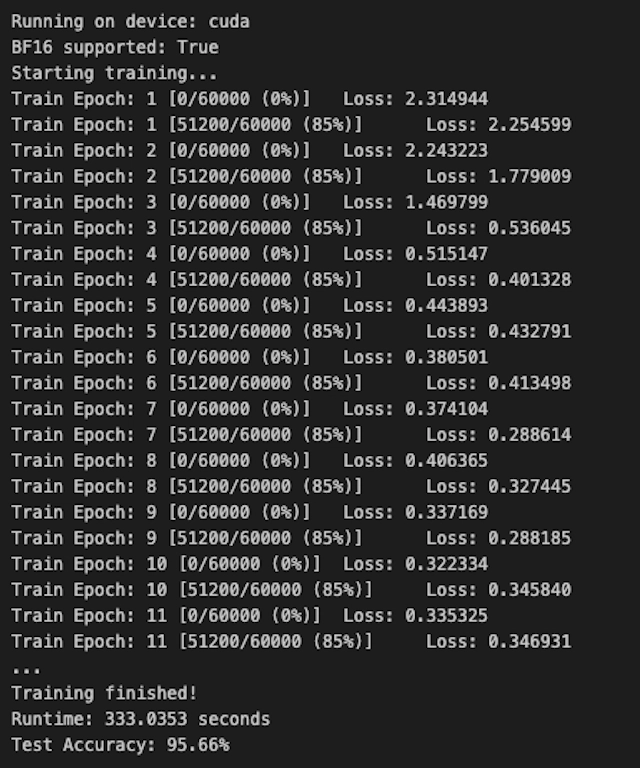

I then trained the same model using the T4 GPU but used bfloat16 but noticed a massive performance drop. This was due to the T4 being and older generate GPU that did not support blfloat natively and had to emulate which added a lot of overhead. Switching to a newer L4 GPU, I was able to see the (tiny) performance gain along with the reduced precision:

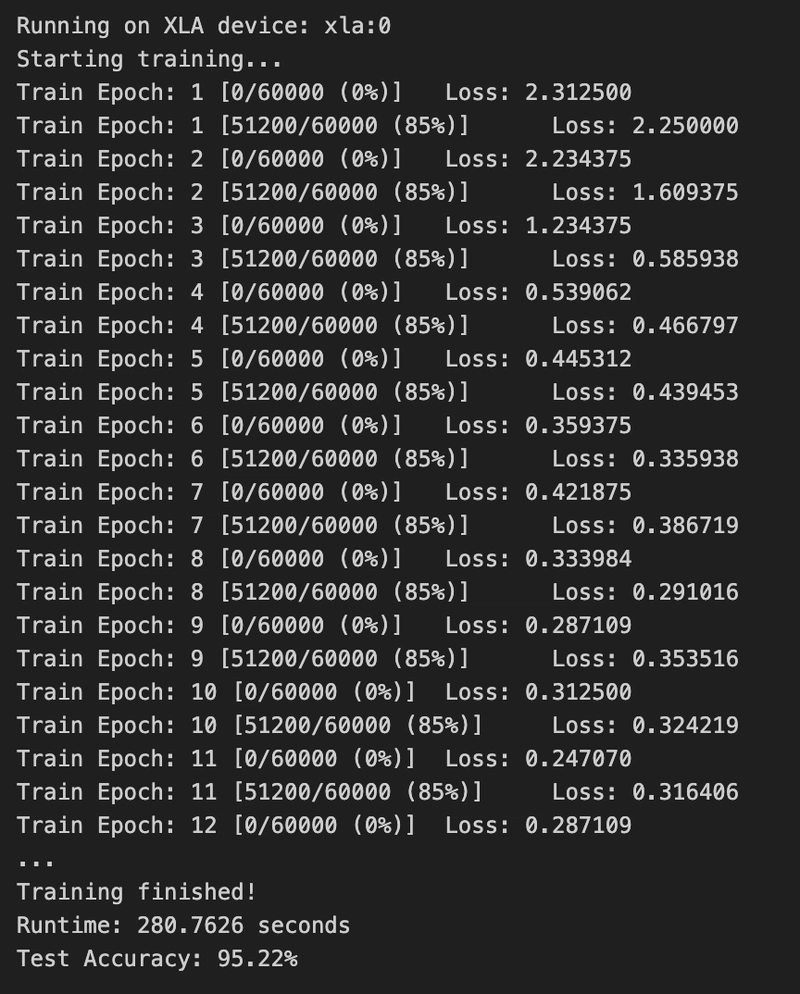

Finally, I thought I’d see how the training would perform on a newer TPU v6e-1 and I was blown away by the improvement:

Conclusion

Comparing GPUs and TPUs isn’t exactly apples-to-apples. They represent fundamentally different philosophies in architecture, memory management, and execution.

In the modern enterprise, it isn’t usually a matter of choosing one over the other, but rather using each where it shines. For rapid iteration and smaller workloads, the flexibility of GPUs is unmatched. However, once a project hits a certain scale, the domain-specific architecture of the TPU becomes the clear winner in efficiency and throughput.

TPUs are as fast as they are because they are a specialized one-trick pony, but to truly harness that power requires a deeper understanding of the stack. The biggest challenge isn’t often the compute itself, but rather: “How do I feed data to the TPUs fast enough and efficiently enough so that it doesn’t become the bottleneck?” and ensuring your input pipeline is fast enough so that the hardware doesn’t sit idle.

In future posts, I’ll dive deeper into these advanced concepts — from optimizing data pipelines to mastering distributed training across large TPU pods.

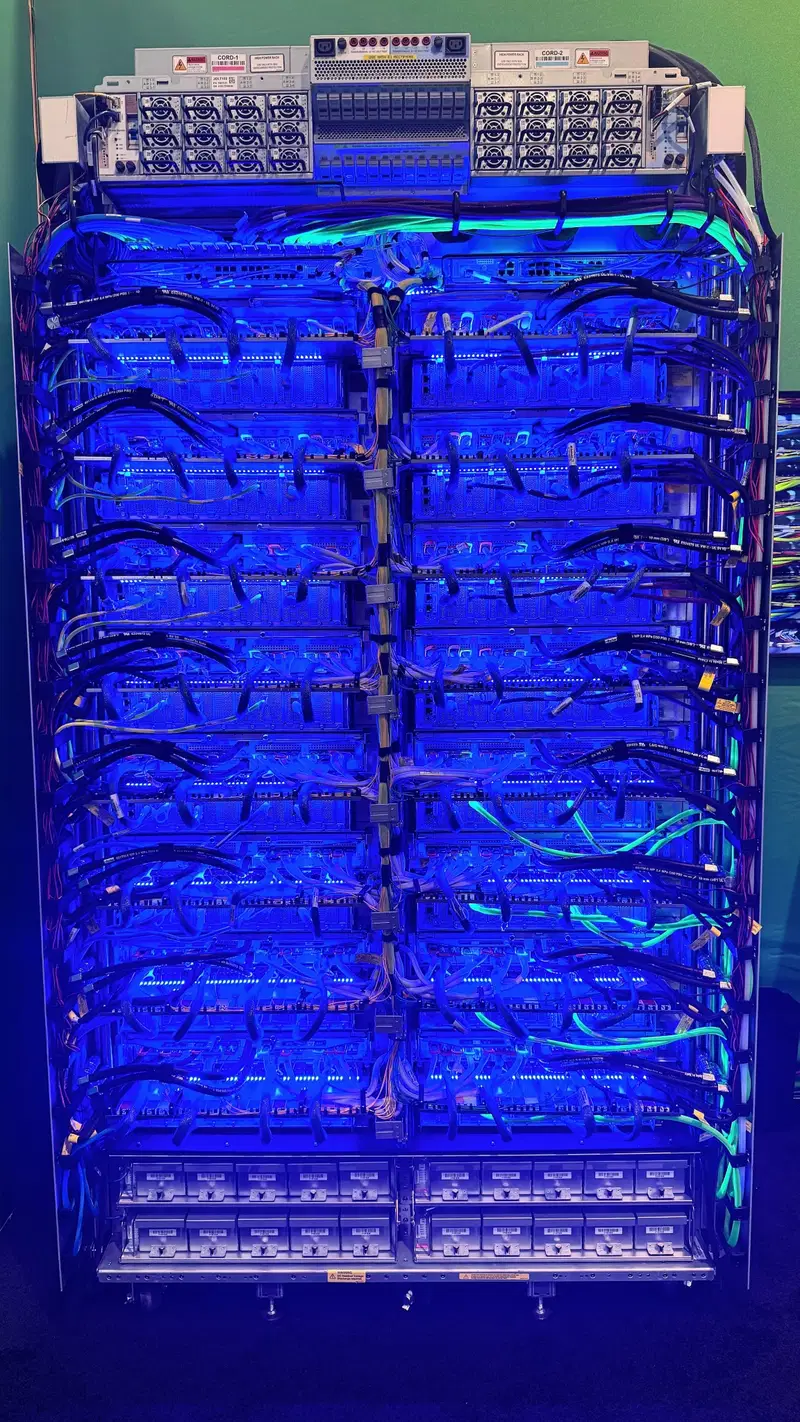

BONUS: Google’s 8th-generation TPUs announced at Google Next
