NanoPi_R5C ArcBox Config

参考 https://wiki.friendlyelec.com/wiki/index.php/NanoPi_R5C/zh

资源特性

• SoC: Rockchip RK3568B2
  • CPU: Quad-core ARM Cortex-A55 CPU, up to 2.0GHz
  • GPU: Mali-G52 1-Core-2EE，supports OpenGL ES 1.1, 2.0, and 3.2, Vulkan 1.0 and 1.1, OpenCL 2.0 Full Profile
  • VPU: 4KP60 H.265/H.264/VP9 video decoder, 1080P60 H.264/H.265 video encoder
  • NPU: Support 0.8T
• RAM: 4GB LPDDR4X
• Flash: 32GB eMMC
• Ethernet: two PCIe 2.5Gbps Ethernet
• USB: two USB 3.2 Gen 1 Type-A ports
• HDMI:
  • support HDMI1.4 and HDMI2.0 operation
  • support up to 10 bits Deep Color modes
  • support up to 1080p@120Hz and 4096x2304@60Hz
  • support 3-D video formats
• M.2 Key E: PCIe2.1 x1, USB 2.0 x1, supports M.2 WiFi and Bluetooth Module.
• microSD: support UHS-I
• Debug: one Debug UART, 3 Pin 2.54mm header, 3.3V level, 1500000bps
• LEDs: 4 x GPIO Controlled LED (SYS, WAN, LAN, WL)
• others:
  • 2 Pin 1.27/1.25mm RTC battery input connector for low power RTC IC HYM8563TS
  • MASK button for eMMC update
  • One User button
• Power supply: USB-C 5V input
• PCB: 8 Layer, 58x58x1.6mm
• Ambient Operating Temperature: 0℃ to 70℃

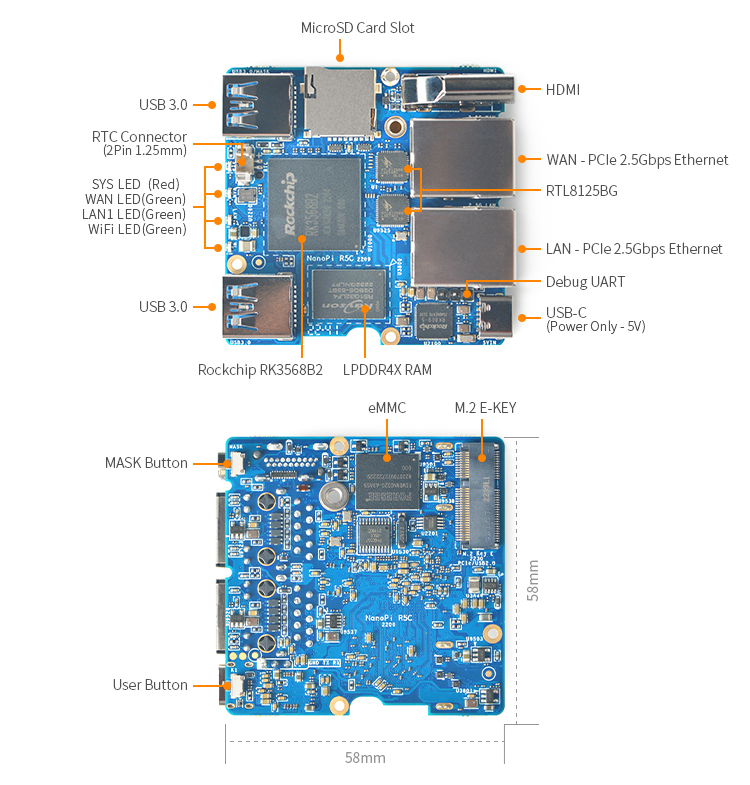

接口布局

• Debug UART Pin Spec

3.3V level signals, 1500000bps Pin#AssignmentDescription 1 GND 0V 2 UART2DBG_TX output 3 UART2DBG_RX intput

• USB Port

Each USB 3.2 Gen 1 port has 1.4A overcurrent protection.

• RTC

RTC backup current is 0.25μA TYP (VDD =3.0V, TA =25℃).Connector P/N: Molex 53398-0271

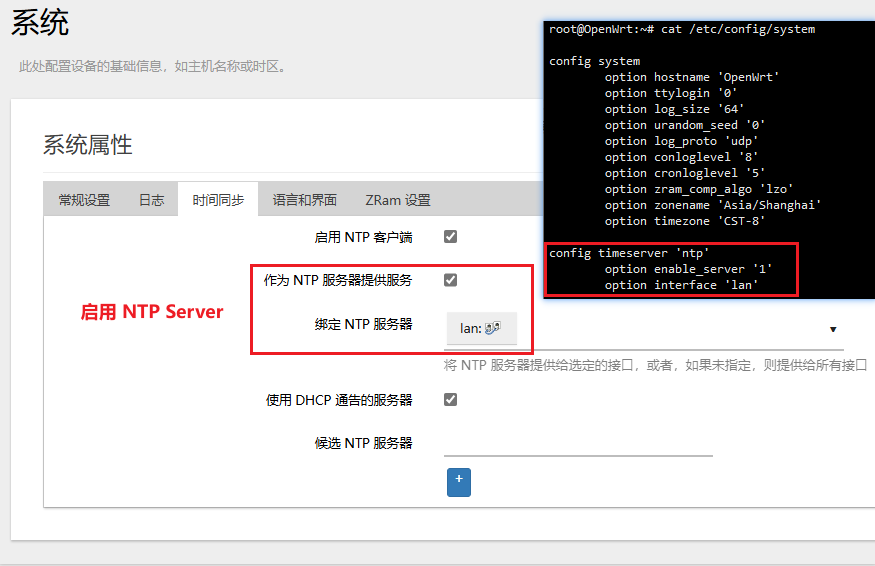

OpenWrt 中启用 NTP Server

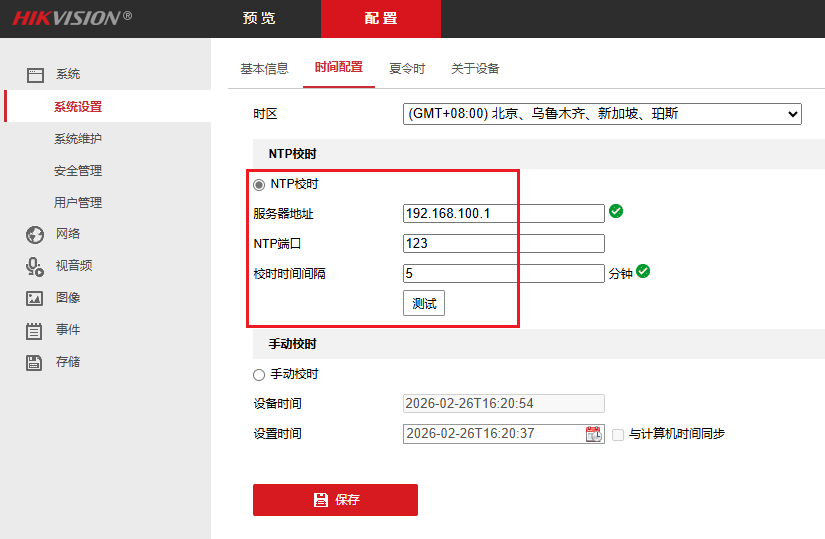

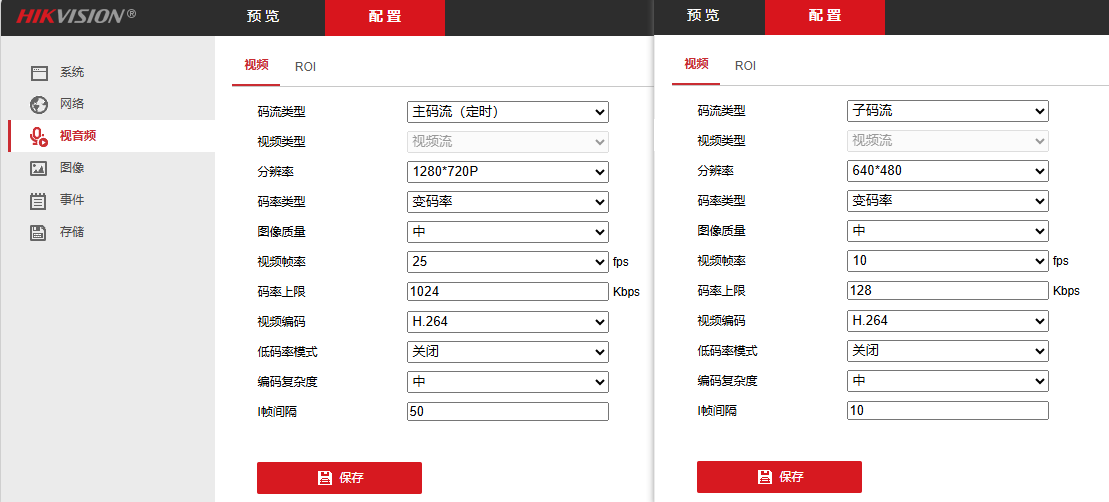

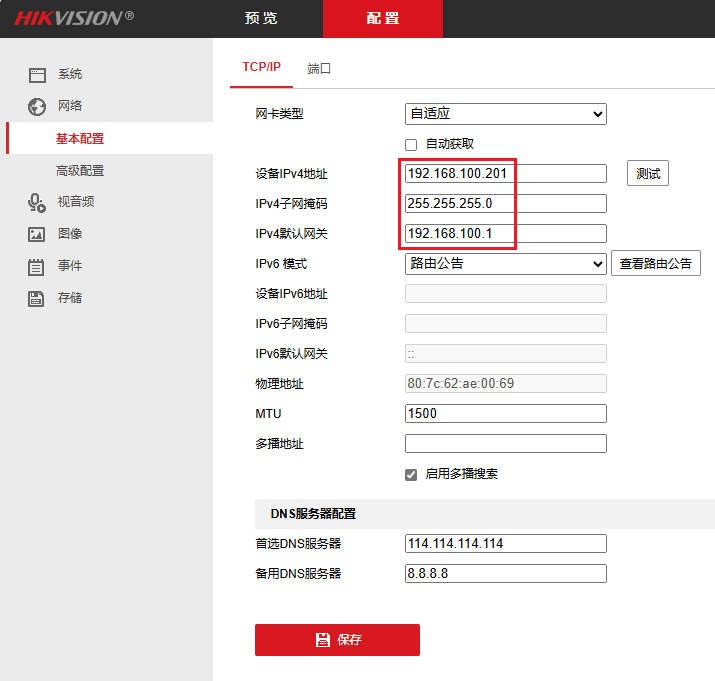

Hikvision 摄像头配置

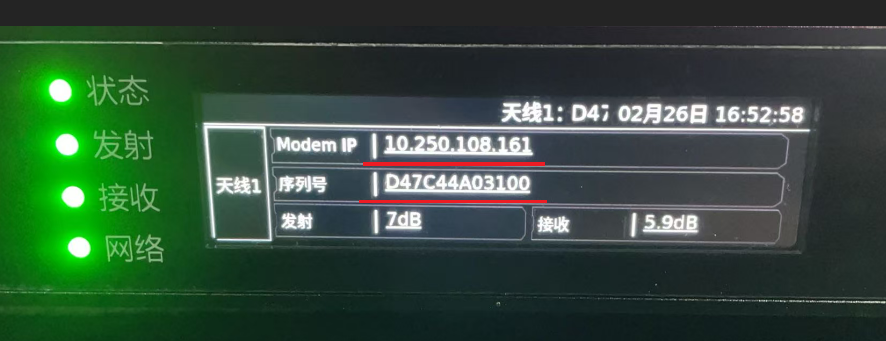

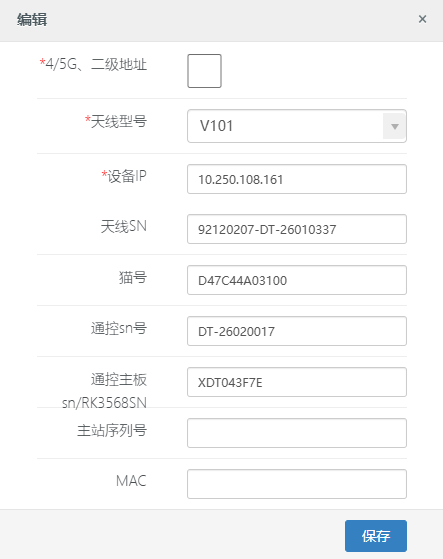

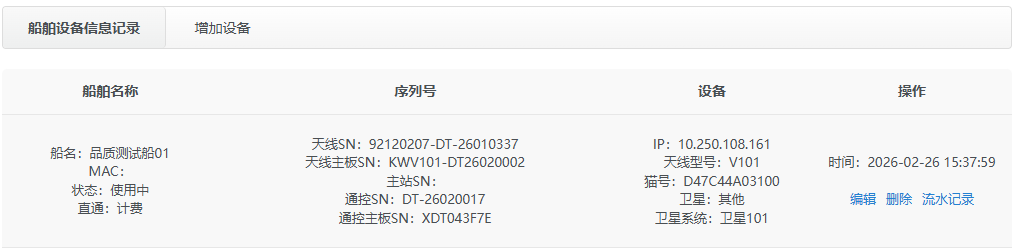

前置管理平台关联设备信息

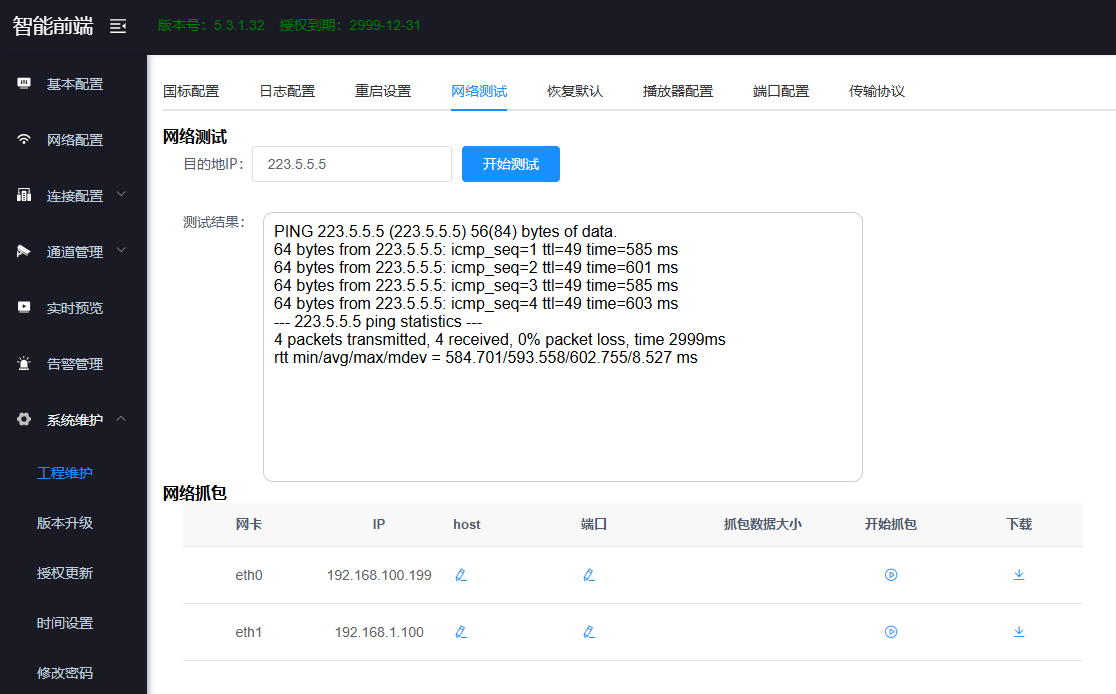

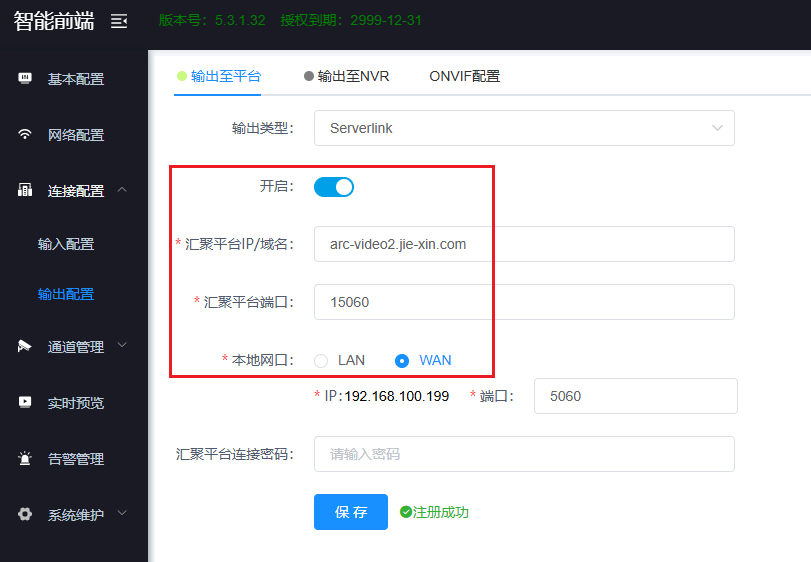

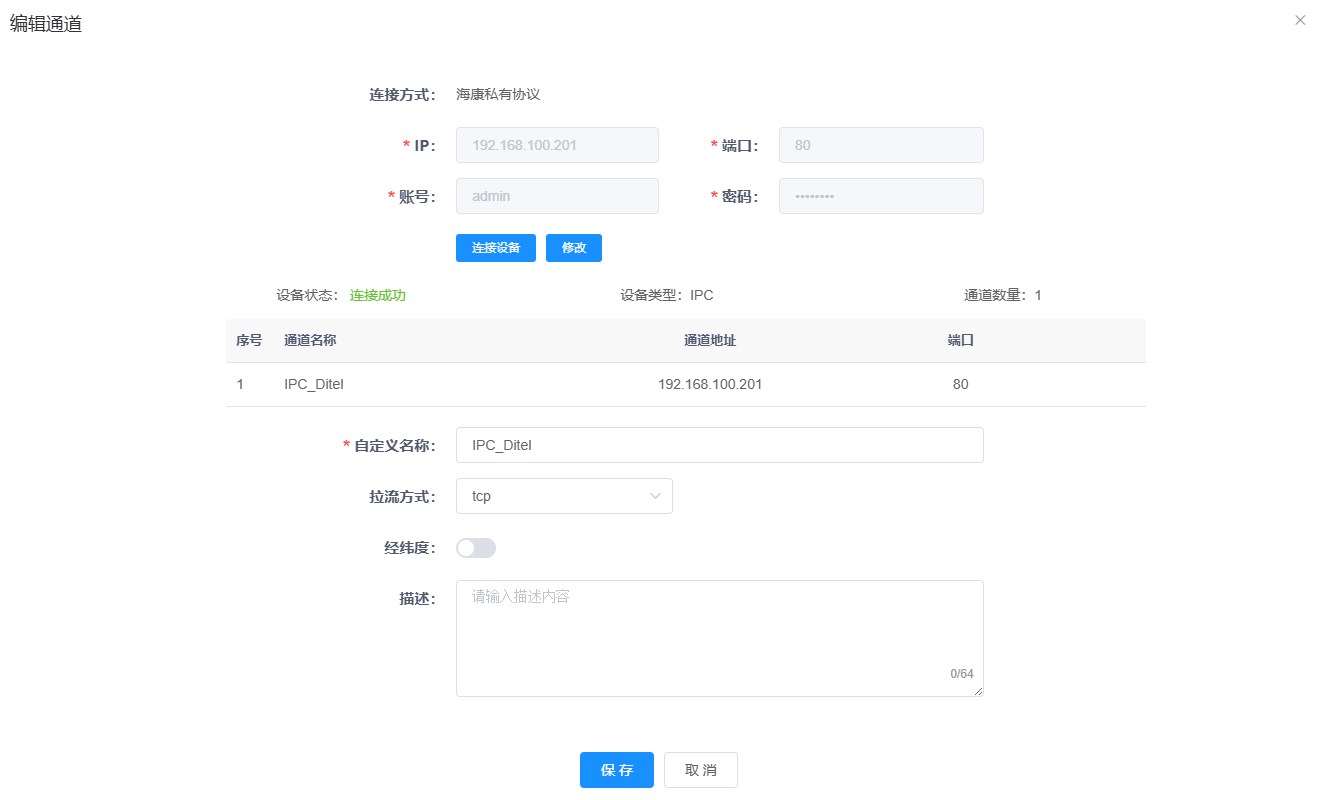

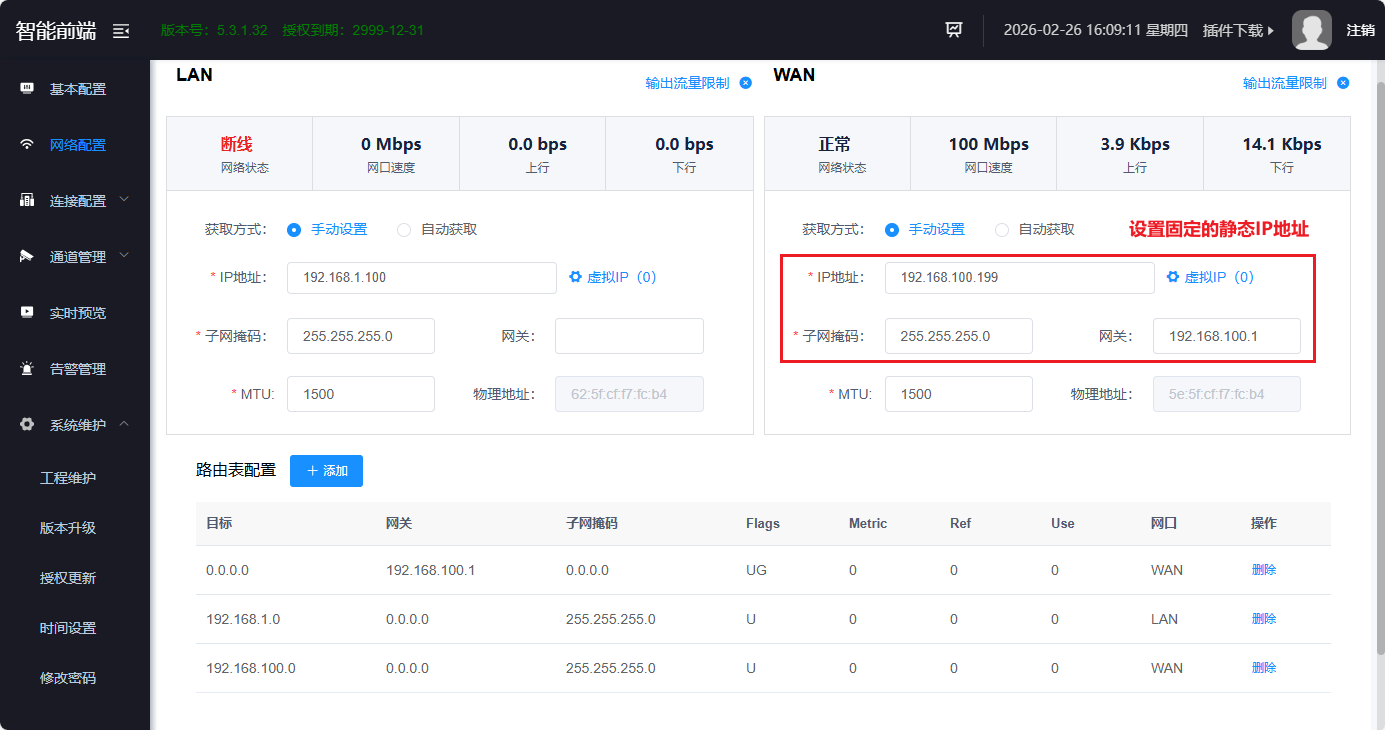

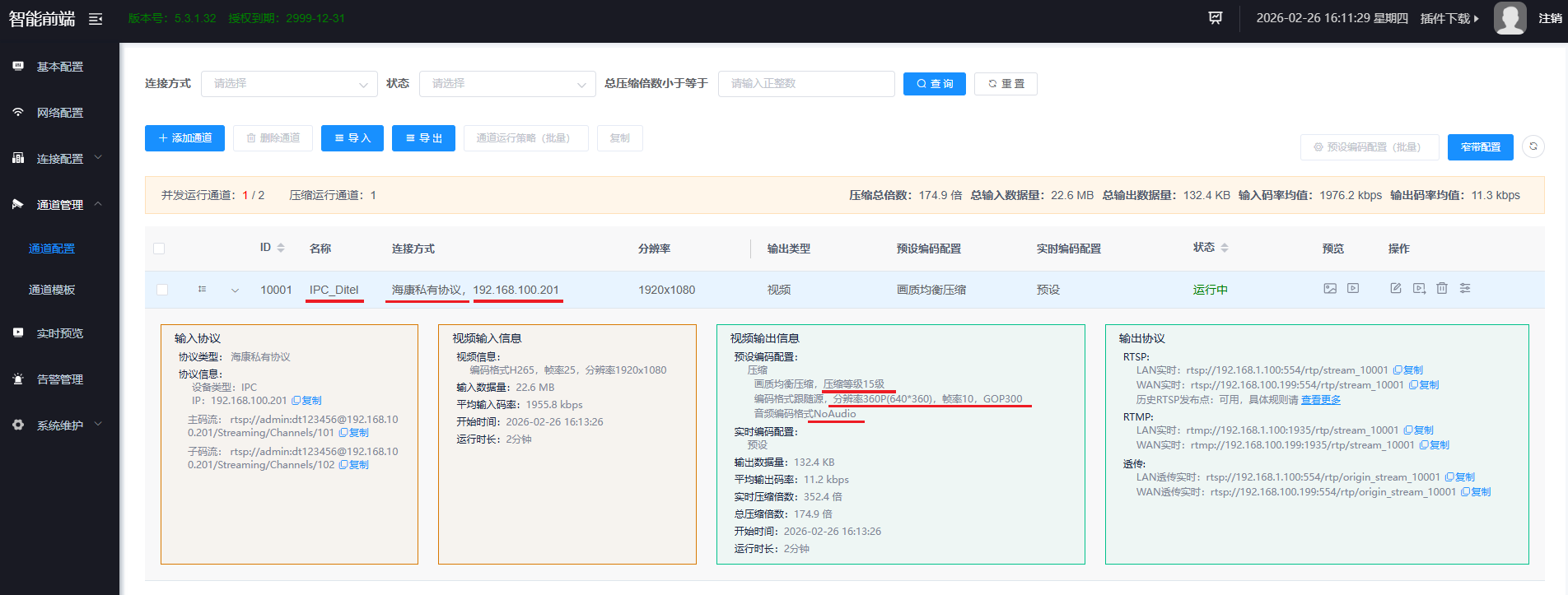

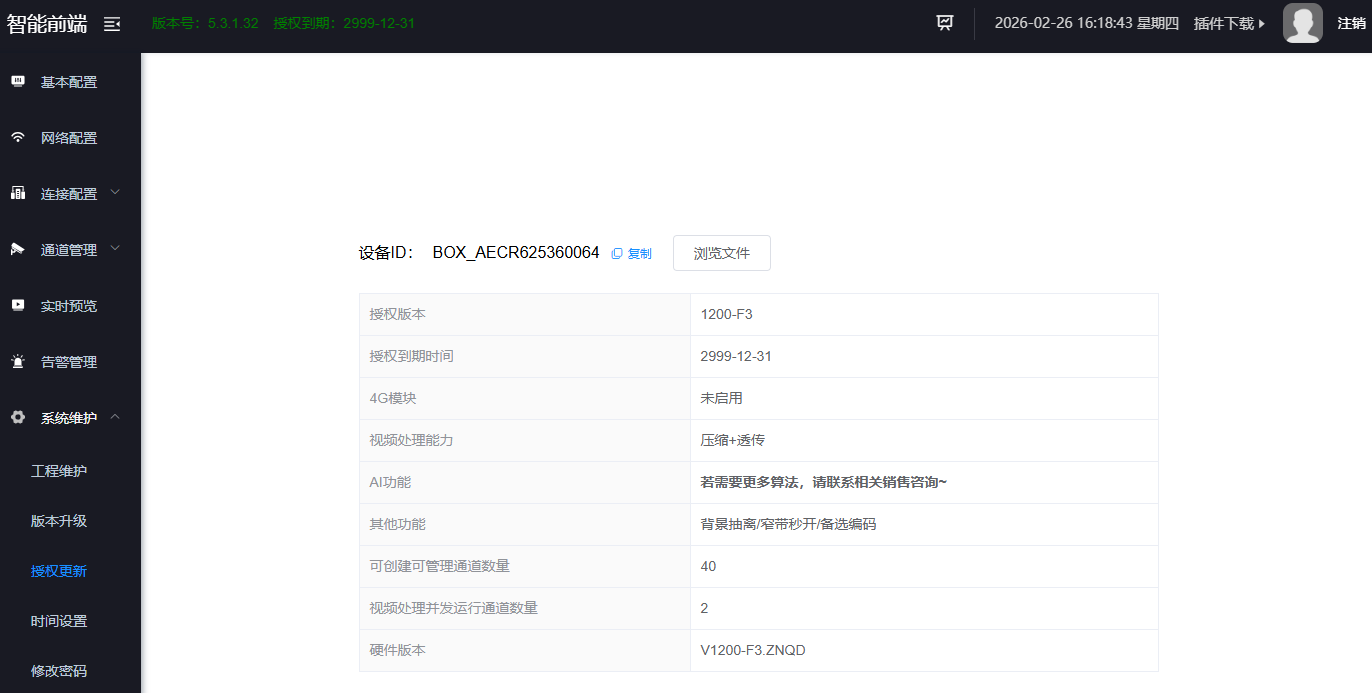

ArcBox WebGUI Config

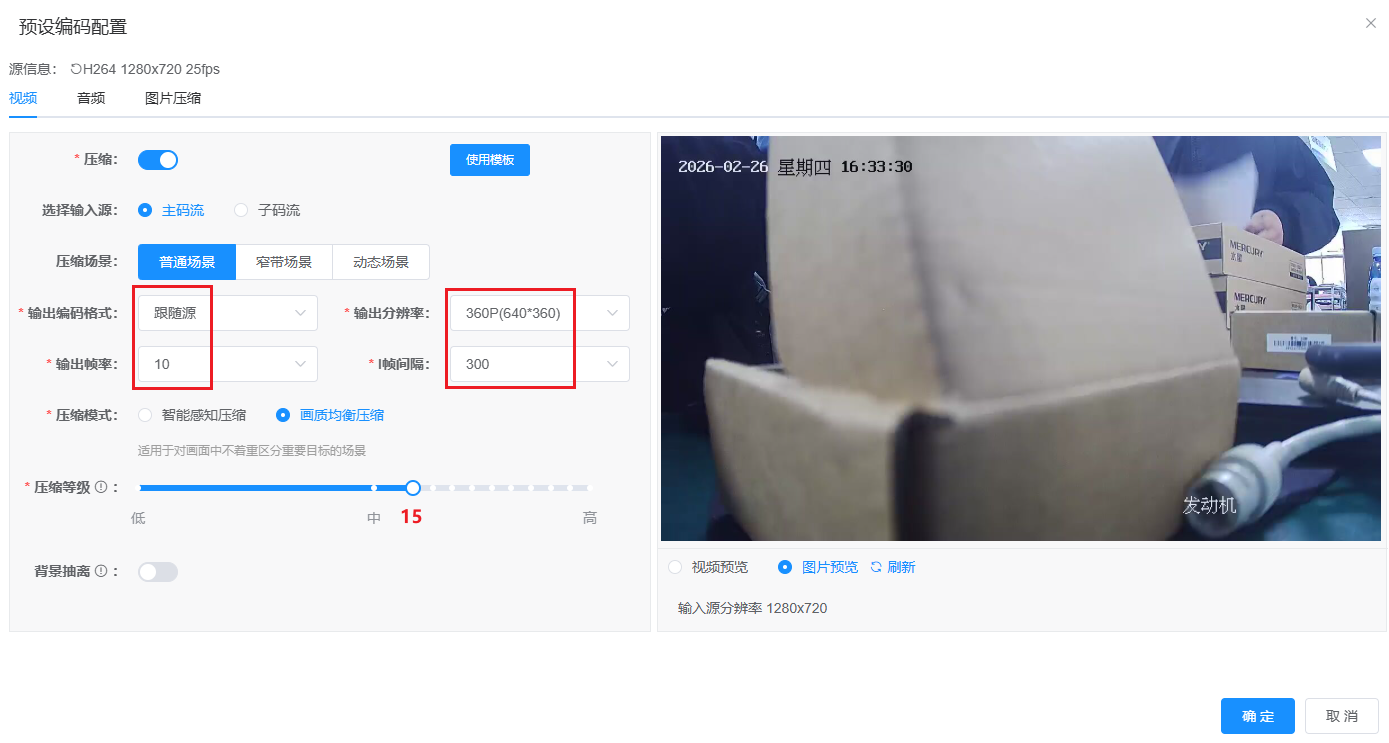

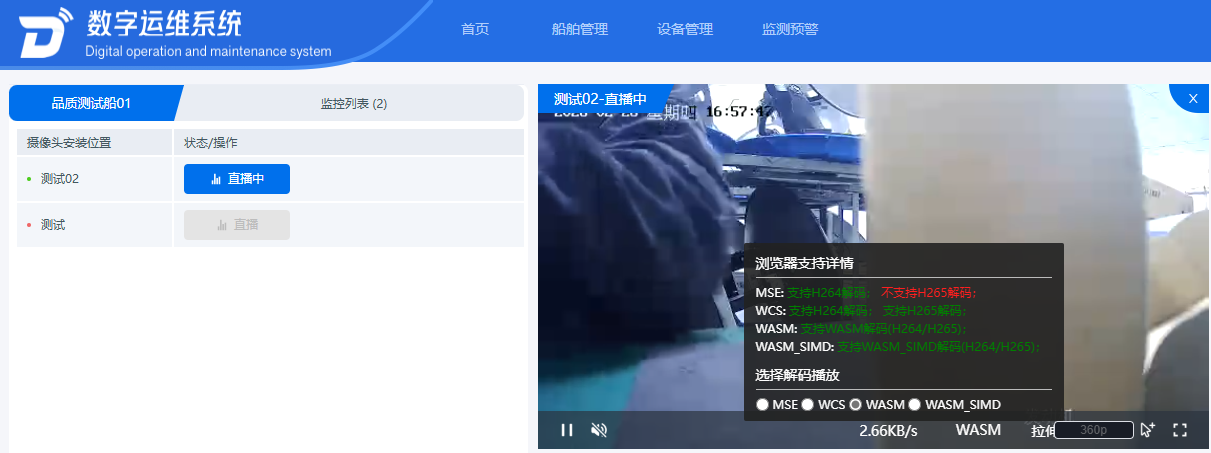

视频拉流确认
