Be Quiet! has cultivated its reputation through an unwavering commitment to acoustic refinement across its product portfolio. The German manufacturer's approach prioritizes noise reduction without sacrificing performance, a philosophy that resonates with enthusiasts who reject the notion that powerful systems must operate at audible volumes. Their engineering focuses on thermal efficiency, premium bearing technologies, and intelligent fan control algorithms that minimize acoustic output during typical operation.

We take a close look at the Pure Power 13 M 1200W to see if it earns a spot on our best power supplies list. This unit represents the company's latest effort in the high-wattage segment, targeting builders who require substantial power delivery without the advanced specifications and features of higher-end series. It provides capacity for demanding single-GPU configurations with considerable overhead for transient loads, a characteristic increasingly relevant as graphics cards demonstrate aggressive power excursion behavior.

The ATX 3.1 compliance ensures compatibility with current-generation hardware, particularly graphics cards utilizing the 12V-2x6 standard. The 1200W output positions this unit as a reliable foundation for premium systems, though the single 12V-2x6 connector reveals the intended use case centers on single, powerful graphics cards rather than multi-GPU arrangements.

Specifications and Design

In the Box

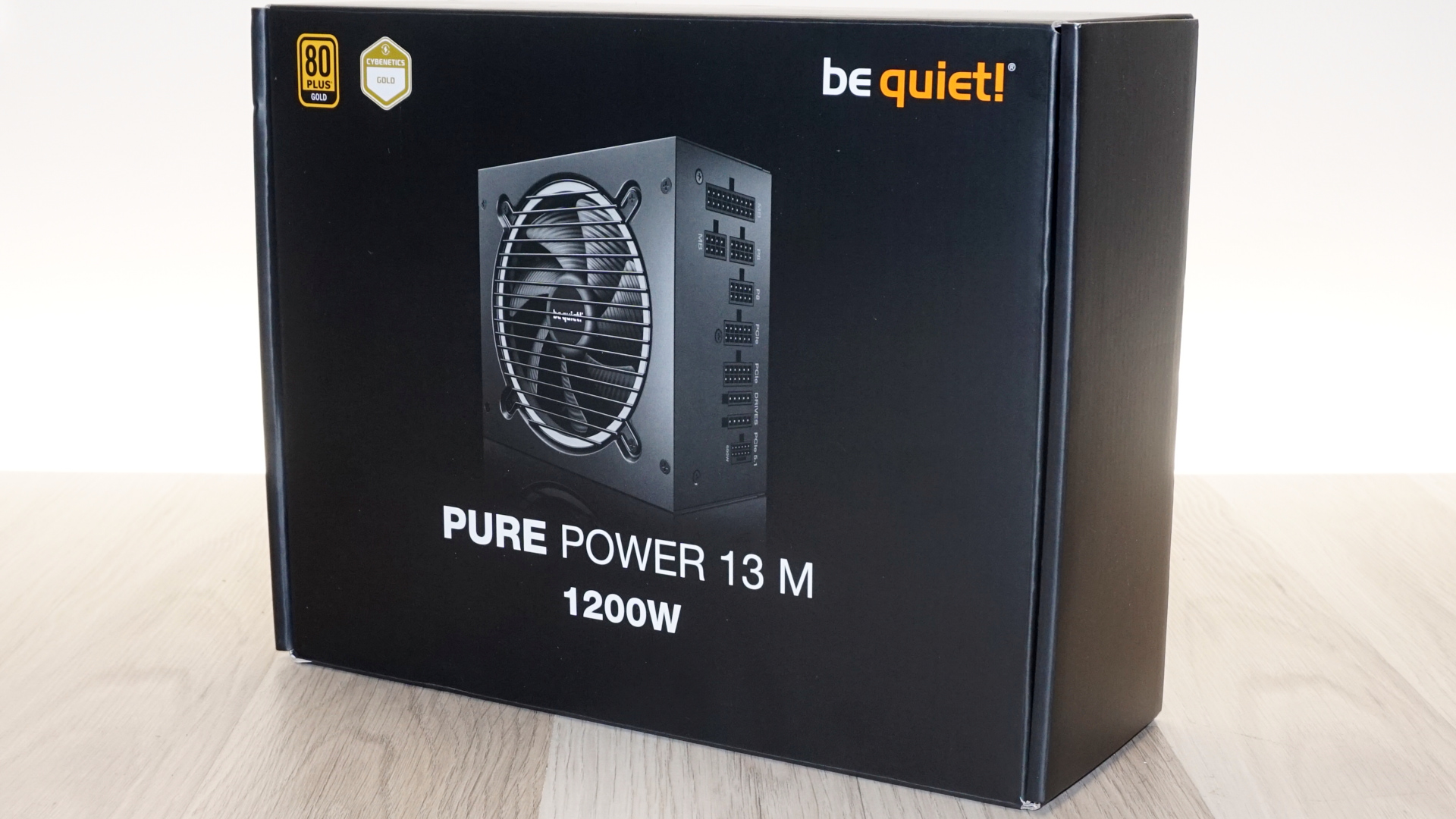

The Pure Power 13 M 1200W arrives in robust cardboard packaging featuring an all-black aesthetic. A picture of the unit dominates the front panel, while specifications populate the remaining surfaces. Internal protection employs a fabric pouch and foam packaging inserts, providing premium transit protection without excessive material waste.

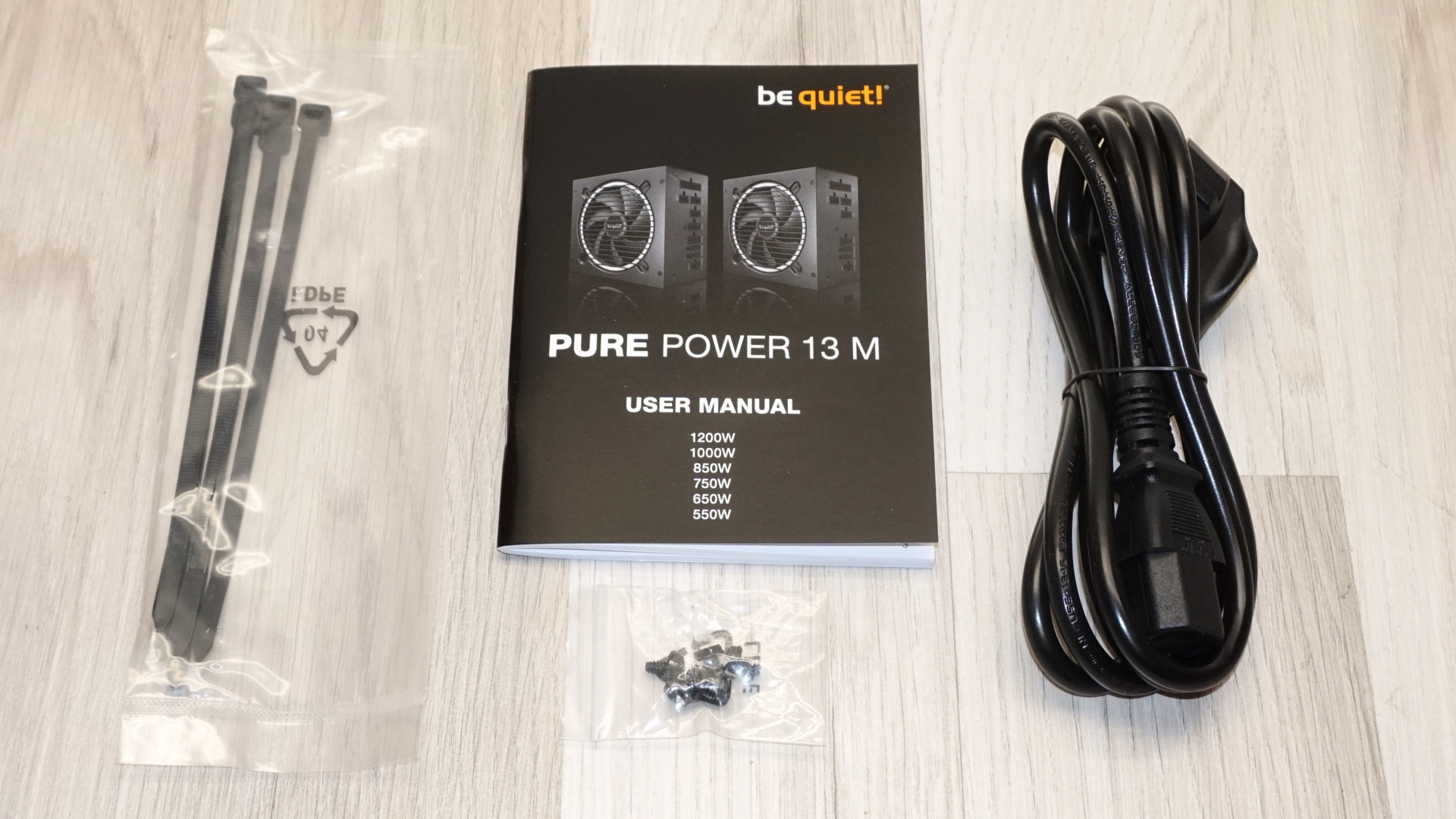

The included bundle remains almost rudimentary. Mounting screws, an AC power cable, and several wide cable ties constitute the entirety of accessories. A basic printed manual provides essential guidance to amateurs.

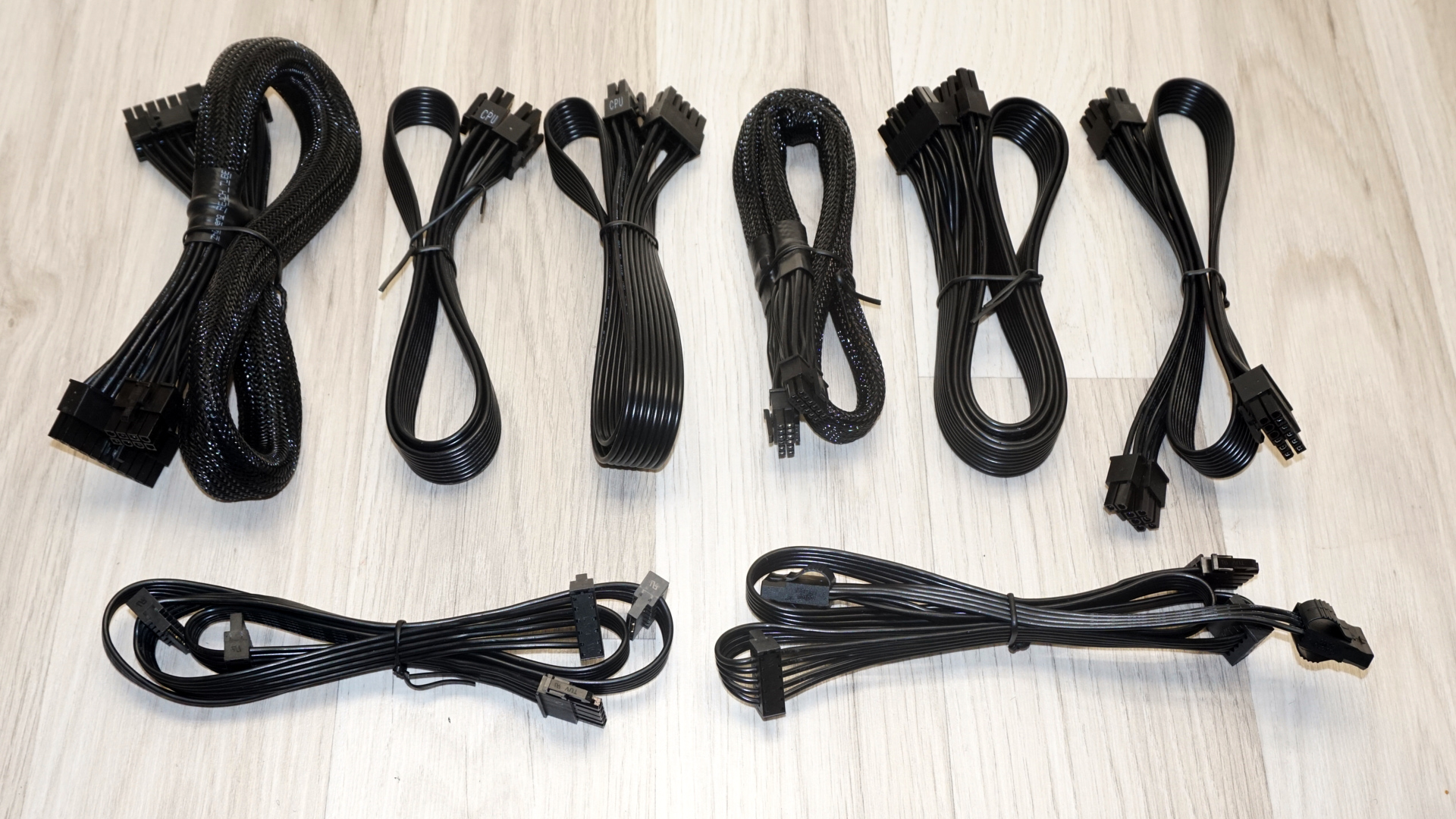

The fully modular cable configuration allows every cable to be removed, even the core 24-pin ATX connector. All cables feature uniform black coloring across connectors and wiring. Most cables employ a simpler flat ribbon-style construction, though the 24-pin ATX and 12V-2x6 cables feature black nylon sleeving. The 12V-2x6 connector carries a 600W rating – not that we expected any less from a unit this powerful. Actually, the presence of only one 12V-2x6 connector alongside four 6+2 pin PCI Express connectors represents a significant limitation for users contemplating multi-GPU configurations. The total connector count appears conservative for a 1200W unit, suggesting Be Quiet! positioned this primarily for single high-performance graphics card systems with substantial headroom rather than maximum connectivity density.

External Appearance

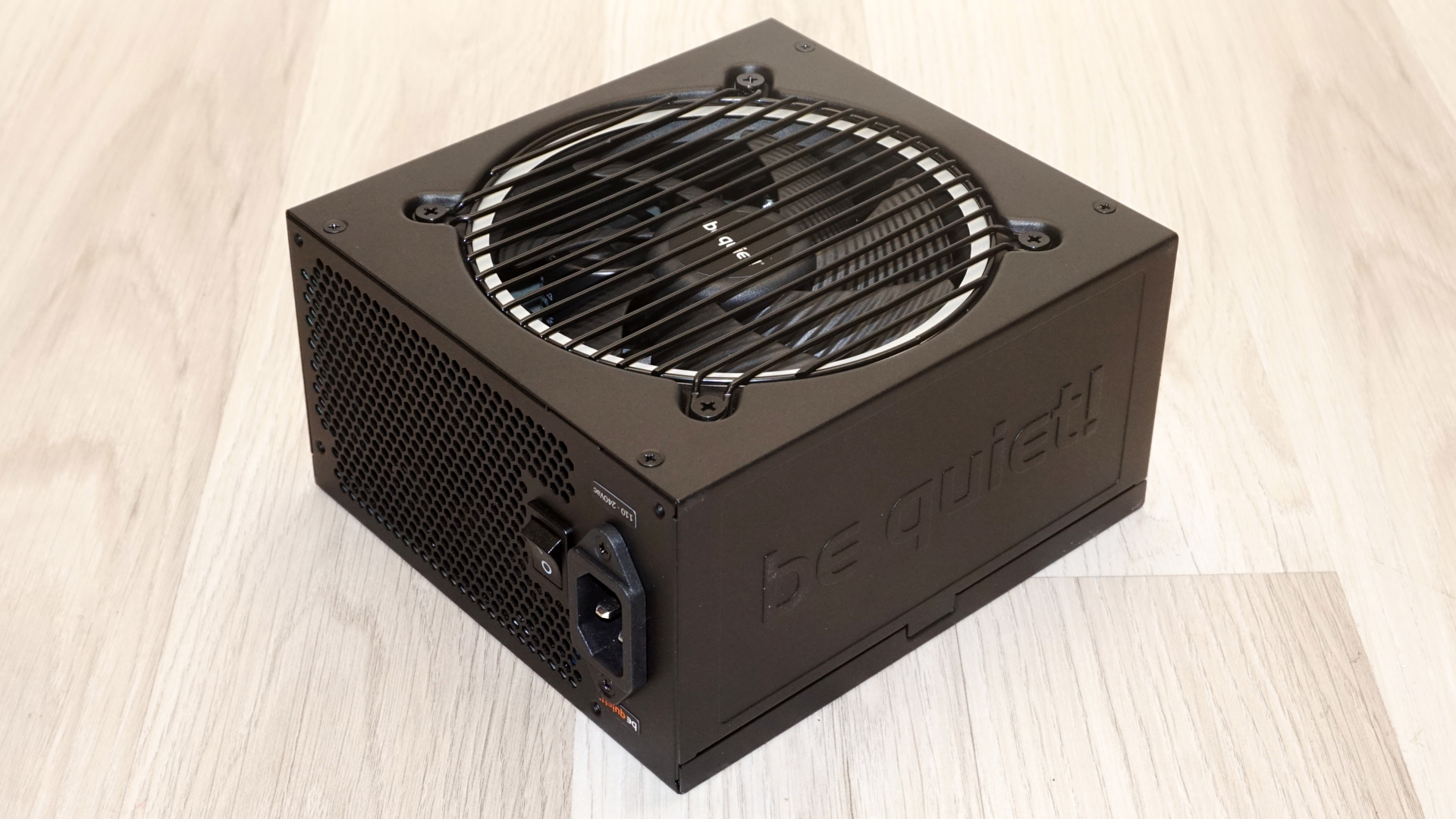

The chassis measures 86 mm × 150 mm × 160 mm (H × W × D), exceeding standard ATX dimensions by 10mm in depth. This 160mm length represents an acceptable compromise for a 1200W unit, providing adequate internal volume for component arrangement and thermal management without imposing severe case compatibility restrictions. The dimensions demonstrate appropriate scaling for the power output, comparing favorably to competing designs in this wattage class.

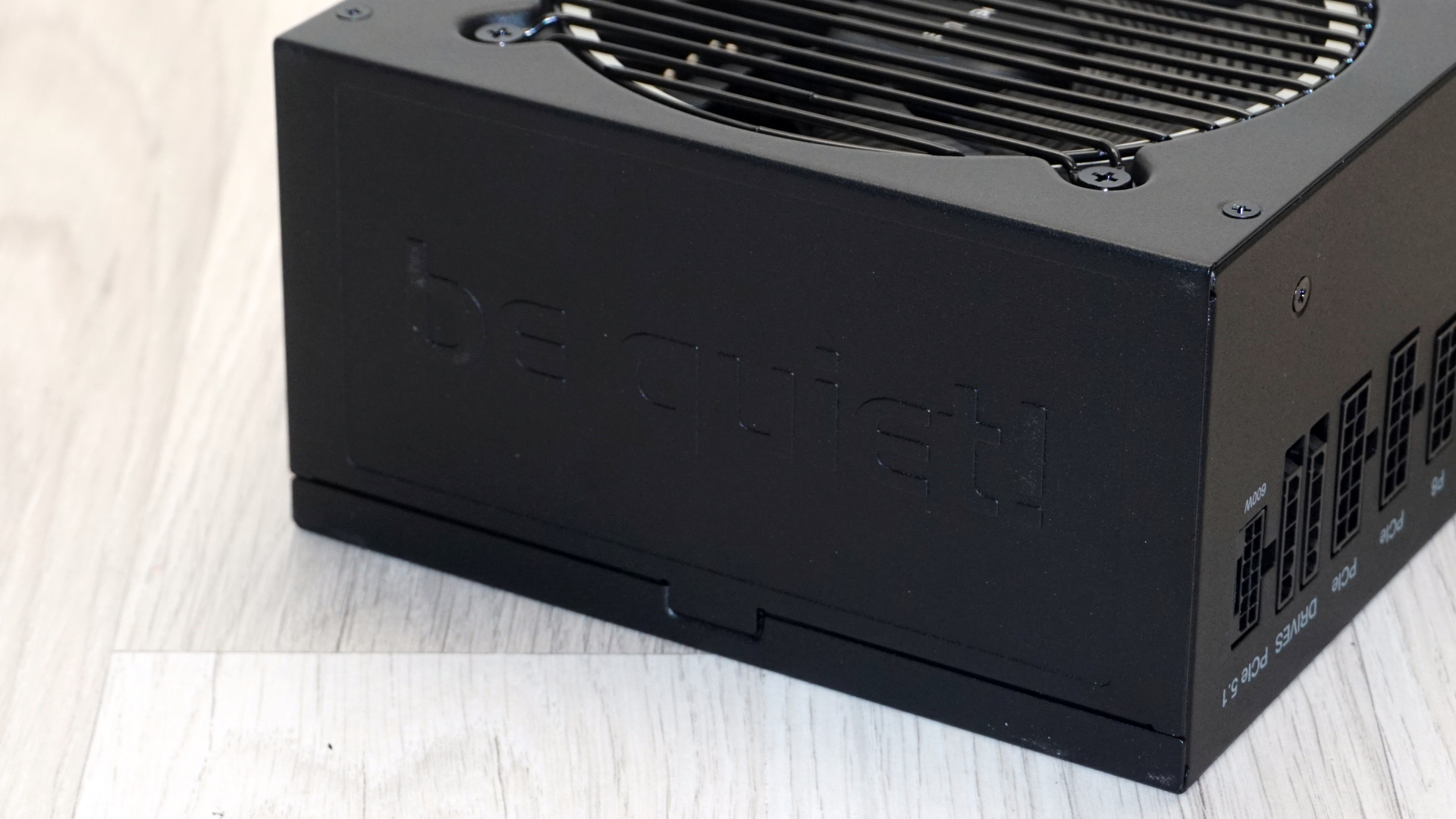

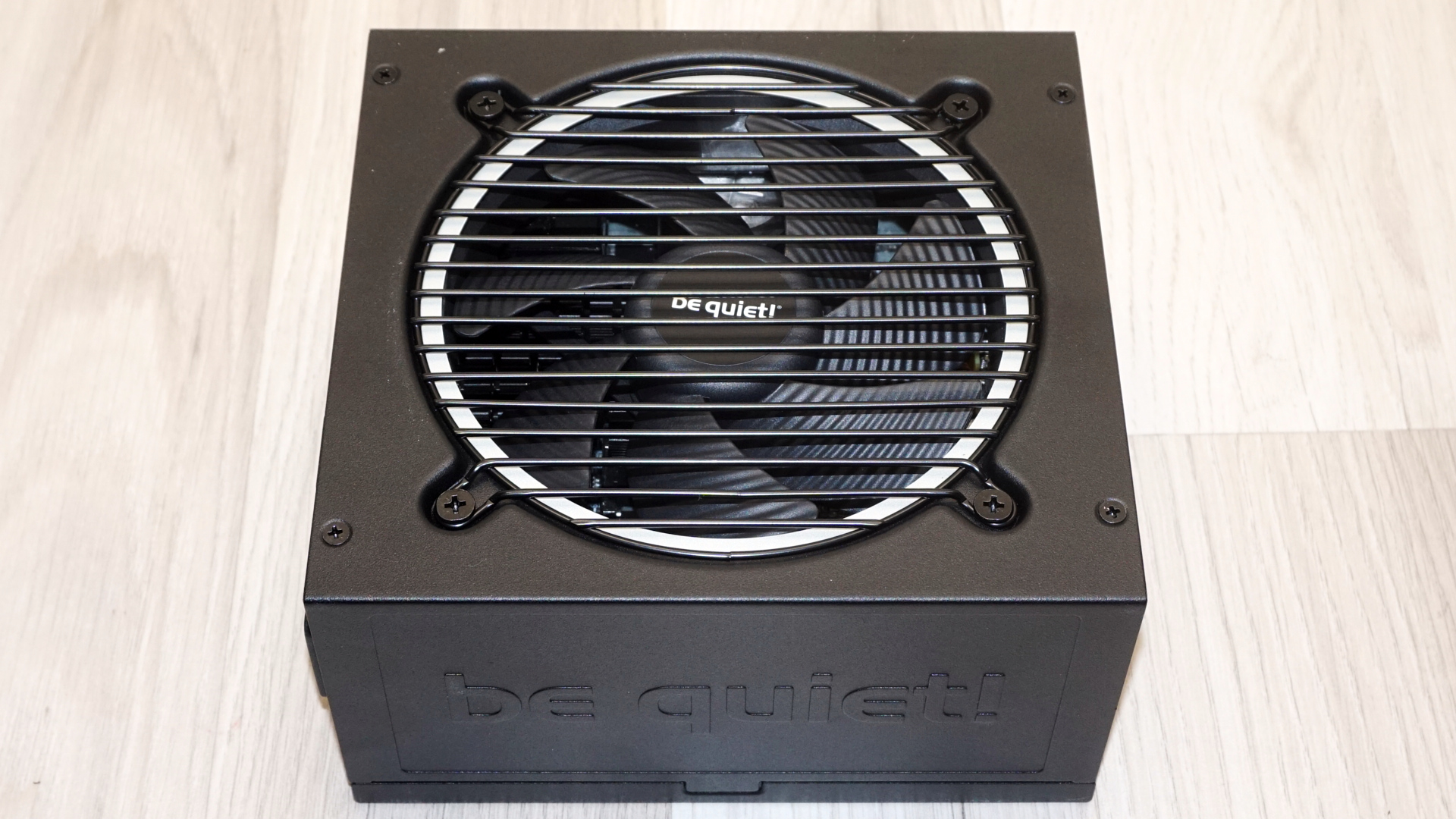

The external finish employs satin black chassis paint with excellent application quality. Be Quiet!'s embossed logo appears on the right side panel, providing subtle branding without visual excess. A removable parallel wire fan guard sits above the intake, with a white decorative ring beneath that creates modest visual contrast. The left side hosts the standard electrical specifications sticker. The top panel remains entirely unadorned, maintaining the minimalist aesthetic.


1

of

2

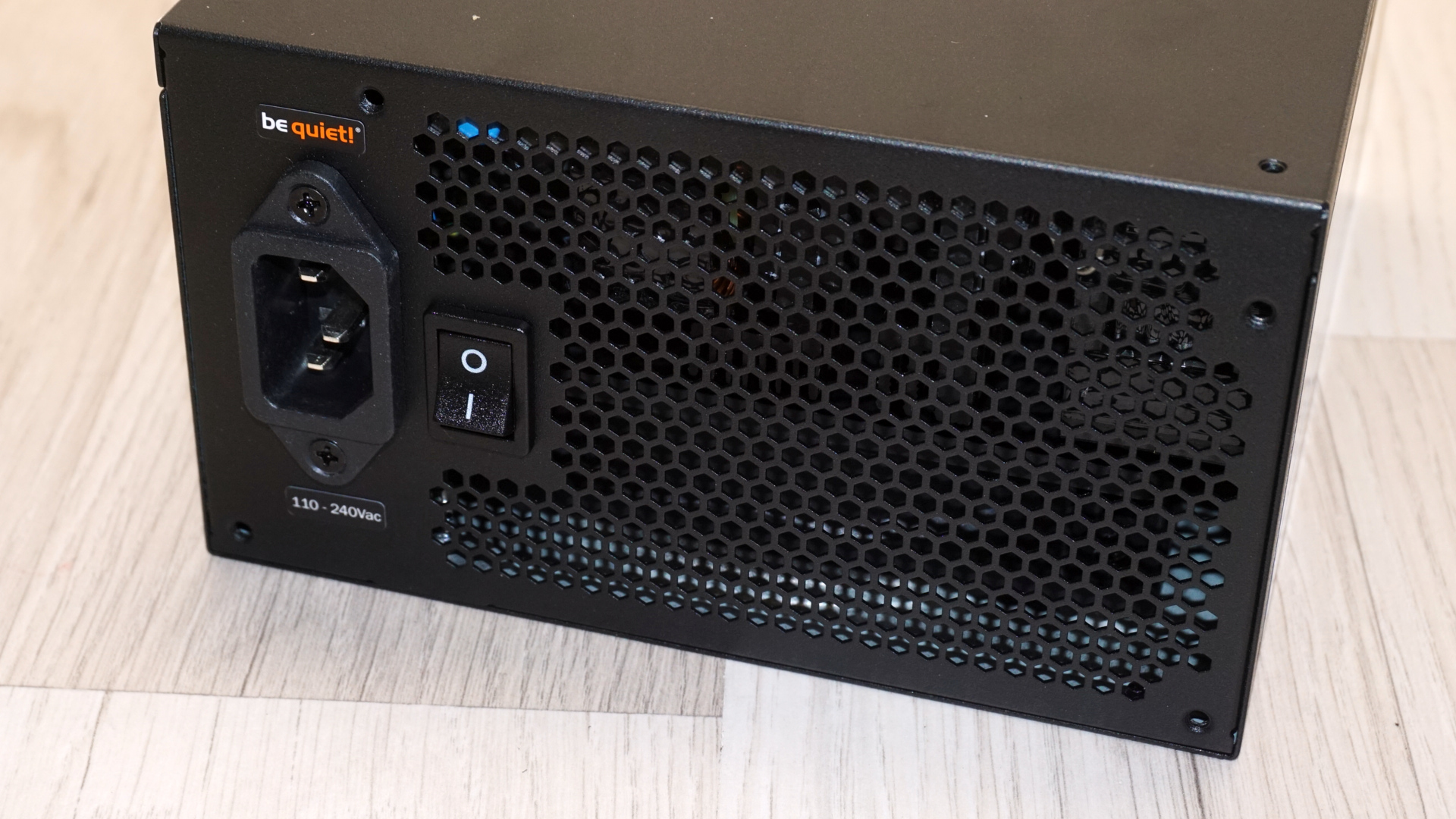

The rear panel houses the standard on/off switch adjacent to the AC receptacle. The front accommodates modular cable connectors with subtle white legends printed alongside each position. The marking clearly indicates connector types and power delivery capabilities, preventing confusion during installation. The 600W rating for the PCIe 5.1 connector receives appropriate notation, though with 1200W total capacity this specification becomes somewhat self-evident.


1

of

2

Internal Design

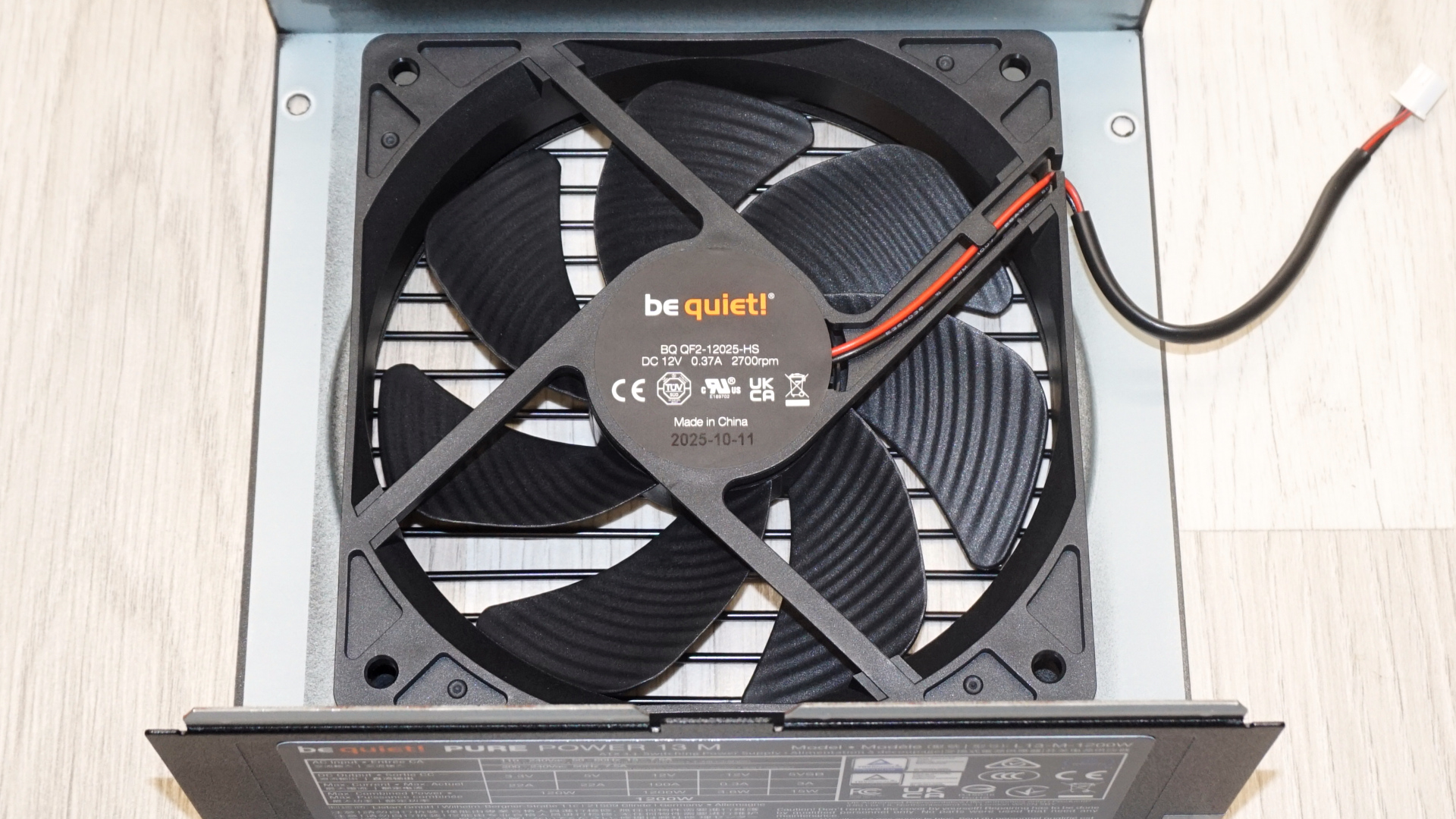

The heart of the cooling system employs a Be Quiet! QF2-12025-HS 120mm fan featuring a rifle bearing engine. Rifle bearings represent an enhanced sleeve bearing design with improved lubrication systems and structural refinements that extend operational lifespan compared to basic sleeve implementations. While they typically exhibit shorter lifespans than fluid dynamic bearing or ball bearing alternatives, they deliver excellent acoustic characteristics during operation. The maximum speed of 2700 RPM is extremely high and, hopefully, the fan will not be reaching this speed during normal operation. As a matter of fact, as we will find out in the following pages, the fan barely ever works at all under normal operating conditions.

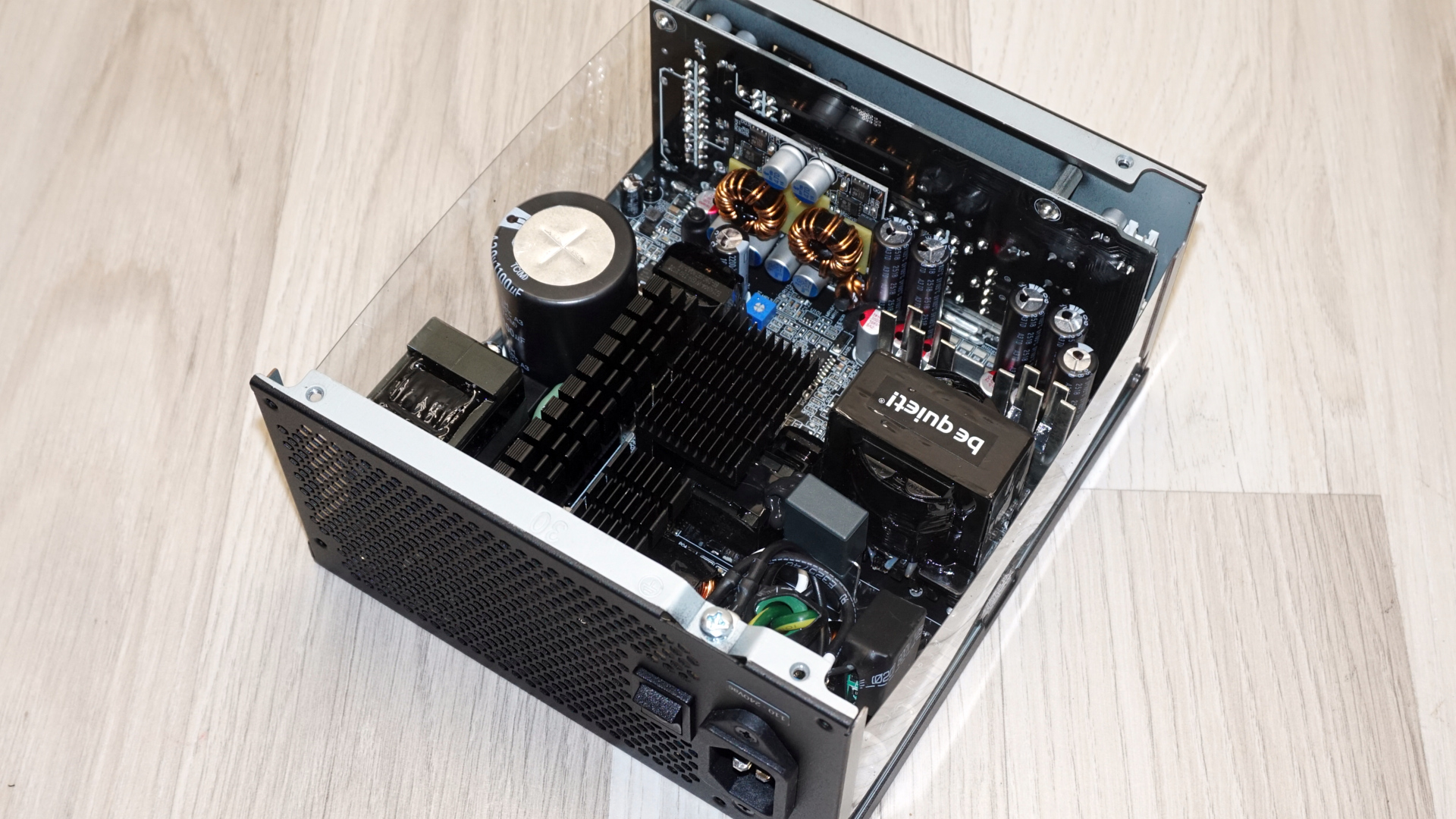

Channel Well Technologies (CWT) serves as the OEM behind this design, a significant departure from the FSP platform employed in the 650W model. CWT represents one of the industry's most reputable manufacturers, established in 1993 and behind platforms spanning all market segments. Their engineering expertise appears in products from mid-range offerings to extreme enthusiast units, with the company demonstrating remarkable versatility.


1

of

2

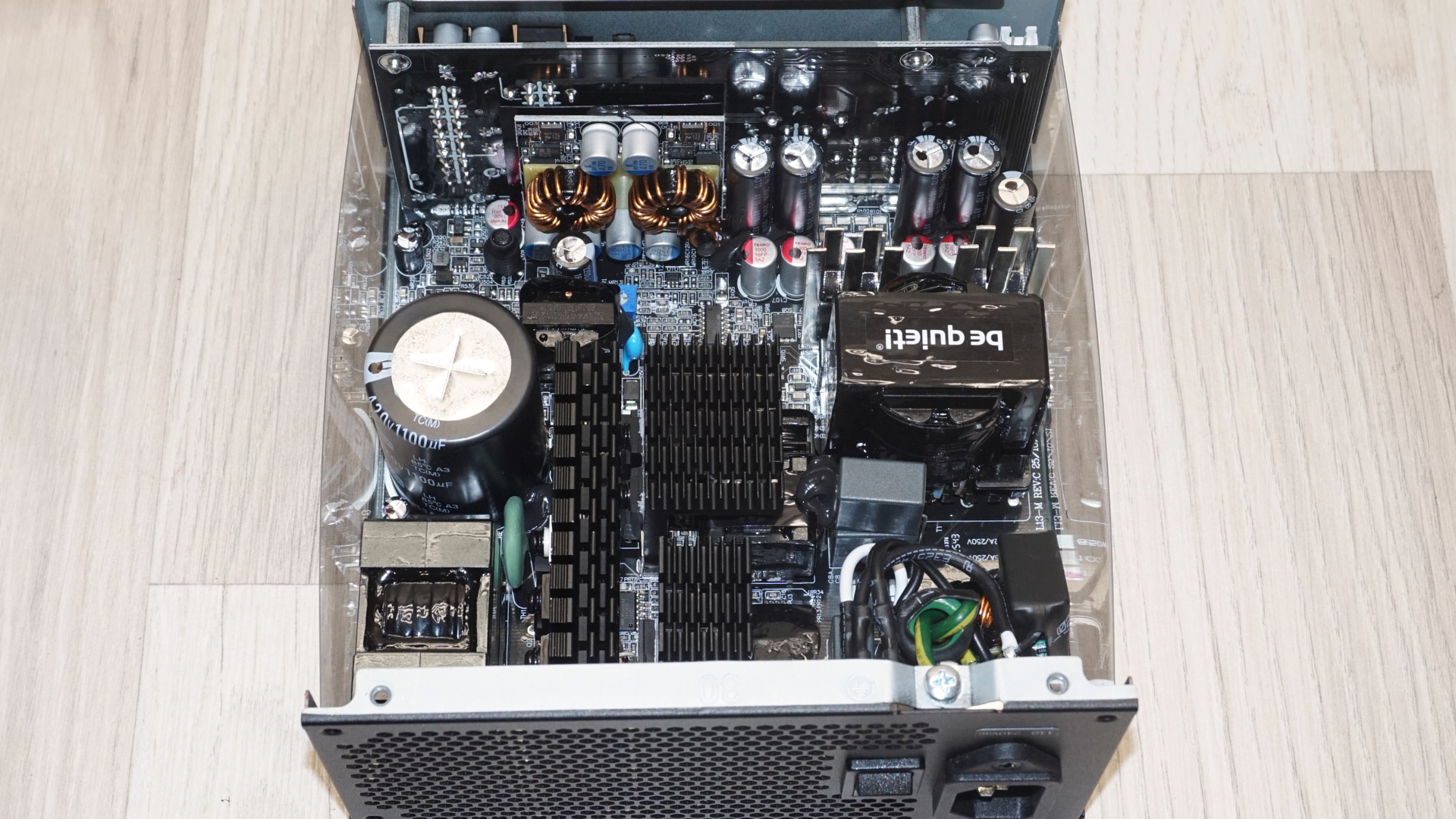

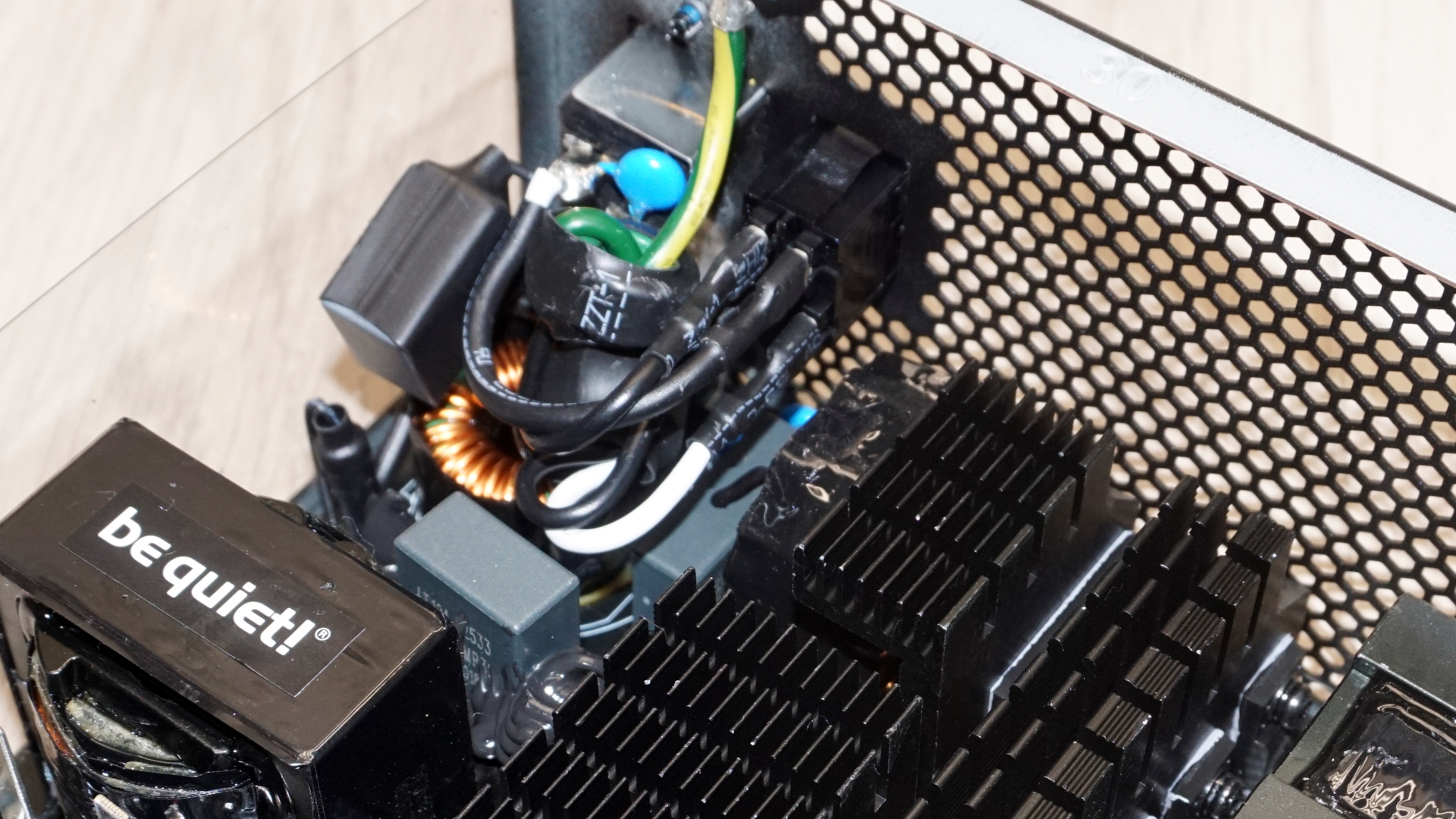

The platform employs contemporary topologies optimized for efficiency and thermal management. Input filtering comprises six Y capacitors, two X capacitors, and two filtering inductors. This comprehensive filtration stage exceeds minimum requirements, providing excellent noise suppression. Two rectifying bridges occupy a substantial heatsink immediately following the filtration stage.

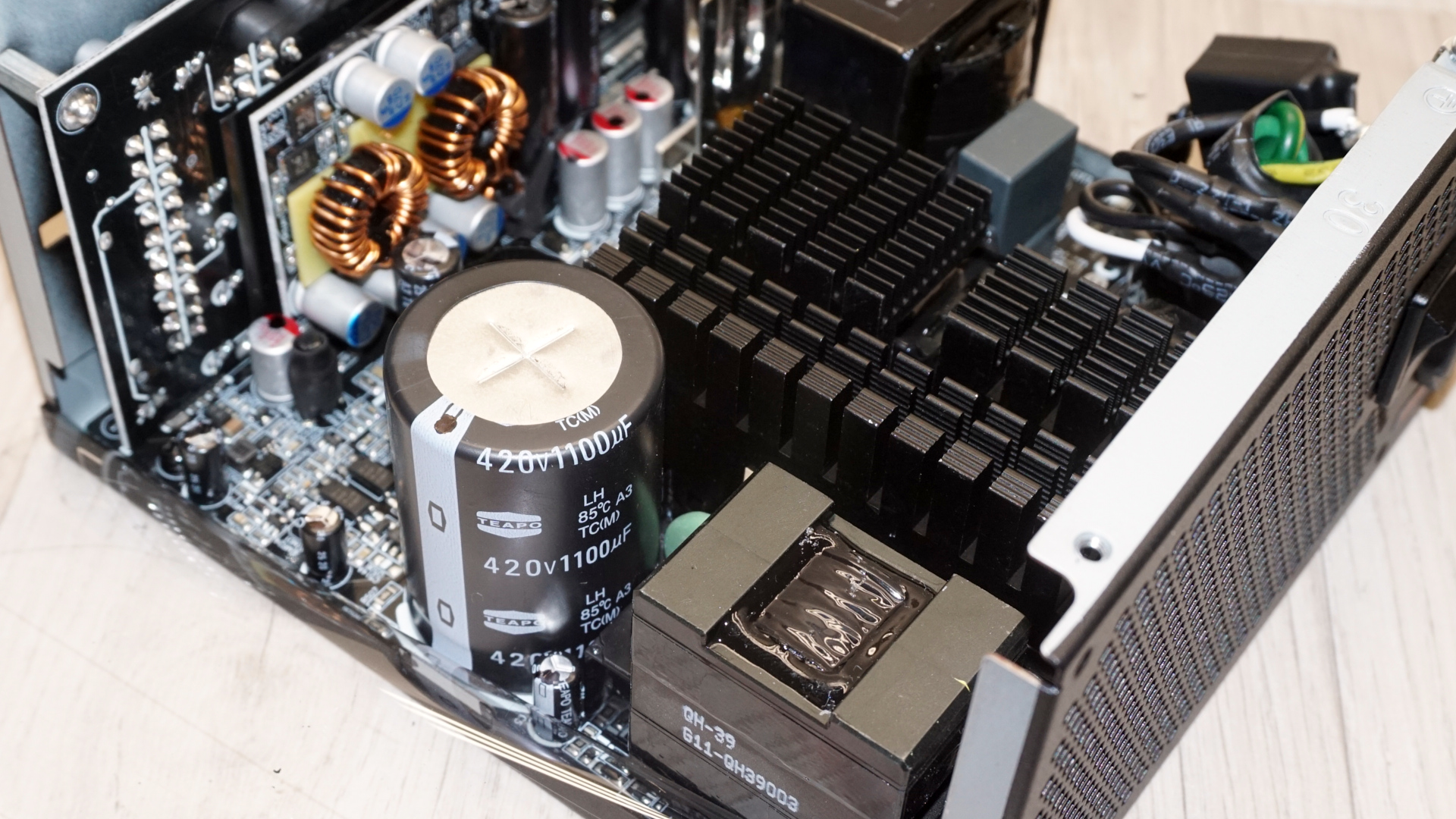

The APFC circuitry features three Vishay 105N60EF MOSFETs and one diode mounted on a sizable heatsink. Vishay represents a premier silicon manufacturer, and the selection of their components for APFC duties indicates attention to quality in critical circuit positions. One encased inductor and one massive Teapo capacitor rated at 1100 μF complete the APFC components.

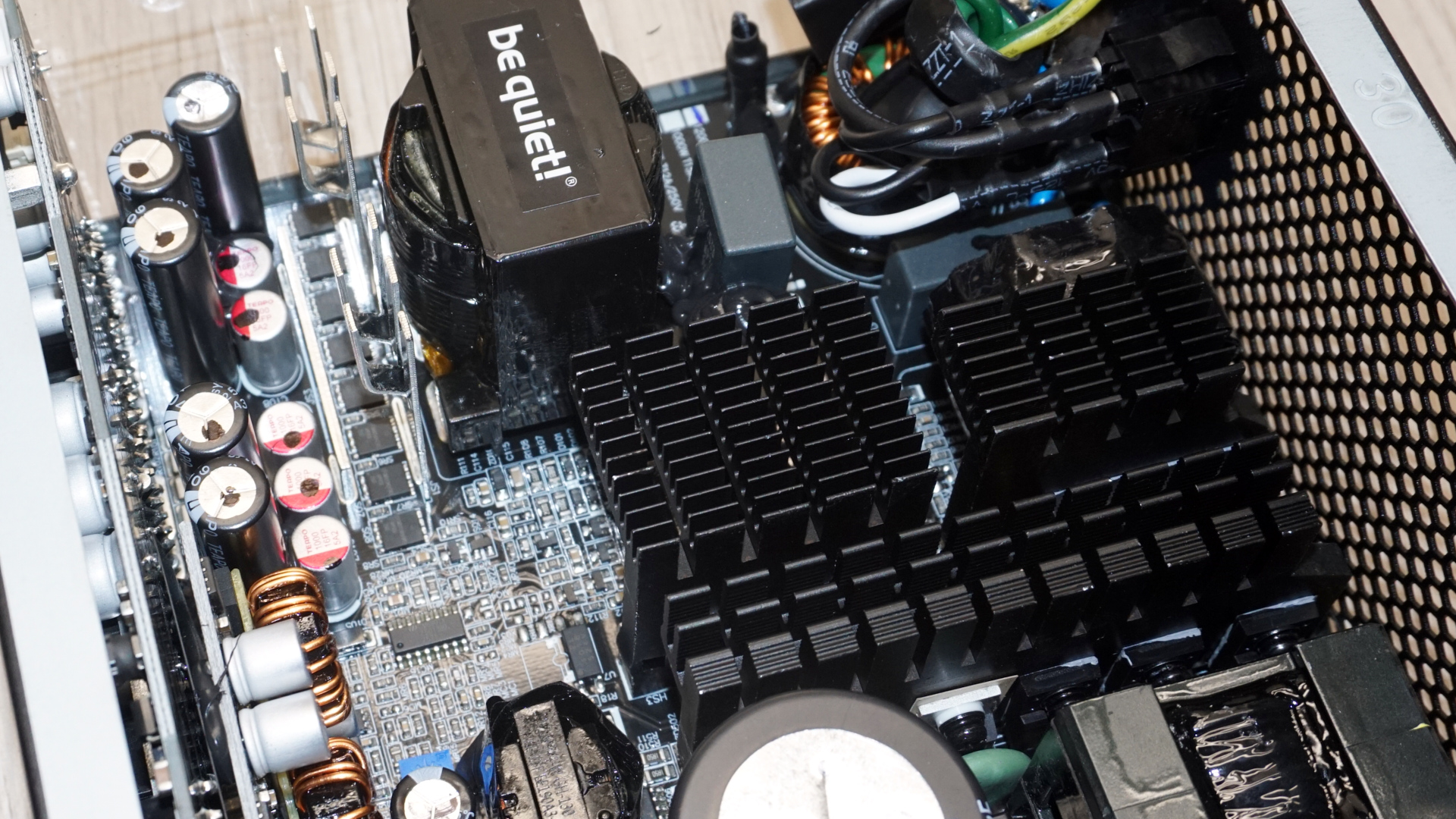

The primary stage utilizes two Infineon 60R099P6 MOSFETs forming a half-bridge topology. Infineon silicon enjoys an excellent reputation for reliability and thermal characteristics. These components occupy another substantial heatsink with considerable surface area, contributing to the unit's excellent thermal performance under load. The heatsink dimensions appear generous even for this power level.

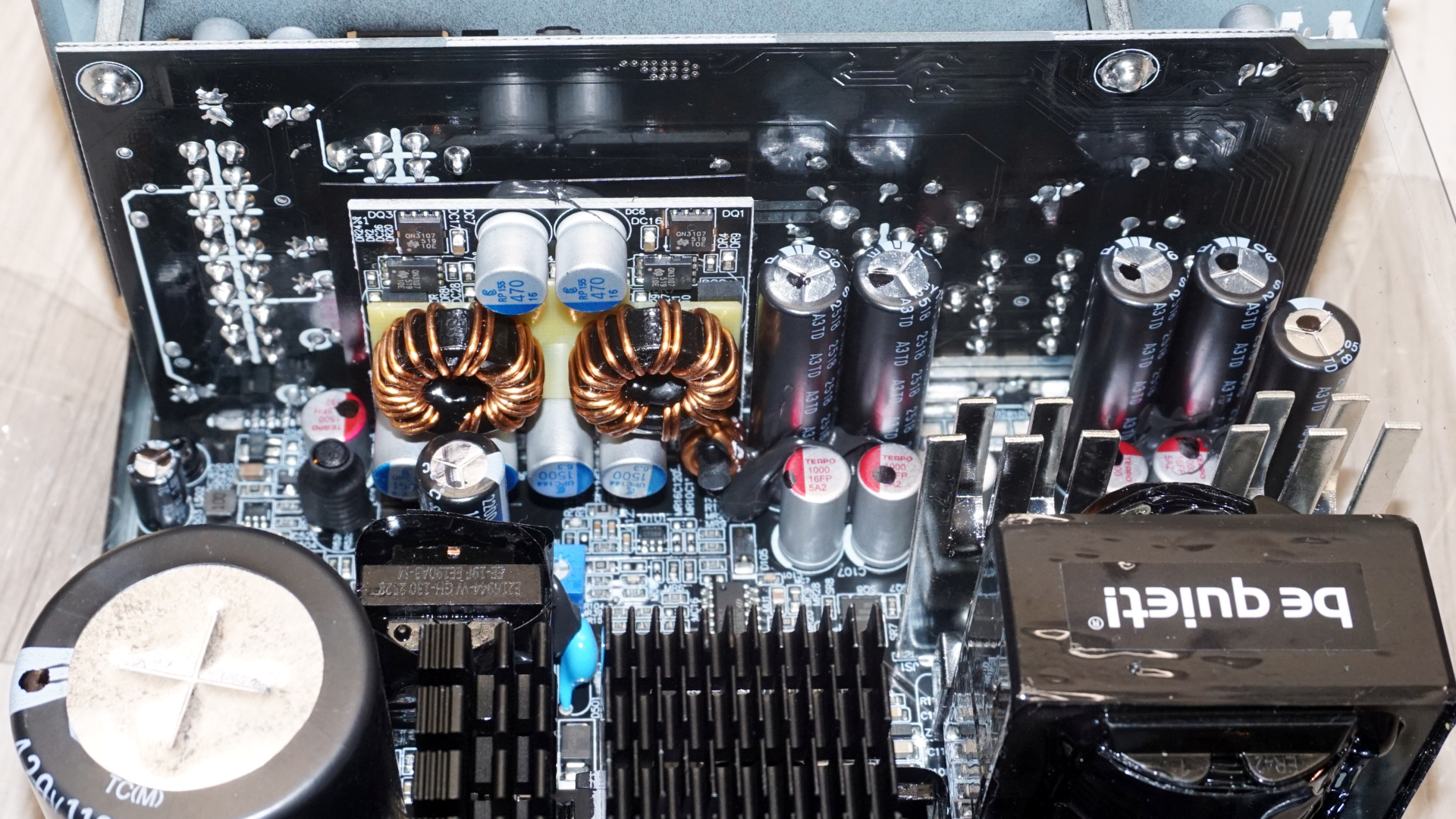

Eight CMR0130N045NS MOSFETs from a manufacturer we could not identify generate the primary 12V rail through synchronous rectification. Small PCB-mounted heatsinks are the primary source of cooling for these components. DC-to-DC conversion circuits on a vertical daughterboard generate the 3.3V and 5V rails.

Secondary side capacitors consist primarily of Teapo units, with some APAQ solid-state capacitors present. The Teapo capacitors represent the first indication of cost optimization in component selection, as Japanese manufacturers like Nippon Chemi-Con or Rubycon would represent a premium choice. However, Teapo maintains an acceptable reputation among Taiwanese manufacturers, occupying a middle ground between budget Chinese brands and premium Japanese alternatives. APAQ represents another Taiwanese manufacturer with an adequate reputation for mid-tier applications. The absence of Japanese capacitors represents a clear cost optimization decision. While Teapo and APAQ produce acceptable components for their market position, enthusiasts often prefer Japanese manufacturers for critical filtering applications. The 10-year warranty suggests Be Quiet! possesses confidence in these components' longevity despite their mid-tier positioning, though some buyers may view this choice with skepticism given the high retail pricing.

Cold Test Results

Cold Test Results (25°C Ambient)

For the testing of PSUs, we are using high precision electronic loads with a maximum power draw of 2700 Watts, a Rigol DS5042M 40 MHz oscilloscope, an Extech 380803 power analyzer, two high precision UNI-T UT-325 digital thermometers, an Extech HD600 SPL meter, a self-designed hotbox and various other bits and parts.


1

of

5

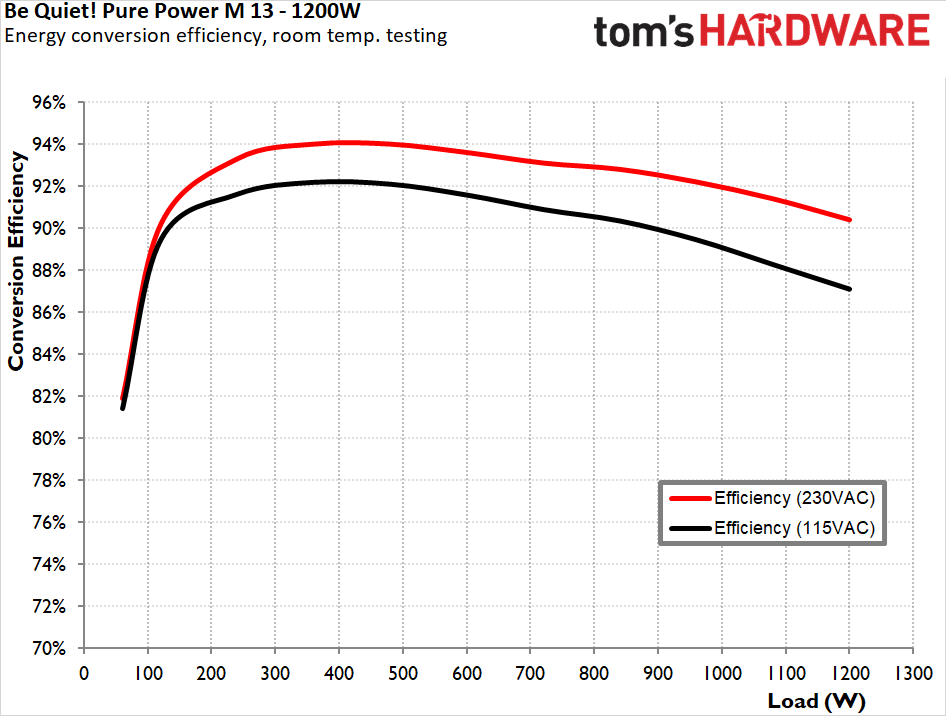

The Pure Power 13 M 1200W achieves respectable electrical conversion efficiency despite the official Gold certification labeling. With 115 VAC input, the unit demonstrates 90.3% average efficiency across the nominal load range (10% to 100% capacity). This figure increases to 92.5% with 230 VAC input. Peak efficiency occurs near 40% load, reaching approximately 94% with 230 VAC input. These figures meet Cybenetics Platinum certification requirements, creating the same curious situation observed in the 650W model where the unit carries Platinum certification from Cybenetics but Gold branding from Be Quiet!. The company apparently maintains this conservative marketing approach to preserve product segmentation with their Straight Power series, preventing internal cannibalization despite the unit's actual performance capabilities. Very low load efficiency demonstrates acceptable performance, ensuring reasonable power consumption during idle or light usage scenarios.

The thermal management strategy employs semi-passive cooling with the fan remaining stationary until the load exceeds 700W. This threshold represents approximately 60% of rated capacity, a very high activation point that prioritizes silence during moderate usage. Once operational, fan speed increases rapidly but remains below 2000 RPM even at maximum load, demonstrating excellent thermal management. Internal temperatures remain remarkably low throughout testing, validating the design approach and demonstrating the effectiveness of the heatsink and component selection.

Hot Test Results

Hot Test Results (~45°C Ambient)

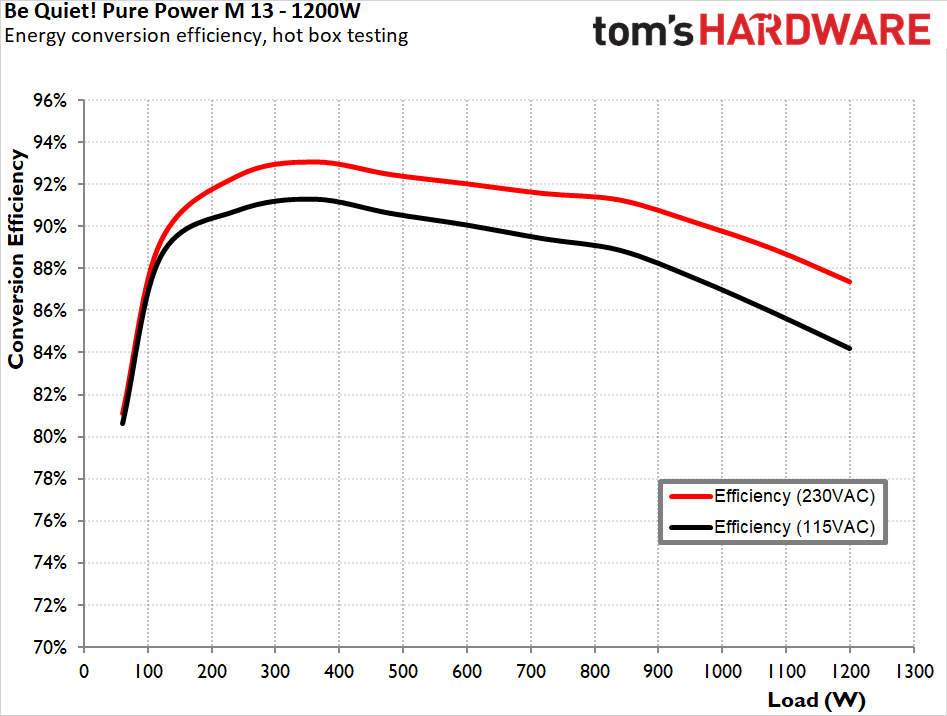

Elevated ambient temperature testing reveals a measurable efficiency degradation characteristic of all power supplies operating under thermal stress. Average efficiency drops to 88.7% with 115 VAC input and 90.8% with 230 VAC input. This represents an approximately 1.6% reduction compared to cold testing. While the unit carries a 40°C maximum ambient rating, it still managed to output its full power in 45°C test temperature, but the stress signs became evident at maximum load.


1

of

5

The semi-passive mode demonstrates slightly more aggressive activation characteristics under elevated temperatures. The fan engages when the load exceeds 550W rather than the 700W threshold observed during cold testing. Fan speed also increases substantially faster than during cold testing, though maximum speed occurs only at 100% load. Internal temperatures remain very tightly controlled, even at maximum output. The acoustic performance remains outstanding under moderate loads under these conditions, but the unit will get loud if very heavily stressed.

PSU Quality and Bottom Line

Power Supply Quality

The electrical performance demonstrates competitive characteristics within the premium segment. Voltage regulation maintains good tolerances, with the 12V rail exhibiting a 1.4% variance across the entire load range. Although this is not the premium <1% we are used to from premium units, it still is a very good performance figure from a middle-tier product. The 3.3V and 5V rails demonstrate superior regulation at 0.6% and 0.8% respectively. Ripple suppression achieves exceptional results that vindicate the unit’s market positioning. The 12V rail exhibits maximum ripple of merely 38 mV, while the 5V and 3.3V rails measure 18 mV and 16 mV maximum respectively. These figures represent approximately a third of the ATX specification limits, demonstrating filtering capabilities that substantially exceed requirements.

During our routine evaluation, we examine the fundamental protection features of all power supply units we review, including Over Current Protection (OCP), Over Voltage Protection (OVP), Over Power Protection (OPP), and Short Circuit Protection (SCP). The 3.3V rail triggers OCP at 138% of maximum current, while the 5V rail activates at 136%. These thresholds provide reasonable headroom for transient loads without exposing components to excessive stress. The 12V rail OCP activates at 112% and the OPP permits sustained operation up to 114% of nominal capacity before triggering shutdown - very conservative thresholds for an ATX 3.1 certified unit, suggesting the platform is operating at its edge and the company did not want to risk the unit’s reliability.

Bottom Line

The Pure Power 13 M 1200W occupies a defined position in the power supply market. CWT's platform delivers robust performance through proven design methodologies rather than innovative experimentation. This conservative approach ensures predictable behavior and reliable operation while potentially limiting differentiation beyond core electrical specifications.

The construction quality meets the baseline expectations for a unit carrying a 10-year warranty from an experienced OEM. The electrical characteristics exceed Gold-level certification requirements, with the unit featuring Platinum-level certifications from Cybenetics despite conservative marketing. The ripple suppression achieves exemplary results, delivering cleaner power than numerous higher-certified competitors. Voltage regulation demonstrates precision that benefits sensitive components and provides stable operation across varying load conditions.

The component selection may be of concern to users seeing the Pure Power 13 M as a premium product. While active components utilize quality silicon from reputable manufacturers like Vishay and Infineon, the reliance on Teapo and APAQ capacitors for filtering represents a significant compromise at $215. These Taiwanese manufacturers occupy the mid-tier segment, a choice that would be acceptable in a low cost Gold-certified unit but raises serious questions at this price point. The 10-year warranty may suggest confidence, though it equally suggests Be Quiet! understands buyers will scrutinize this decision.

Thermal and acoustic performance delivers results consistent with Be Quiet!'s brand philosophy, with the results being nothing short of exceptional. The semi-passive mode provides expected silence during light and medium loads. The controller keeps the fan entirely disabled under typical operation. Once activated, the fan will speed up fairly quickly as the load increases, making the unit audible but also keeps the internal temperatures fairly low.

The connectivity configuration represents the most damaging limitation. A single 12V-2x6 connector on a 1200W unit is a major restriction. This restriction confines the unit to single graphics card configurations, rendering a fair portion of the capacity as mere headroom rather than usable power for additional components. The four 6+2 pin connectors provide backward compatibility, though the overall connector count appears deliberately restricted.

The Pure Power 13 M 1200W targets an increasingly narrow audience, with retail pricing that currently is very high for a unit essentially marketed as mid-tier. The ATX 3.1 compliance and 1200W capacity provide future-proofing value, though the single 12V-2x6 connector is a limitation. The unit performs admirably in electrical testing, though performance alone cannot justify the pricing when alternatives exist. The value proposition of the Pure Power 13 M 1200W unit is questionable but, on the other hand, it cannot be denied that this is a very high quality product that does offer exceptional acoustics performance. A sale or reduced price would significantly improve the value proposition and make this a very reasonable choice for single-GPU premium builds.
