Render git-latexdiff between any two commits of any LaTeX project, and browse the result — on pull requests, via on-demand requests, and as a published, browsable web viewer. All the TeX tooling ships in a prebuilt Docker image; you provide only your build instructions (often none — it auto-detects).

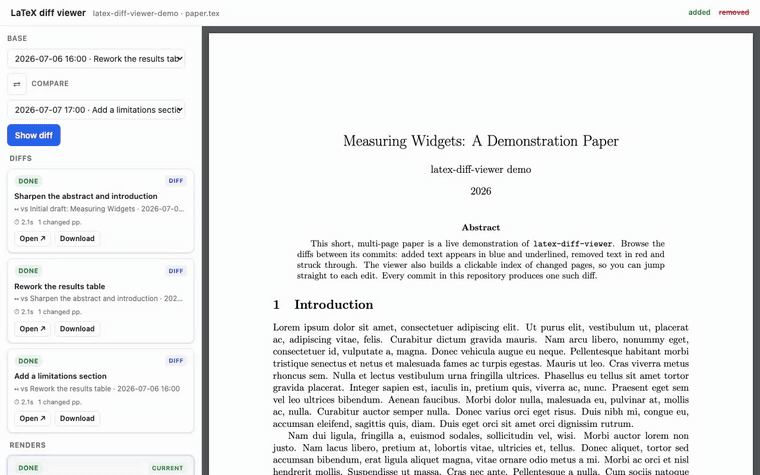

Live demo: https://alpaylan.github.io/latex-diff-viewer-demo/ — pick two commits, view the rendered diff (added text blue + underlined, removed red + struck through), and click a changed page to jump straight to it. The demo repo is a tiny paper with a curated commit history (text edits, a table/float change, a section add).

Quick start (recommended)

Get PR diffs, on-demand diffs, and a browsable viewer — all in one file.

1. Add the workflow. Copy examples/consumer.yml to .github/workflows/latex-diff.yml.
2. (Optional) add difftool.toml. Skip it if your project is a single document built with latexmk — the tool auto-detects the main .tex (the file with \documentclass + \begin{document}). Otherwise:

   main = "paper.tex"
   build_command = "make"      # only if you don't use latexmk

3. Turn on Pages. After the first run creates the latexdiff-store branch, set Settings → Pages → Deploy from a branch → latexdiff-store / (root).

That's it. Now:

The viewer (the latexdiff-store branch, served by Pages) shows all of them in one place, with a clickable changed-pages index — automatically, no config.

What it looks like

PR comment (the diff renders in the viewer; the artifact is just a fork-PR fallback):

📄 LaTeX diff

✅ Built a1b2c3d..e4f5a6b — 2 changed page(s).

View the diff ↗ · or download the latex-diff artifact from the run.

Issue request — a single comment that transitions in place:

🔧 Building diff v1..HEAD… Follow along in the workflow run ▸.

…then, when it's done (and the issue auto-closes):

📄 Built v1..HEAD — 2 changed page(s). View it here: https://you.github.io/repo/?diff=v1..HEAD

Viewer on mobile — full-screen PDF (rendered with PDF.js so it works on iOS), with slide-in drawers:

┌──────────────────────────┐
│ ☰ Diffs        Changes(2) │
├──────────────────────────┤
│                          │
│     diff PDF (canvas)    │
│     pinch · scroll       │
│                          │
│                [−][⤢][+] │
└──────────────────────────┘
  ☰ Diffs   → picker + diffs/renders drawer
  Changes(2) → drawer; tap a page to jump

How it works

   PR ──────────┐   push ─────────┐   issue "latexdiff a..b" ──┐
                ▼                  ▼                            ▼
          pr-diff.yml        store-seed.yml               issue-diff.yml
                └──────── store-add / store-seed ──────────────┘
                                  │  (append, idempotent, one concurrency group)
                                  ▼
                 latexdiff-store branch  =  manifest.json + PDFs + viewer
                                  │  (served by GitHub Pages, branch source)
                                  ▼
                  browsable viewer  ·  ?diff=a..b deep links

Everything appends to one store branch via the same idempotent store-add, so PR, push, and on-demand diffs coexist in a single viewer. The changed-pages index is float-aware: each change's page is recorded at shipout (via zref-abspage), so a changed table or figure points to the page it actually lands on — not the source line. (GitHub artifacts can't power a static viewer — they need auth and expire — which is why the store lives in a branch.)

Configuration (difftool.toml)

All keys optional; a JSON difftool.json with the same keys also works.

Local interactive viewer (no CI)

Point it at any repo — nothing to copy in:

git clone https://github.com/alpaylan/latex-diff-viewer && cd latex-diff-viewer
PYTHONPATH=src python3 -m latexdiff_viewer.server --repo /path/to/your/paper
# -> http://127.0.0.1:8765   (pick Base/Compare, Generate diff)

Or from the Docker image, against the current directory:

docker run --rm -it -p 8765:8765 -v "$PWD:/repo" -w /repo \
  ghcr.io/alpaylan/latex-diff-viewer:v1 serve --host 0.0.0.0

Needs python3, git-latexdiff, latexmk, and a LaTeX engine on PATH — or just use the Docker image, which has them.

Alternatives

• Artifact only (no Pages). Use the composite action directly for a PR comment + a downloadable PDF, without the store viewer:

  - uses: alpaylan/latex-diff-viewer@v1
    with: { config: difftool.toml }

  Inputs: config, main/build_command/build_dir/latexdiff_options/assets (overrides), base/head, full, comment, artifact_name, image. Outputs: diff_pdf, full_pdf, changed_pages.
• Pre-generated Pages. pages.yml deploys a fresh site via actions/deploy-pages (Pages source: GitHub Actions). Simpler, but no on-demand requests, and it can't coexist with the store viewer (one Pages source per repo).

CLI

The Docker image's entrypoint (also python3 -m latexdiff_viewer.cli):

latex-diff-viewer build-diff  --old A --new B -o out/diff.pdf   # JSON + changed pages
latex-diff-viewer build-full  --commit HEAD   -o out/full.pdf
latex-diff-viewer store-add   --old A --new B --store site      # append a diff to a store
latex-diff-viewer store-seed  --store site                      # append recent diffs + a full render
latex-diff-viewer serve       --port 8765                       # local interactive UI

Development

docker build -t ldv:test .

selftest.yml builds the image and exercises the CLI against a two-commit sample in tests/sample-project/; docker-publish.yml pushes the image to GHCR on a v* tag.

License

This project's own code is MIT. The Docker image bundles git-latexdiff (permissive/BSD), latexdiff and latexmk (GPL), and TeX Live (mixed), each under its own license, unmodified — see THIRD-PARTY-NOTICES.md.
