Introduction

If you're getting into data science, data analytics or business intelligence, you've probably heard of Power BI. Power BI is a powerful data visualization tool developed by Microsoft that allows you to turn raw data into interactive dashboards and reports.

But you only make Power BI powerful by feeding data into it. One cannot work perfectly without the other and that`s where SQL databases come in handy.

Businesses connect Power BI directly to their databases to analyze live or updated data.

In this article, we will go through:

• Connecting Power BI to a local PostgreSQL database
• Connecting Power BI to an Aiven PostgreSQL database
• Loading and modeling data
• And lastly why SQL is essential when visualizing with Power BI

Connecting Power BI to a Local PostgreSQL Database

Let’s assume you already have your PostgreSQL database set up with tables like:

• customers
• products
• sales
• inventory

Step 1: Open Power BI Desktop

Launch Power BI Desktop.

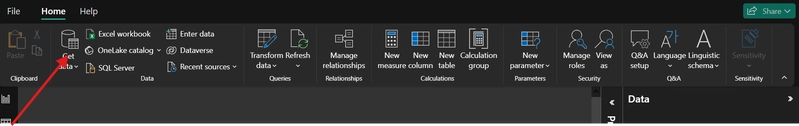

Step 2: Click “Get Data”

From the Home ribbon: Click Get Data

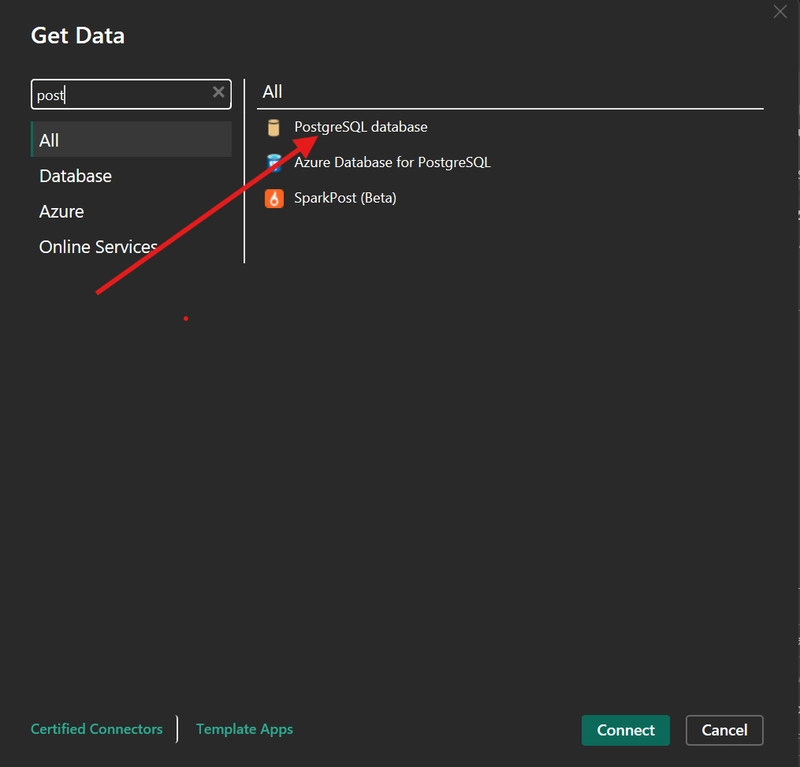

Step 3: Select PostgreSQL Database

Search for PostgreSQL Database and select it.

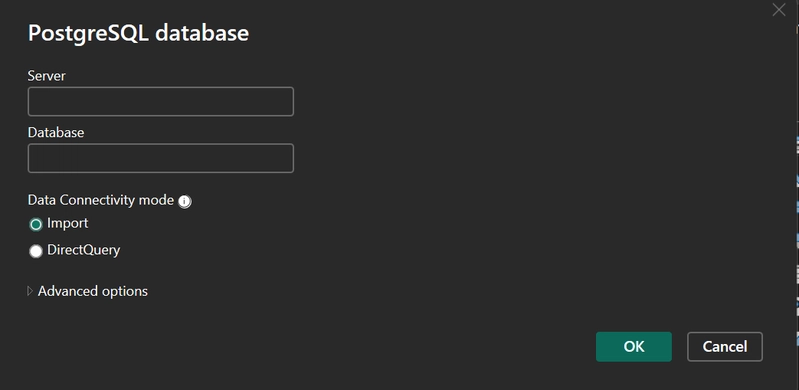

Step 4: Enter Connection Details

• Server: localhost
• Database: your database name (e.g. assignment)

Click OK

Step 5: Enter Credentials

• Username (e.g. avaadmin)
• Password

Choose Database authentication

Step 6: Load Tables

You’ll now see your tables:

• customers
• products
• sales
• inventory

Select all and click Load

Connecting Power BI to Aiven PostgreSQL (Cloud)

Step 1: Get Connection Details from your Aiven account

From your Aiven dashboard, collect:

• Host
• Port
• Database name
• Username
• Password

Step 2: Download SSL Certificate

Ensure that SSL = require
Download the CA certificate file (.pem).

SSL ensures:

• Data is encrypted
• No one can intercept your connection
• There is secure communication between Power BI and the database

Step 3: Connect in Power BI

We go back to Power BI:

• Server: host:port Example:

plaintext
mydb.aivencloud.com:12345


• Database: your database name Example defaultdb

Step 4: Advanced Options (SSL)

In some setups, Power BI may require:

• Enabling SSL mode
• Referencing the certificate file

Step 5: Authenticate and Load Data

Use your Aiven credentials, connect and proceed to Click Load

Loading and Modeling Your Data

After loading:
Assume these is your tables,

• customers
• products
• sales
• inventory

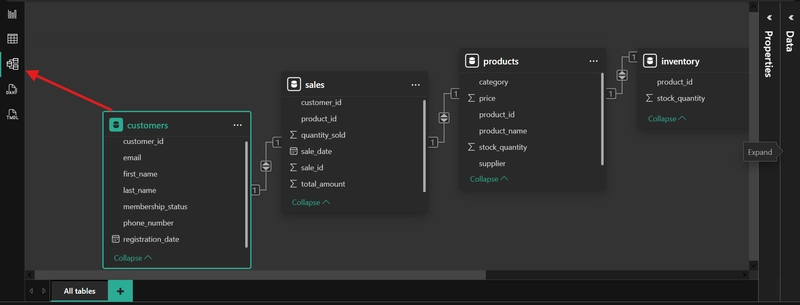

Power BI will show them in the Model view

In the above tables if you select a customer, Power BI can show:

• Their purchases
• Total spending
• Products bought

Understanding Data Modeling

Think of data modelling like this:

• Customers -> Who buys
• Products -> What is sold
• Sales -> the transactions that happened in between
• Inventory -> What’s in stock that available to be sold

The sales table acts as the bridge connecting everything.

This is called a star schema, and it’s widely used in analytics.

Importance of SQL for Power BI Analysis

Power BI is a great visualization tool but it is SQL that makes it more powerful.

Importance of SQL:

• Retrieve data efficiently
• Filter large datasets
• Perform aggregations (SUM, AVG, COUNT)
• Clean and prepare data before visualization

Example from your dataset:

sql
SELECT customer_id, SUM(total_amount) AS total_spent
FROM sales
GROUP BY customer_id;

This helps you:

• Identify top customers
• Build dashboards faster

Real-World Use Case

Using your tables:

• Find top-selling products
• Analyze customer spending behavior
• Track inventory vs sales

• Build dashboards:

  • Sales trends
  • Customer segmentation
  • Product performance
