I keep running into the same Meta-ads UTM setup at startups: utm_source=meta. Once Meta rebranded, this looks natural — except meta is not in GA4's official source list, so the campaign falls into Referral instead of Paid Social. The monthly report then shows "Paid Social dropped sharply" when really the classification just fell off.

UTMs look fire-and-forget but they aren't. The moment you put a value GA4's classification logic doesn't recognize, the channel grouping is meaningless from that point on. Below is the short version of the rules I wish I'd known earlier, plus the 4 failure patterns I keep seeing in production EC accounts.

TL;DR

1. There are 5 UTM parameters; source / medium / campaign are required. All values lowercase, hyphen-separated
2. 4 patterns break GA4 channel grouping: ① values not in the official list, ② case-sensitivity drift, ③ medium=social + source=facebook OR-condition collision, ④ UTM stripped through redirects / referrer policy
3. Use Campaign URL Builder, not hand-typed URLs. Verify in DebugView and Realtime before launch
4. UTMs identify the source, not the revenue efficiency. To compare channels, you need a session-level metric (RPS) layered on top

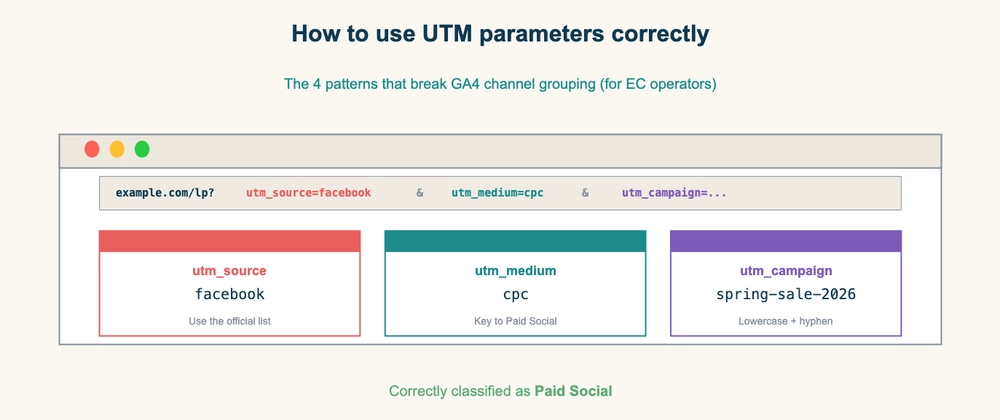

The 5 UTM parameters and what they actually map to

Five parameters, three of them required for any paid URL:

GA4 reads the combination of utm_source and utm_medium, then matches it against Google's "Default Channel Group" rules. That's how a session gets labeled Paid Search vs Paid Social vs Referral. Get the values wrong and the entire channel report stops being meaningful for that visit.

The conceptual split that prevents most problems:

• utm_source = where the visit came from (specific platform / site / service)
• utm_medium = what type it is (paid / organic / email / social / etc.)

Naming rules that prevent campaign-name fragmentation

The most frequent UTM mistake isn't a technical bug — it's inconsistency between operators. A team of four Meta-ad operators can produce facebook, Facebook, fb, and meta in the same campaign. GA4 will then split that one campaign across four rows, each showing roughly a quarter of the real number, and the row labeled meta falls out of Paid Social entirely.

Three rules eliminate most of this:

1. Always lowercase. GA4 stores utm_source case-sensitively. Facebook and facebook are tracked as separate sources
2. Hyphen-separated, never spaces. spring sale 2026 becomes spring%20sale%202026 after URL encoding, and that's exactly what GA4 displays in the campaign name field
3. Generate URLs via Google's Campaign URL Builder, not by hand. This structurally prevents whitespace, full-width characters, and typos

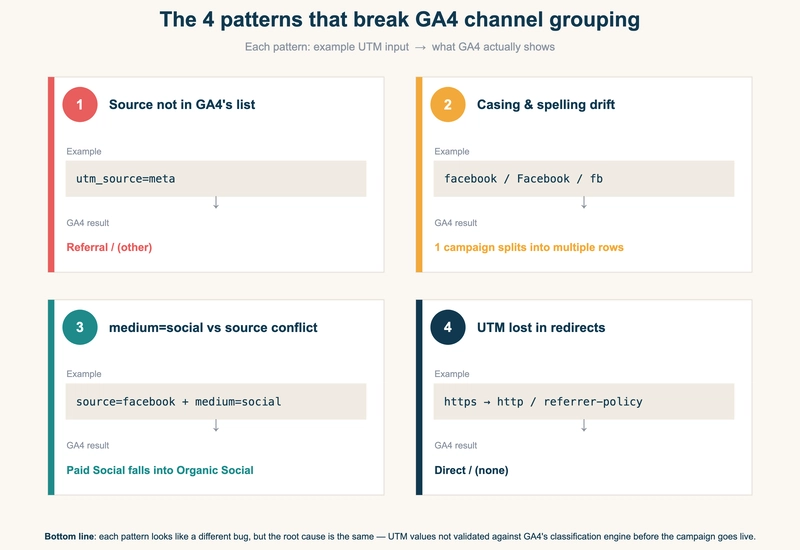

The 4 patterns that break GA4 channel grouping

When UTMs are set but the GA4 channel report doesn't show traffic in the intended channel, the cause almost always falls into one of these 4 patterns.

Pattern 1: utm_source value not in GA4's official source list

GA4 channel classification matches utm_source values against Google's "Default Channel Group Source Categories" list, which contains roughly 820 source names as of April 2026. facebook maps to SOURCE_CATEGORY_SOCIAL, google to SOURCE_CATEGORY_SEARCH, youtube to SOURCE_CATEGORY_VIDEO, and so on.

Use a value not in the list (the classic example: utm_source=meta) and the traffic ends up in Referral or (other). Lock major sources to: google / yahoo / bing / facebook / instagram / twitter / line / youtube / tiktok. If you must use something outside the list, define a custom channel group in GA4 instead.

Pattern 2: case sensitivity and operator-driven naming drift

Even when everyone uses values from the list, mixing facebook / Facebook / fb in the same campaign splits it across multiple rows. Document the naming convention once, store it where every operator references it, and make Campaign URL Builder the only sanctioned URL-generation flow. Two-step approval before going live catches the rest.

Pattern 3: medium/source combination collides with GA4's regex

Less obvious. GA4's Paid Social requires both utm_source matching the social-source list AND utm_medium matching ^(.*cp.*|ppc|retargeting|paid.*)$. But Organic Social is defined with an OR condition: utm_medium matches social / social-network / social-media / sm OR utm_source matches the social list.

This means utm_source=facebook + utm_medium=social — a seemingly natural combination — gets classified as Organic Social purely on the medium match. Paid revenue ends up labeled organic, the Paid Social report goes empty, and ad ROAS is understated. Fix: lock utm_medium=cpc for paid social channels (Meta, X, LINE), and reserve utm_medium=social exclusively for organic posts.

Pattern 4: UTM lost through redirects, referrer policy, etc.

The UTM is set correctly at launch but gets stripped before the user lands on the LP. Common causes:

• Some URL shorteners drop query strings on redirect
• HTTPS → HTTP redirects strip the referrer (and the UTM with it)
• <meta name="referrer" content="no-referrer"> on the LP makes referrer-based source detection impossible
• In-app browsers (LINE, Facebook) drop referrer / UTM depending on implementation

When the UTM is gone, what was originally a paid visit ends up classified as Direct / (none) or (not set). If your Direct rate is over 30% of traffic, you almost certainly have 10–20% paid CV hidden in there.

Pre-launch checklist (this is the part most teams skip)

A bug caught after launch means losing that period's data permanently. Routinizing pre-launch verification is the single best investment in long-term report quality:

• [ ] All three of utm_source, utm_medium, utm_campaign are set
• [ ] All values are lowercase, hyphen-separated, no spaces
• [ ] utm_source is in GA4's official source list, or a custom channel group covers it
• [ ] utm_medium resolves to the intended channel under GA4's classification logic
• [ ] URL generated via Campaign URL Builder, not hand-typed
• [ ] DebugView confirms source / medium / campaign values
• [ ] Realtime confirms classification into the intended channel
• [ ] For shortener-mediated URLs, the UTM survives to the final LP

What UTMs cannot show

UTMs identify "what this visit came from." They are not a measure of revenue efficiency. None of these questions can be answered by UTMs alone:

• Which produces higher revenue per session — Paid Social or Organic Search?
• How many times higher is email-sourced CV rate vs. paid-search-sourced?
• If the same budget was redirected to blog SEO, how would long-term revenue efficiency shift?

To answer them, you need a layer above UTMs that compares revenue per channel — sessions × CV rate × AOV decomposed per channel. I've started calling this RPS (Revenue Per Session) in my own work, and it's the second axis I always wanted next to ROAS but never had cleanly in GA4. ROAS for ad-platform efficiency, RPS for whole-site efficiency. Two axes, much more confident budget decisions.

UTM hygiene is the prerequisite for computing this correctly. Broken UTMs distort channel classification, which corrupts both the denominator (sessions) and the numerator (revenue). The naming rules and 4 failure patterns above have to be in place first — only then does channel-level revenue efficiency become measurable.

What I'd love to hear in the comments: what's the most surprising UTM-related incident you've had to fix? My own version of this story was a Paid Social report that "dropped" 60% in a month — turned out one operator had switched to utm_source=meta.
