A practical guide

In the first part, I covered the two initial signals to diagnose that something is wrong:

• Latency
• Traffic

Those two alone explain a surprising number of production incidents. But they don't explain everything. Rising latency tells you a problem is developing. Traffic tells you what the system is dealing with.

I mentioned two more signals:

• Errors
• Saturation

These two tell you something more important - whether the system is approaching failure. And this is where monitoring becomes truly operational. I will cover those two signals in this blog. Let us start with Errors.

Errors - The most misunderstood signal

Many teams think error monitoring is simple. It is about counting failures. Raise an alert when they increase. In practice, error metrics are rarely that straightforward.

The first mistake teams make is treating all errors as equal. They are not. Some errors are expected and some errors are harmless. Others indicate an outage in progress. Monitoring must differ between them. Otherwise alerts become noise. And noisy alerts get ignored, which defeats the entire purpose. I have seen production systems where engineers simply muted error alerts because they fired every few hours.

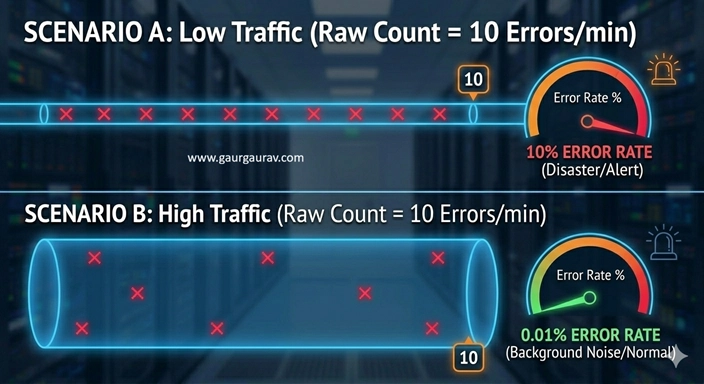

Error rate is more important than error count

Raw error counts are misleading. What do you think - ten errors per minute might be catastrophic or irrelevant?

It depends on traffic. If you process:

• 100 requests per minute → 10 errors = disaster
• 100,000 requests per minute → 10 errors = background noise

Error rate is what matters. A simple production alert looks like this:

This works far better than static thresholds because it scales automatically with traffic.

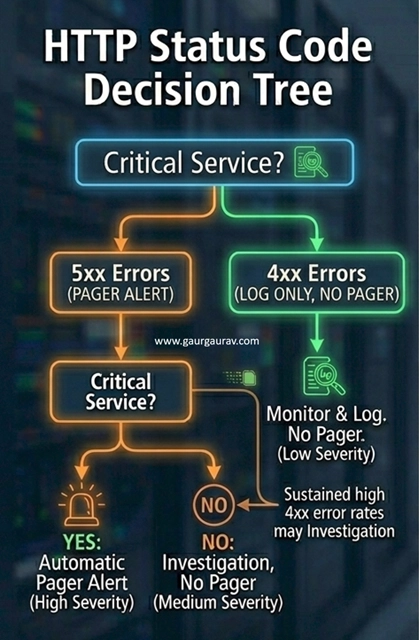

4xx vs 5xx - Critical distinction

One of the most common monitoring mistakes is combining 4xx and 5xx errors. They represent completely different problems. Let me talk through them.

5xx errors

These indicate system failures:

• Exceptions
• Timeouts
• Dependency failures
• Resource exhaustion

5xx errors should almost always trigger alerts. They mean the system is failing users.

4xx errors

These usually indicate client behaviour:

• Invalid input
• Authentication failures
• Missing resources

Most of the time, 4xx errors should not page engineers. But they should still be monitored. Their spikes often reveal integration problems.

• Partner systems misbehaving
• Clients sending unexpected requests
• Sometimes bots discovering your APIs

I once saw a system where 40% of traffic suddenly became 401 responses. Nothing was broken in my service. A client service had deployed a change with an incorrect token configuration. The service was healthy. The integration was not. Without separate 4xx monitoring we would never have noticed.

Error budget thinking

Once services mature, error monitoring becomes less about incidents and more about error budgets.

Instead of asking "Did we have errors?" You ask “Did we exceed acceptable failure levels?”
Example SLO:

• 99.9% success rate

That allows:

• 0.1% failure

Error budgets prevent overreaction to minor fluctuations. Without them, teams end up firefighting dashboards instead of protecting user experience. In most post-mortems, latency and errors are symptoms. Saturation is usually the cause. Let us move to the next indicator – saturation.

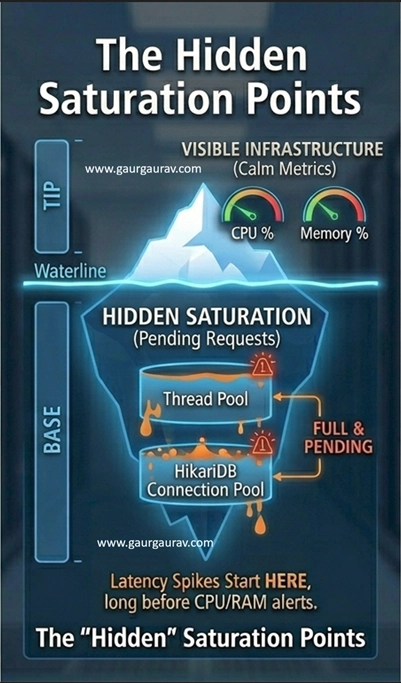

Saturation — Where failures actually begin

If latency is the early warning signal, saturation is the root cause signal. Most production outages start with a resource limit somewhere. I am not necessarily talking about CPU or memory. I am talking about less obvious resources like thread pools, connection pools, queue consumers, file descriptors, and rate limits.

These limits quietly fill up until requests start waiting and then timing out. Then they start failing. By the time error rates increase, saturation has usually been happening for a while.

CPU and Memory - Necessary but not enough

Infrastructure metrics still matter. They just don't tell the whole story.
Monitor:

• CPU utilization
• Memory usage
• Disk I/O
• Network throughput

Example:
rate(container\_cpu\_usage\_seconds\_total[1m])

and:
container\_memory\_usage\_bytes

The Metrics that break systems most often

As I mentioned in my previous blog, you need effective metrics. In this section I will list a few metrics that can prove useful.

Connection pool usage.

Monitor connection pool usage. When a connection pool fills up - requests queue internally, latency increases, timeouts appear, and errors follow.
In this scenario CPU can still be 30%. Memory can still be healthy. The service still looks "green." Except users are waiting seconds for responses.

Example — Monitoring a connection pool

Micrometer automatically exposes Hikari metrics:

If pending connections increase steadily, saturation is approaching and action is needed.

Kubernetes saturation signals

Restarts indicate instability.

CPU throttling causes latency spikes even when CPU usage looks normal. That one surprises a lot of teams.

Dependency Metrics — The missing visibility layer

Most services are only as reliable as their dependencies – databases, caches, APIs, queues, and third-party integrations.

When dependencies slow down, your service slows down. But if you only monitor your service, you won't see the cause. You only see the symptoms. Dependency metrics close that gap. Without them, incident investigations turn into guesswork.

Downstream Latency Metrics

Every external call should have a latency metric. Even if the dependency is "reliable." Especially then.

Simple example:

Timer.Sample sample = Timer.start(registry);

Response response = paymentClient.process(request);

sample.stop(
 registry.timer("payment.api.latency")
);

During incidents, this metric often points directly at the problem.

Dependency error metrics

Track dependency failures separately.

Database metrics — Where many incidents begin

Databases rarely fail suddenly. They slowly degrade. I have seen these follow a pattern. First queries take slightly longer. Then pools begin filling. Then request latency increases. Then timeouts appear.

The progression is almost always the same. Which means the signals are predictable.

Query latency

Slow queries often trigger cascading failures.

Connection pool usage

Database pools deserve dedicated dashboards.

Pool exhaustion is a classic outage pattern.

Lock contention

Lock waits produce unpredictable latency spikes, especially under load.

Important metrics include:

• Lock wait time
• Deadlocks
• Blocked queries

These metrics explain incidents that otherwise look random.

Queue metrics — The early warning

Event-driven systems fail differently and have a different pattern. Instead of request latency increasing, queues begin filling. Messages accumulate silently. Until delays become visible. Queue metrics often detect issues earlier than service metrics.

Queue Depth

If depth increases steadily, it means something is wrong.

Either:

• Producers too fast
• Consumers too slow
• Dependencies degraded

Queue depth is one of the most reliable early warning signals in distributed systems.

Consumer Lag

For streaming systems, lag is critical.

Lag increasing means consumers cannot keep up. Eventually processing delays impact users.

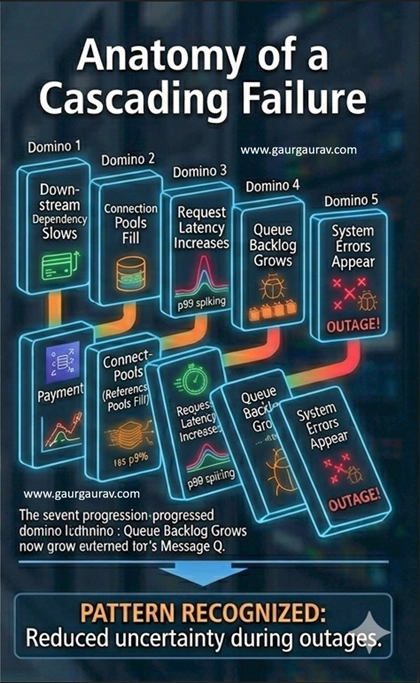

Pattern worth recognizing

After enough incidents you start recognizing patterns. One of the most common looks like this:

• Dependency latency increases
• Connection pools fill
• Request latency increases
• Queues grow
• Errors appear

When you see that progression on dashboards, you already know the story before investigation begins. Good monitoring turns incidents into recognizable shapes. And recognizable shapes reduce stress during outages.

Experienced engineers eventually learn that most outages are not mysterious. They follow patterns. Because uncertainty is what makes incidents difficult.

Not complexity.

I hope you find these useful, I will continue the discussion in the final blog of this series.
